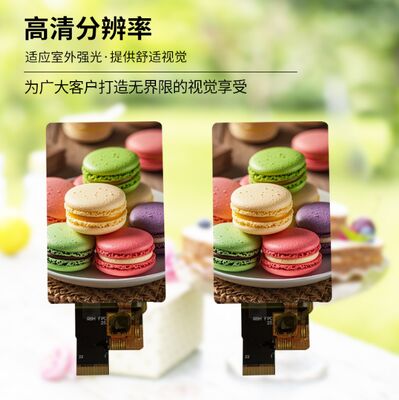

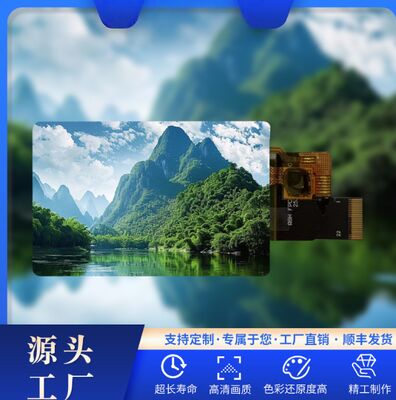

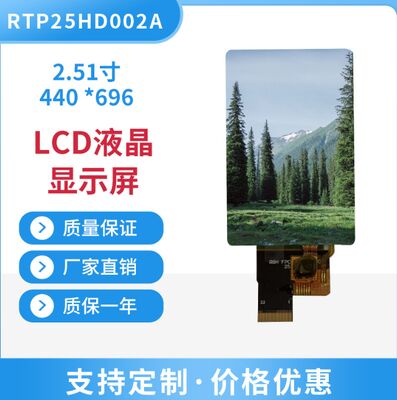

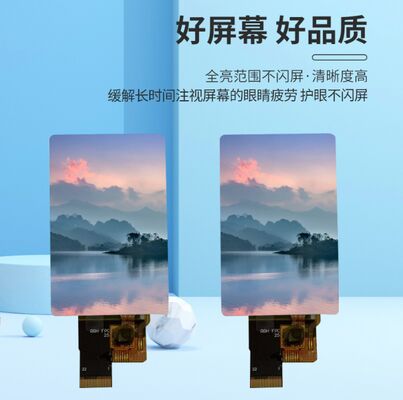

2.51 Inch IPS LCD Display Touch Panel with 440 (RGB) x 696 Resolution and 850 cd/m2 Brightness MIPI Interface
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHXTP25HD002A |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | RGB LCD | Display Size | 2.51 Inch |
|---|---|---|---|
| Resolution | 440RGB X 696 | Brightness | 850 Cd/m² |
| Interface | MIPI | Driving IC | ST7701SN-G5-1 |
Product Description
2.51" IPS LCD Display Touch Panel with 440 (RGB) x 696 Resolution MIPI interface and 850 cd/M2 brightness
Product Specifications
Technical Drawing
TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT Structure
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Founded: 2009
- Location: Hubei, Enshi
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- QC team: 15% of workforce
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternative technologies
- Size Flexibility: Available in sizes from small handheld to large panels
- Backlighting: Typically uses LED backlight systems
- Versatility: Wide range of applications across industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratio
- Backlighting increases power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to some alternatives
