7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX070BAHA-38CP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology Lcd Modules Name Lcd Panel
Size 7" Resolution 1024 X 600
Brightness 420cd/m2 Drive IC HX8282+HX8696
View Angle Free Interface 40 PINS LVDS
High Light

7 inch TFT touch screen


TFT touch screen 1024x600


420 CD/M2 tft touch

Leave a Message
Product Description

ESHX070BAHA-38CP  is  7 inch  TFT module with touch panel ,1024x600  Resolution,  40 PINS LVDS interface, brightness is 420 cd/M2 TFT LCD and lcd  display Driver IC is HX8282+HX8696 and.View angle is Free


A:Product Parameter

Part No: ESHX070BAHA-38CP
Panel size 7 inch TFT
LCD type IPS
Module Size 164.90*100.00*7.40
Display Area 154.21*85.92
Number of Dots 1024 x 600
View angle ALL
Module Driver IC HX8282+HX8696
CTP Driver IC /
Interface Pins 40 PINS LVDS
LED Numbers 30PCS
Luminance 420cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP

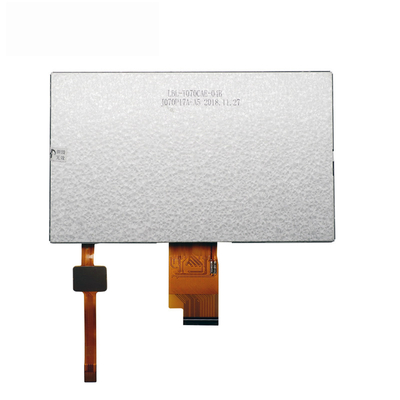

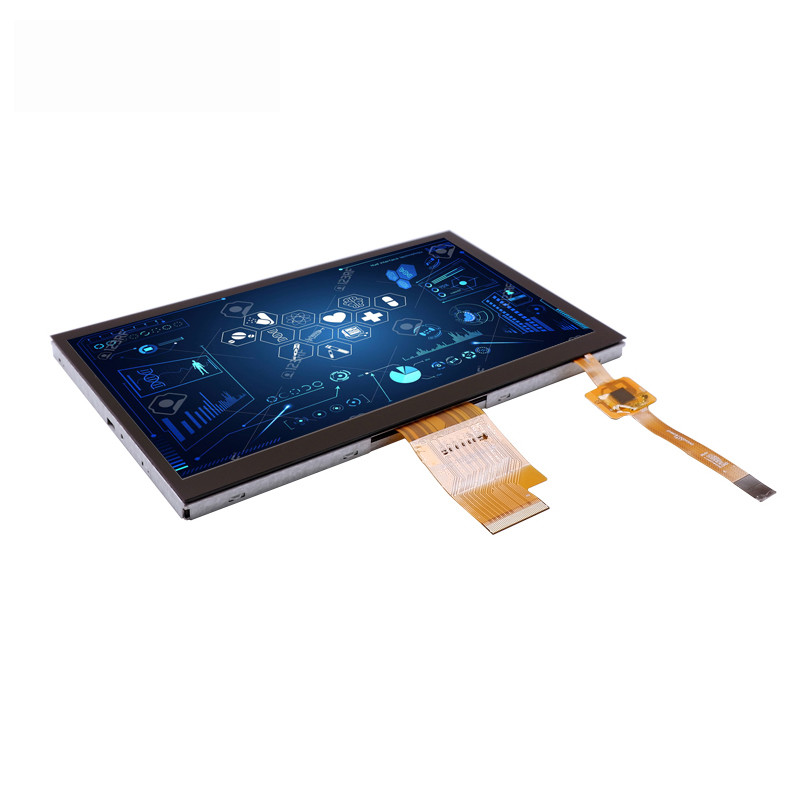

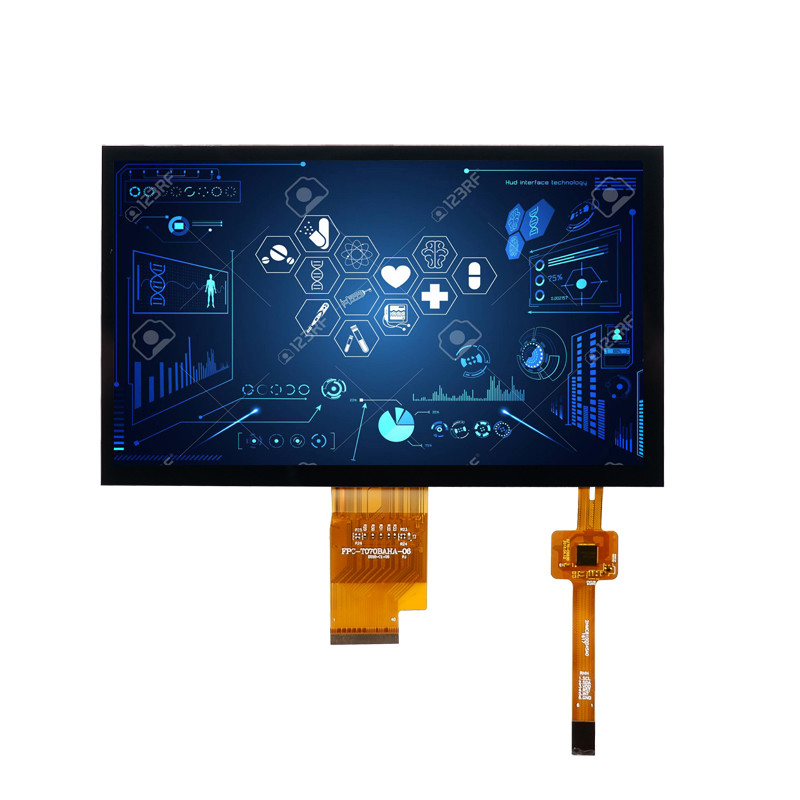

B:Product Picture

7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 0

7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 1
7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 2


7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 3

D:TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below

7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 4


TFT structure  as below

7 Inch TFT Touch Screen ,1024x600 40 PINS LVDS Interface 420 CD/M2 5


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
