10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX101BAH-09CP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology 10 Inch Lcd Name Tft Panel
Size 10.1" Resolution 1024*600
Brightness 320cd/m2 Drive IC HX8282+HX8696
View Angle 12:00 Interface 50 Pins 24bit RGB
High Light

10.1 inch tft lcd touch screen

,

tft lcd touch screen 1024x600

,

50pins tft lcd display

Leave a Message
Product Description

ESHX101BAH-09CP  is  10.1inch  TFT display with touch panel ,1024x600  Resolution,  50 PINS 24 bits interface, brightness is 320 cd/M2 TFT LCD and lcd  display Driver IC is HX8282+HX8696 and CTP IC is GT928.View angle is 12:00



A:Product Parameter

Part No: ESHX101BAH-09CP
Panel size 10.1 inch TFT
LCD type TN display
Module Size 235.00*143.00*7.25
Display Area 222.72*125.28
Number of Dots 1024*600
View angle 12:00
Module Driver IC HX8282+HX8696
CTP Driver IC GT928
Interface Pins 50 pins 24bit RGB
LED Numbers 39pcs
Luminance 320cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP



B:Product Picture

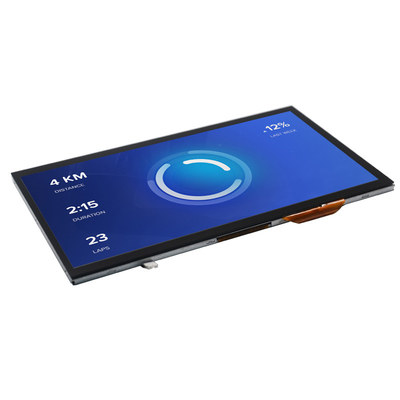

10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 0

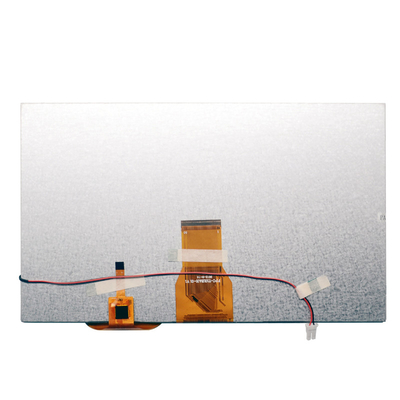

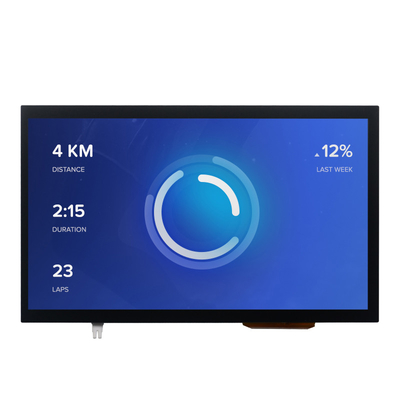

10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 110.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 2


C: Drawing


10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 3


D:TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 4



TFT structure  as below

10.1 Inch Tft Lcd Touch Screen ,1024x600 50 Pins 320 CD/M2 24bit RGB 5
