800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX050QWH-51CP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Industrial Lcd Modules Name Lcd Touch Screen
Size 5 " Resolution 800*480
Brightness 420cd/m2 Drive IC ILI6122+ILI5960
View Angle 12:00 Interface 40 PINS 24bit RGB
Highlight

800x480 Touch Screen TFT Display

,

Touch Screen TFT Display 24 bit

,

RGB 5 inch tft touch screen

Leave a Message
Product Description

ESHX050QWH-51CP  is  5 inch  TFT module with touch panel ,800x480  Resolution,  40 PINS 24bit RGB, brightness is 420 cd/M2 TFT  display and lcd  display Driver IC is ILI6122+ILI5960  and CTP IC is FT5306.View angle is 12:00



A:Product Parameter

Part No: ESHX050QWH-51CP
Panel size 5 inch TFT
LCD type TN
Module Size 120.70*75.80*5.28
Display Area 108.00*64.80
Number of Dots 800*480
View angle 12:00
Module Driver IC ILI6122+ILI5960
CTP Driver IC FT5306
Interface Pins 40 PINS 24bit RGB
LED Numbers 18LEDS
Luminance 420cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP

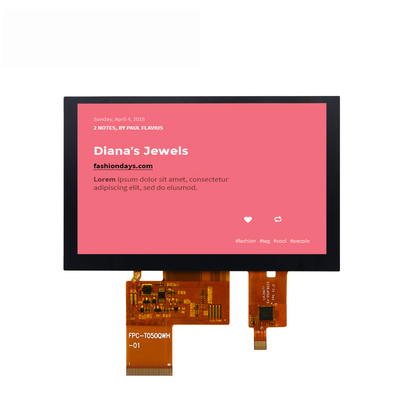

B:Product Picture



800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 0

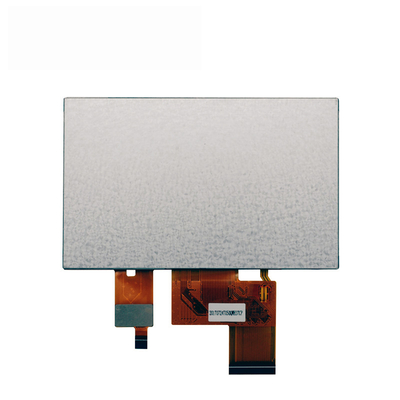

800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 1

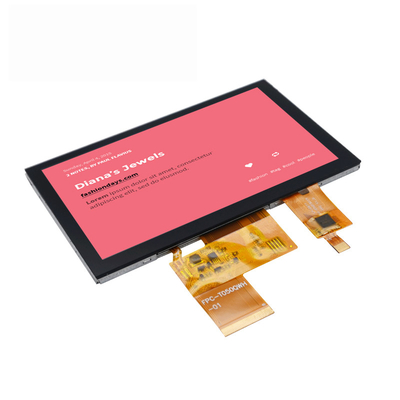

800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 2

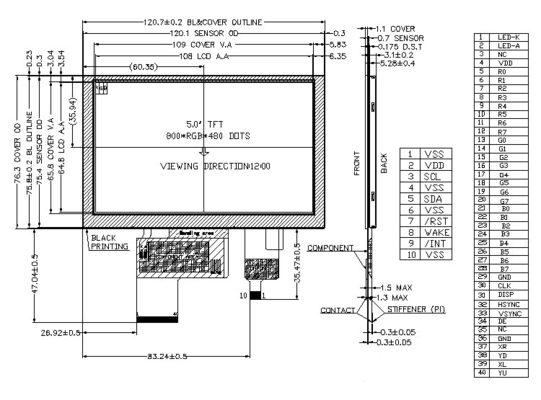

C:Drawing


800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 3




D: TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 4



TFT structure  as below

800x480 Touch Screen TFT Display 5 Inch 40 PINS 24bit RGB 420 CD/M2 5
