6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface

  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
  • 6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number GVH600005S0-GP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology 6 Inch LCD Name Tft Panel
Size 6" Resolution 720x1280
Brightness 300 Cd/m2 CTP IC FT5446
View Angle Free Interface 30 PINS MIPI
Highlight

6 inch tft touch screen display

,

tft touch screen display 720 x1280

,

lcd tft touch 30pins
Leave a Message
Product Description

ESHX600005S0-GP is 6 inch  TFT display with touch panel ,720x1280  Resolution,  30 PINS mipi interface, brightness is 230 cd/M2 TFT LCD and   CTP IC is FT5466.View angle is free



A:Product Parameter

ITEM specification
Model Number ESHX600005S0-GP
size 6 inch TFT with CTP
LCD Type Normally Black
Drive element TFT active matrix
Number of pixels 720*3RGB(H)X1280(V)
Pixel arrangement RGB stripe
Pixel Pitch (W*H) 0.10275
Active area 73.98(H) * 131.52(V)
OutlineSize(W*H*T) 84.4*150.4*3.72
Viewing direction ALL O’CLOCK
LCM Driver IC RM68200
Touch screen structure G+FF
Touch Driver IC FT5446
Touch Interface IIC
Laminating process OCA
LCM interface MIPI BIT Interface
PIN number 30
LED number 16
operating temperature -20~70
storage temperature -30~80
Luminance 300cd/m2

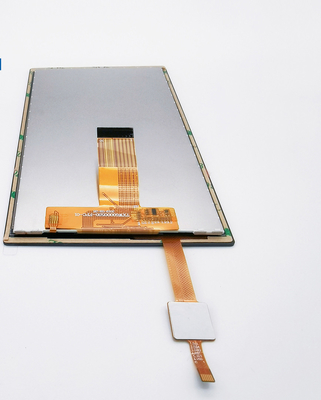

B:Product Picture

6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface 0


6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface 1

6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface 2






C: Drawing

 -----------------------------------



D: TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface 3



TFT structure  as below

6 Inch Tft Touch Screen Display， 720 X1280 30 Pins 300CD/M2 MIPI Interface 4




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
