4.3 inch tft lcd display module and touch panel 480X800 resolution MCU-TTL-RGB interface

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX43230
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology Industrial Lcd Modules Name Lcd Touch Screen
Size 4.3 " Resolution 480X800
Brightness 420cd/m2 Drive IC ILI6122+ILI5960
View Angle 12:00 Interface 40 PINS 24bit RGB
High Light

4.3 inch TFT lcd display module


480X800 resolution TFT lcd display module

Leave a Message
Product Description

ESHX050QWH-51CP  is  5 inch  TFT module with touch panel ,800x480  Resolution,  40 PINS 24bit RGB, brightness is 420 cd/M2 TFT  display and lcd  display Driver IC is ILI6122+ILI5960  and CTP IC is FT5306.View angle is 12:00


A:Product Parameter

Panel Size 4.3 inch TFT LCD Display+CTP
Module Size(mm) 61.56X104.65X3.98
Display Area(mm) 56.16X93.6
Number of Dots 480X800
View angle FREE
Interface Pins MCU-TTL-RGB
Driving IC /
Luminance 350 c/d
touch interface/driver i2c/GT1151Q

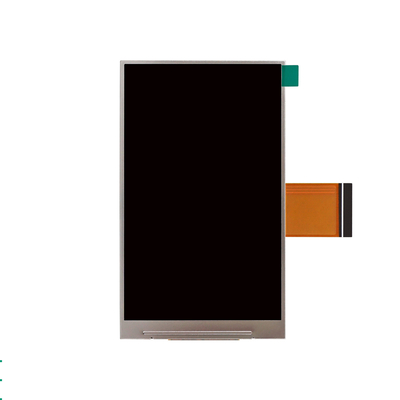

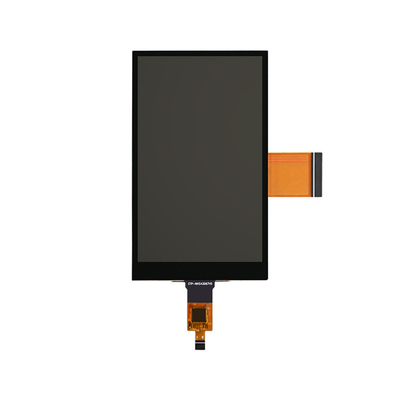

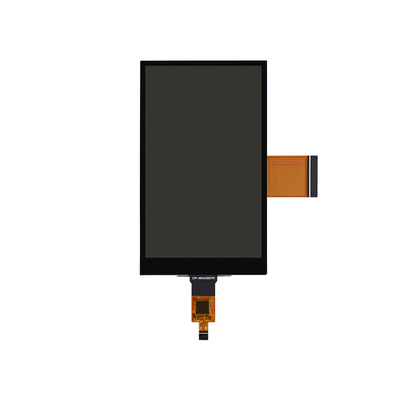

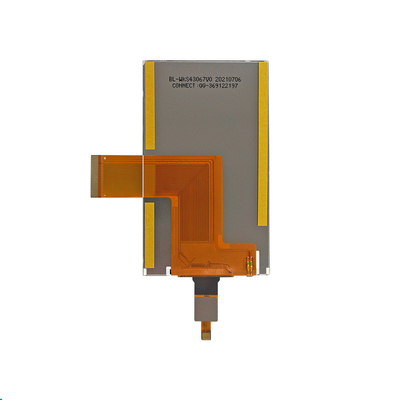

B:Product Picture

Product Picture







D: TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below

4.3 inch tft lcd display module and touch panel 480X800 resolution MCU-TTL-RGB interface 14


TFT structure  as below

4.3 inch tft lcd display module and touch panel 480X800 resolution MCU-TTL-RGB interface 15


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
