320x320 Touch Screen , TFT Display Module 3.92 Inch, 40 PINS SPI/MCU

Place of Origin China
Brand Name huaxin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX392-B4042-C
Minimum Order Quantity 1000pcs
Price negotiation
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Touch Panel Monitor Technology IPS Tft Module
Size 3.92" Resolution 320x320
Touch Panel CTP Interface 40 PINS SPI/MCU
Driving IC ILI9488
High Light

320x320 Touch Screen TFT Display Module

,

40PINS Touch Screen TFT Display Module

,

MCU Touch Screen TFT Display

Leave a Message
Product Description

ESHX392-B4042-C  is 3.92  inch tft display with touch panel , 320X320  resolution ,40 PINS SPI/MCU  driving IC ILI9488



A:Product Parameter



LCD Number ESHX392-B4042-C
product size 3.92 inch
view angle all
resolution 320x320
interface 40 PINS SPI/MCU
outline size 76.72X74.86X3.33MM
AA SIZE 71.13X69.82MM
Operating Temp: -20~70
Storage temp -30~80
driving IC ILI9488


B:Product Picture

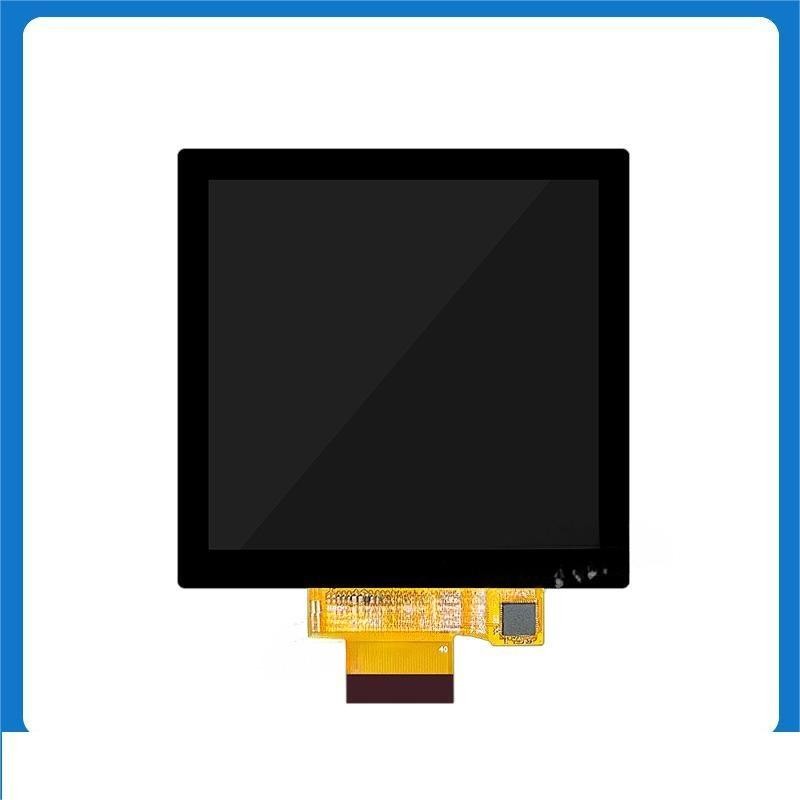

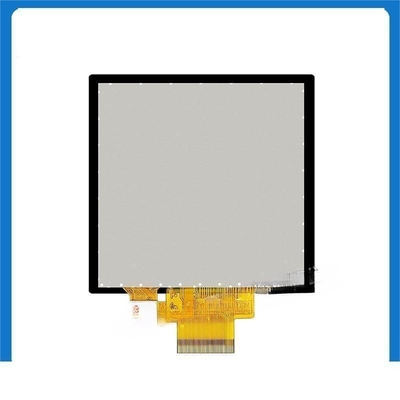

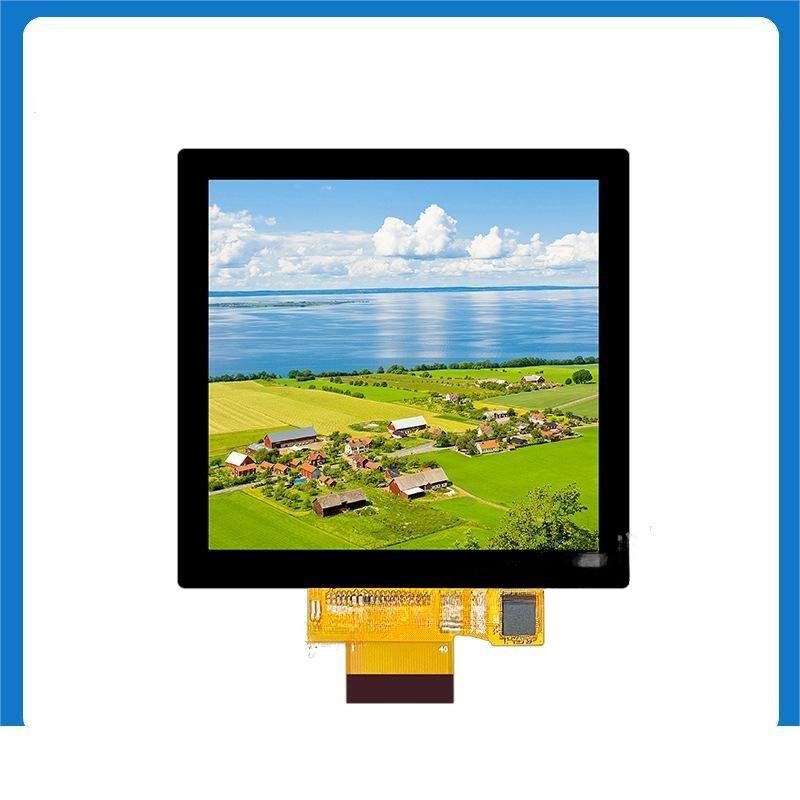

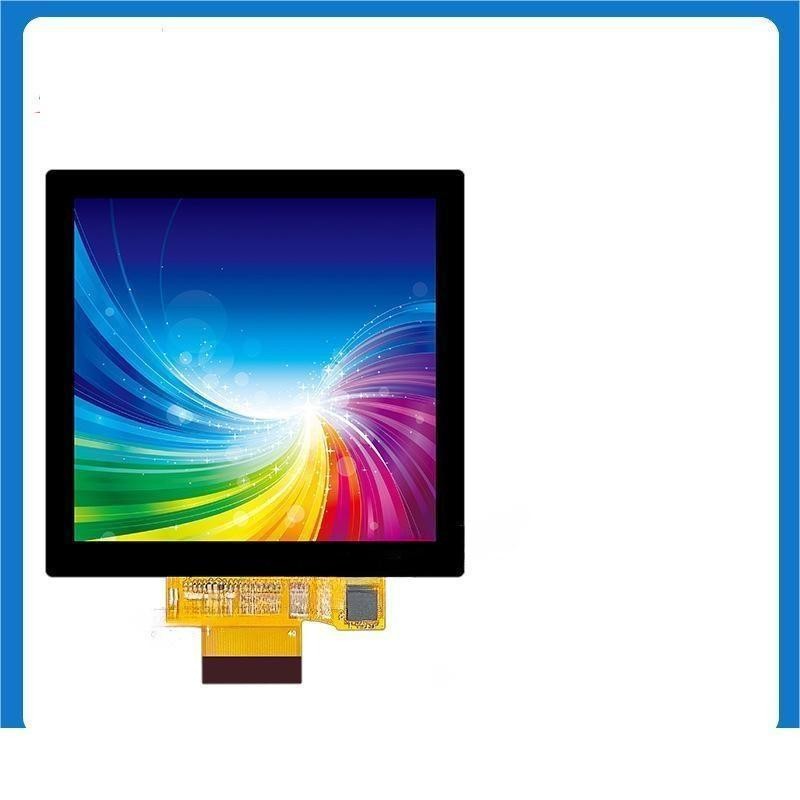

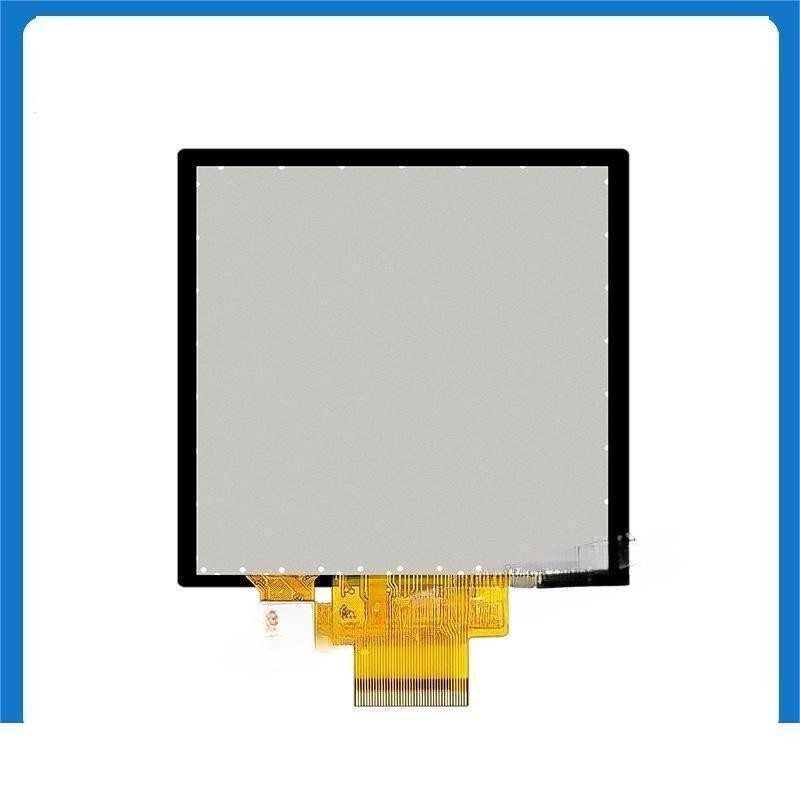

320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 0320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 1320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 2320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 3

C: Drawing

320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 4

320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 5



D:TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 6



TFT structure as below

320x320 Touch Screen , TFT Display Module  3.92 Inch,  40 PINS SPI/MCU 7




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
