5 Inch LCD TFT Display Module With Touch Panel , SPI Interface, 800X480 Resolution, 400c/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX50WV016-WCT
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT LCD Display+RTP +PCB
Size 5" Resolution 800X480
Brightness 400cd/m2 View Angle 12:00
Interface SPI
High Light

5 Inch LCD TFT Display Module

,

SPI interface LCD TFT Display

,

LCD TFT Display 400c/d

Leave a Message
Product Description
ESHX50WV016-WCT is 5 inch a color active matrix TFT LCD display with touch panel and PCBA ,800X480 resolution and SPI interface  ,400c/d and view angle 12:00
for more details, you can download datasheet from this link ESHX50WV016-WRT_SPEC.pdf


A:Product Parameter

Part No: ESHX50WV016-WCT
Panel Size 5 inch TFT LCD Display+RTP +PCB
LCD Type IPS
Module Size(mm) 136.00×76.05×6.50
Display Area(mm) 108.00×64.80
Number of Dots 800X480
View angle 12:00
Interface Pins SPI
Driving IC /
Luminance 400 c/d
With /Without TSP with RTP



B:Product Picture

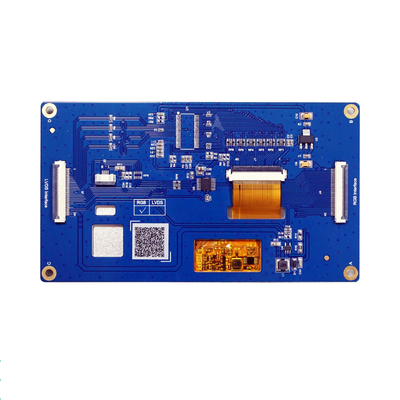

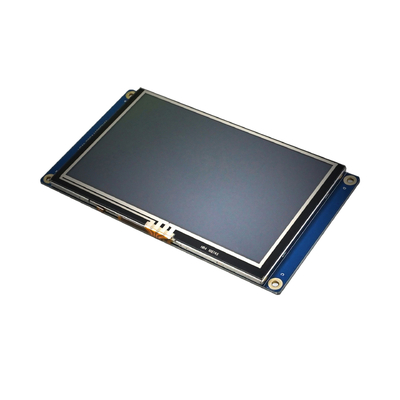

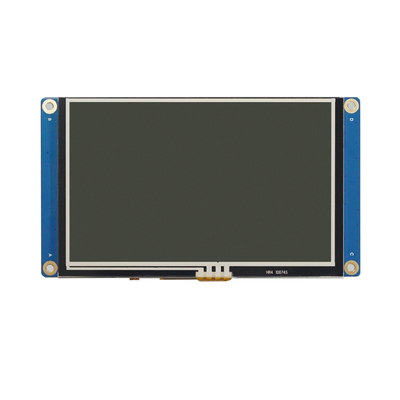

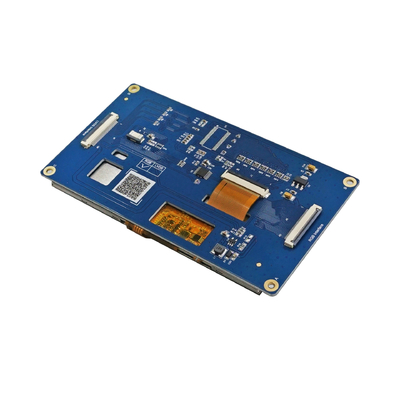

5 Inch LCD TFT Display Module With Touch Panel , SPI Interface,  800X480 Resolution,  400c/D 05 Inch LCD TFT Display Module With Touch Panel , SPI Interface,  800X480 Resolution,  400c/D 15 Inch LCD TFT Display Module With Touch Panel , SPI Interface,  800X480 Resolution,  400c/D 25 Inch LCD TFT Display Module With Touch Panel , SPI Interface,  800X480 Resolution,  400c/D 3
