4 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE 800 C/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX040BHD8470ACT
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Module Name TFT Display
Size 4" Resolution 720x720
Brightness 800 Cd/m2 Drive IC ICNL9707
View Angle Free View Angle Interface 30 PINS MIPI 4 LINE
High Light

TFT Display Touch Panel Module

,

4 Inch TFT Display Panel Module

,

TFT Display Module 800 C/D

Leave a Message
Product Description


ESHX040BHD8470ACT is 4 inch round TFT with touch panel  and resolution is 720x720 ,brightness is 800c/d and interface is  30 PINS MIPI 4LINE, display panel IC is ICNL9707
 for more details you can download datasheet from this link ESHX040BHD8470ACT_Spec.pdf

A:Product Parameter

Part NO.ESHX040BHD8470ACT
Panel size4 inch TFT display module
Resolution720X720
Viewing AngleFree
Operation Temperature-20~70
storage temperature-30~80
Panel Size(mm)109.2(H) *113.47(V)*3.85(T)
Active Area (mm)101.52 (H)*101.52(V)
Brightness(cd/m2)800c/d
Interface30 PINS MIPI 4LINE
drive ICICNL9707
Touch panelCTP



B:Product Picture

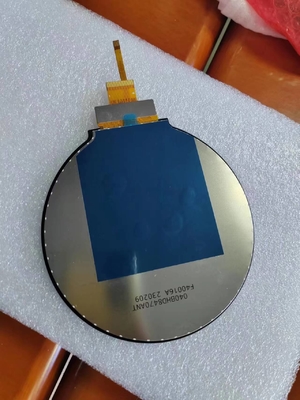

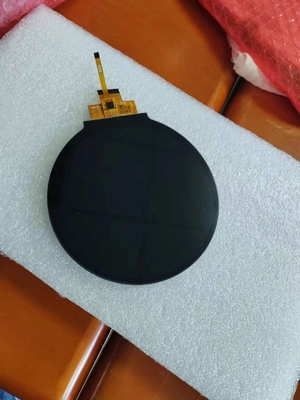

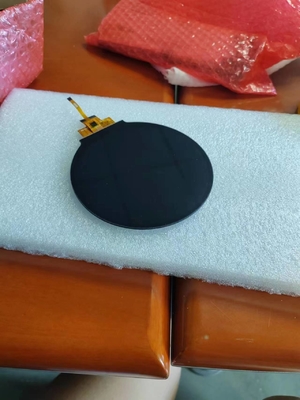

4 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 04 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 14 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 2



C:Drawing
4 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 3

D:TFT Product  Knowledge
tft substrate input and CF substrate input flow chart as below

4 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 4

TFT structure  as below
4 Inch TFT Display Module With Touch Panel 720x720 Resolution 30 PINS MIPI 4LINE  800 C/D 5


E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity
2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
LCD Producton
Capacity
4.59999Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70150300450450Unit:Thousand
piece/Day
Backlight Producton
Capacity
100200300500500Unit:Thousand
piece/Day
OLED Producton
Capacity
1020304050Unit:Thousand
piece/Day



G: Product Application

1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance

H: TFT Display Characteristics

1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.

2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.

3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.

4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.

5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.

6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.

7.Wide Applications:

I: Are there any drawbacks or limitations to using TFT displays?

1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
