3.5 Inch Touch Screen TFT Display, 320x480 50 PINS MCU RGB SPI Interface 300 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX035QHI-03CP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Touch Screen Tft Name TFT Lcd
Size 3.5" Resolution 320*480
Brightness 300cd/m2 Drive IC ILI9488
View Angle Free Interface 45 Pins 24bit RGB
Highlight

3.5 inch Touch Screen TFT Display

,

Touch Screen TFT Display 320x480

,

50pins 3.5 touchscreen

Leave a Message
Product Description

ESHX035QHI-03CP  is 3.5 inch  TFT LCD with touch panel ,320x480  Resolution, 50 PINS MCU/RGB/SPI interface, brightness is 300 cd/M2 TFT module  and lcd  display Driver IC isILI9488  and CTP IC is GT911.View angle is free



A:Product Parameter

Part No: ESHX035QHI-03CP
Panel size 3.5 inch TFT
LCD type IPS
Module Size 65.61*97.41*3.75
Display Area 48.96*73.44
Number of Dots 320*480
View angle ALL
Module Driver IC ILI9488
CTP Driver IC GT911
Interface Pins 50 PINS MCU/RGB/SPI
LED Numbers 6PCS
Luminance 300cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP



B:Product Picture

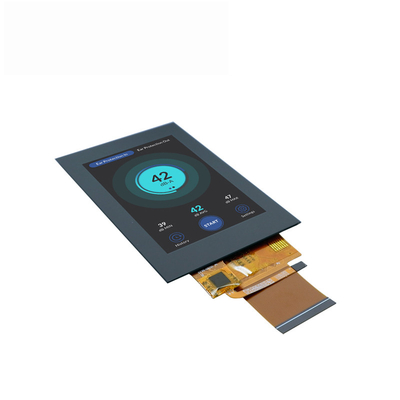

3.5 Inch Touch Screen TFT Display,  320x480 50 PINS MCU RGB SPI Interface 300 CD/M2 0

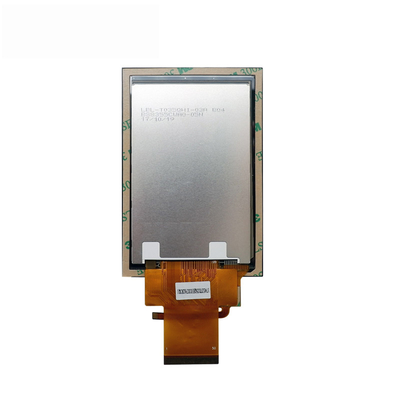

3.5 Inch Touch Screen TFT Display,  320x480 50 PINS MCU RGB SPI Interface 300 CD/M2 1

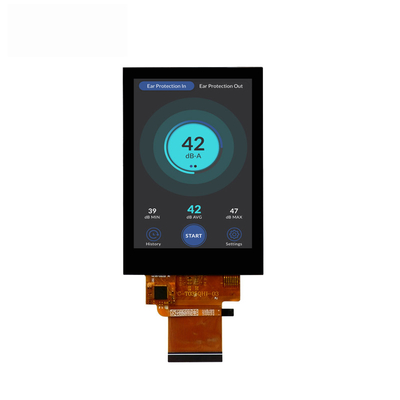

3.5 Inch Touch Screen TFT Display,  320x480 50 PINS MCU RGB SPI Interface 300 CD/M2 2
