Product Details
Display Technology Touch Screen LCD Name TFT Display
Size 3.5" Resolution 320*240
Brightness 500cd/m2 Drive IC NV3035
View Angle 12:00 Interface 45 Pins 24bit RGB
Highlight

3.5 tft display 500 CD/M2

,

3.5 tft display 45 PINS

,

3.5 inch tft lcd touch screen 500 CD/M2
Leave a Message
Product Description

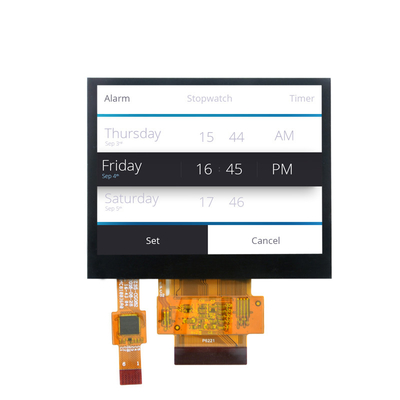

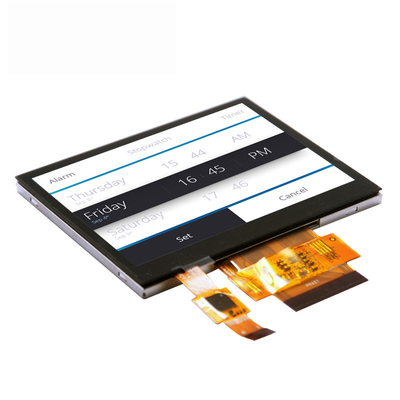

ESHX035TLV-18CP  is 3.5 inch  TFT display with touch panel ,320x240 Resolution, 45 pins 24bit RGB  interface, brightness is 500 cd/M2 TFT module  and lcd  display Driver IC is NV3035  and CTP IC is FT5346.View angle is 12:00

You can download datasheet from this link ESHX035TLV-18CP SPEC.pdf


A:Product Parameter

Part No: ESHX035TLV-18CP
Panel size 3.5 inch TFT
LCD type TN
Module Size 76.90*64.00*4.80
Display Area 70.08*52.56
Number of Dots 320*240
View angle 12:00
Module Driver IC NV3035
CTP Driver IC FT5346
Interface Pins 45 pins 24bit RGB
LED Numbers 6PCS
Luminance 500cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP

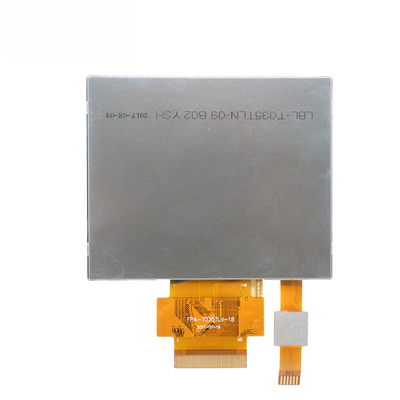

B:Product Picture
