Product Details
Display Technology Touch Screen TFT Name LCD Display
Size 2.4" Resolution 240x320
Brightness 450cd/m2 Drive IC ILI9341V
View Angle Free Interface 40 PINS MCU/RGB/SPI
Highlight

2.4 inch lcd tft touch screen

,

LCD TFT touch screen 240x320

,

2.4 touch screen 40 PINS

Leave a Message
Product Description

ESHX024HQI-13CP  is 2.4 inch  TFT display with touch panel ,240x320 Resolution, 40 pins MCU/RGB/SPI   interface, brightness is 450 cd/M2 TFT lcd  and lcd  display Driver IC is ILI9341V  and CTP IC is FT5346.View angle is free



A:Product Parameter

Part No: ESHX024HQI-13CP
Panel size 2.4 inch TFT
LCD type IPS
Module Size 54.00*72.00*4.60
Display Area 36.72*48.96
Number of Dots 240*320
View angle ALL
Module Driver IC ILI9341V
CTP Driver IC FT5346
Interface Pins 40 PINS MCU/RGB/SPI
LED Numbers 6PCS
Luminance 450cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP


B:Product Picture

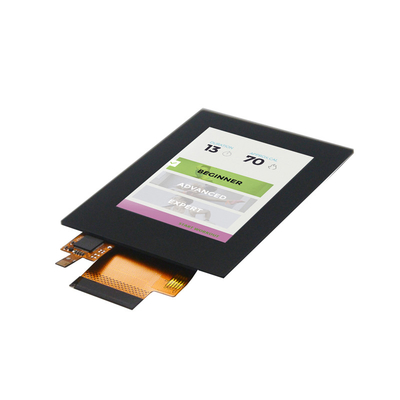

2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 0

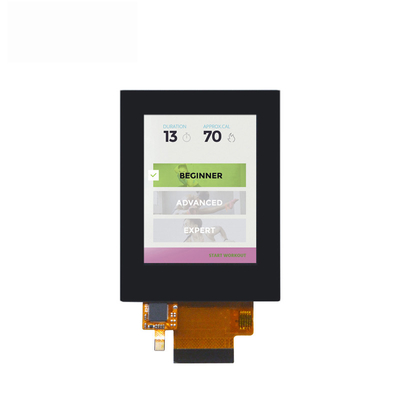

2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 1

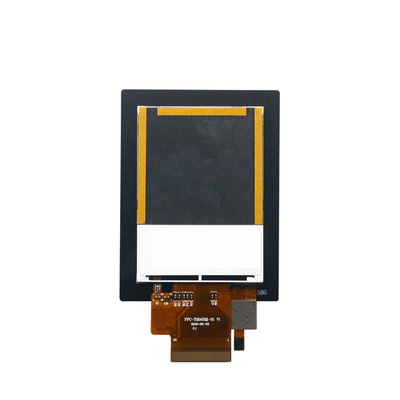

2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 2

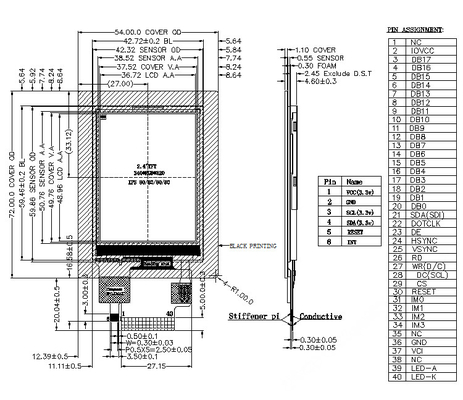

C: Drawing


2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 3




D:TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below


2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 4



TFT structure  as below

2.4 Inch LCD TFT Touch Screen 240x320 40 PINS MCU RGB SPI 450 CD/M2 5
