24bit RGB Interface , 9 Inch Tft Display 800x480, With Touch Panel

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX090BWH-01CP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology TFT LCD Name LCD Panels
Size 9" Resolution 800*480
Brightness 800cd/m2 Interface 24bit RGB
View Angle 12:00 Driving IC HX8264+HX8664
High Light

24 bit 9 inch tft display


RGB 9 inch tft display


800x480 tft capacitive screen

Leave a Message
Product Description

ESHX090BWH-01CP  panel size is 9 inch lcd module and number of dots is 800x480 and  24 bit RGB interface, view angle is 12:00O'clock, high brightness 800cd/m2 , LCDdriving IC is HX8264+HX8664 and CTP IC is GT928

for more details, you can download datasheet from this linkESHX090BWH-01CP.pdf


A:Product Parameter

Part No: ESHX090BWH-01CP
Panel size 9 inch tft
LCD type TN
Module Size 210.70*126.50*7.45
Display Area 198.00*111.70
Number of Dots 800*480
View angle 12:00
Module Driver IC HX8264+HX8664
CTP Driver IC GT928
Interface Pins 24bit RGB
LED Numbers 4PCS
Luminance 800cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP CTP


B:Product Picture

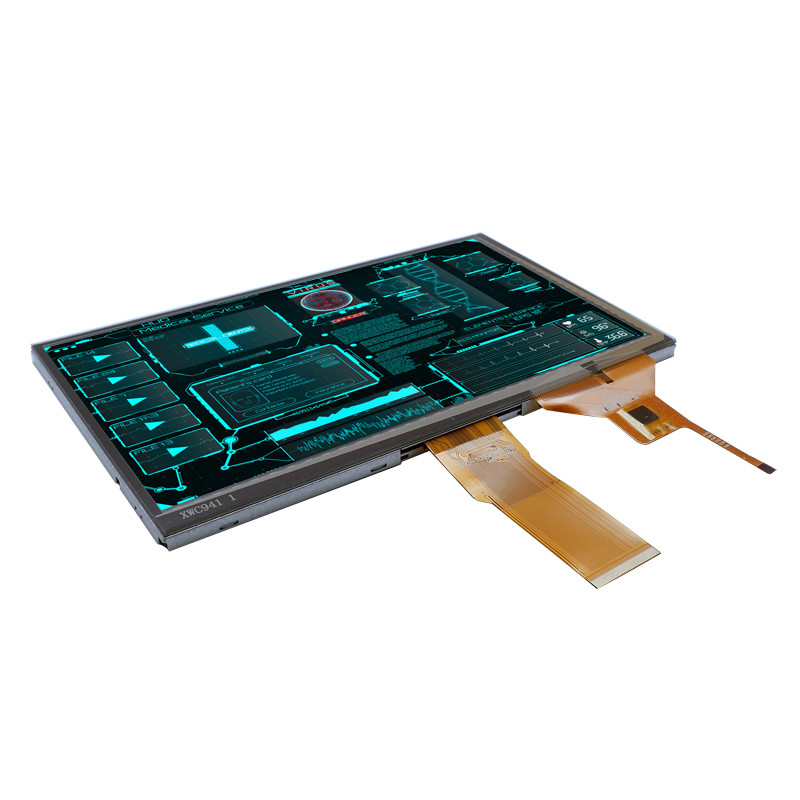

24bit RGB Interface , 9 Inch Tft Display 800x480, With Touch Panel 0

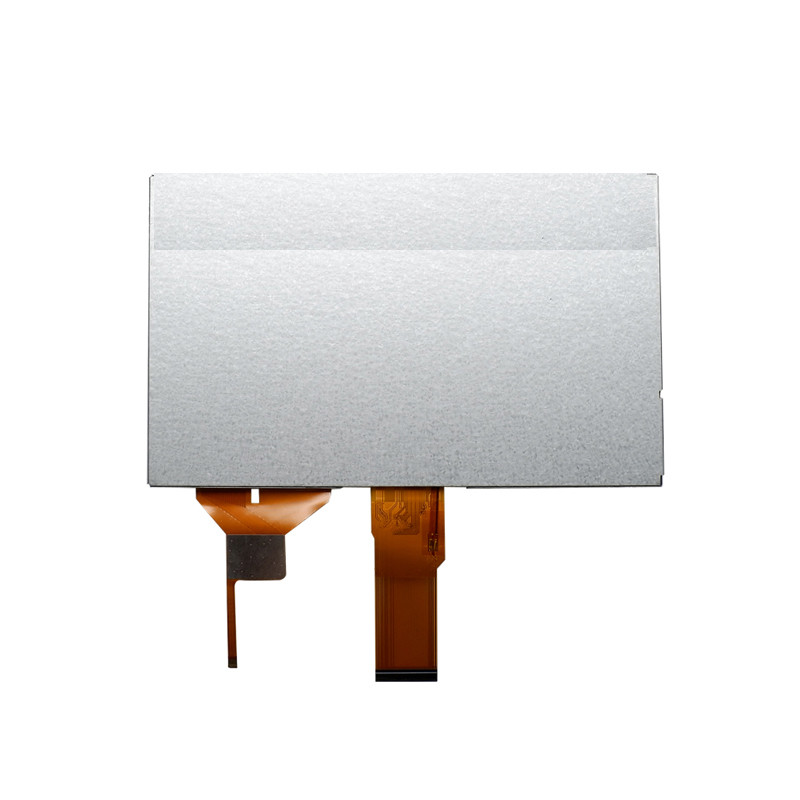

24bit RGB Interface , 9 Inch Tft Display 800x480, With Touch Panel 1

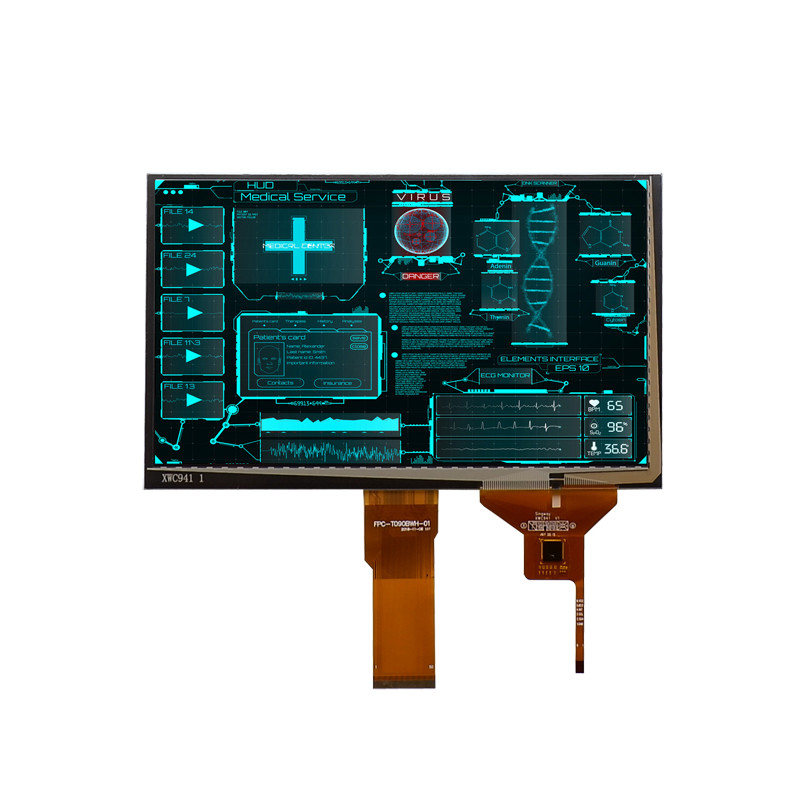

24bit RGB Interface , 9 Inch Tft Display 800x480, With Touch Panel 2
