1.5 Inch Pmoled, 128x128 Resolution, 25 Pins 3/4 Spi I2c Interface , White Blue Oled Display

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX128128-02
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology PMoled Display Name Oled Display Panel
Size 1.5" Resolution 128*128
Interface 25 Pins 3/4 SPI,I2C Driving IC SH1107
Highlight

25pins yellow oled

,

128x128 yellow oled display

,

1.5 inch yellow oled display

Leave a Message
Product Description

ESHX128128-02 is 1.5 inch PMOLED Display module , 128*128 Resolution, 25 PINS 3/4 SPI,I2C Interface, ESHX128128-02 display color  WHITE/BLUE ,driving IC SH1107 and connecting method Soldering



A:Product Parameter

Part NO. ESHX128128-02
Display Technology PMOLED
Diagonal Screen Size 1.5 inch
Resolution 128*128
Viewing Angle free
Active Area (mm) 26.86x26.86 mm
Module Size(mm) 33.9X37.3X1.45MM
Pixel pitch 0.21x0.21
Pixel size 0.19x0.19
Operation Temp -40~70
display color WHITE/BLUE
Interface 3/4 SPI,I2C
Pin q'ty 25PINS
driving IC SH1107
Connecting method Soldering



B:Product Picture

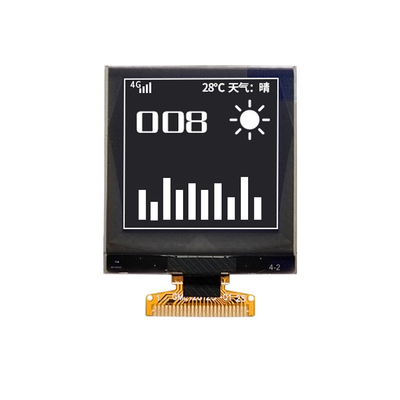

1.5 Inch Pmoled,  128x128 Resolution,  25 Pins 3/4 Spi I2c Interface , White Blue Oled Display 0

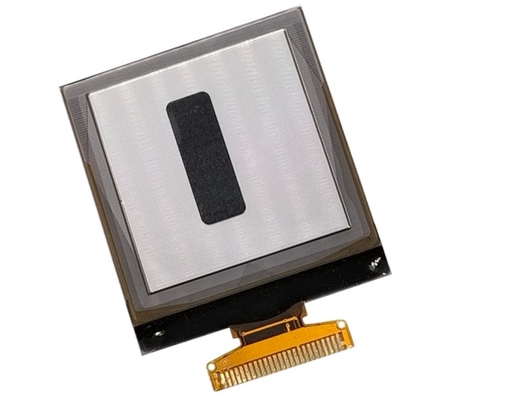

1.5 Inch Pmoled,  128x128 Resolution,  25 Pins 3/4 Spi I2c Interface , White Blue Oled Display 1

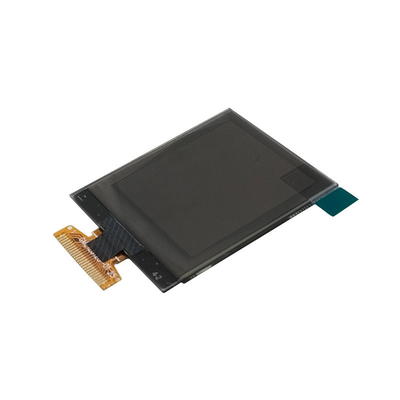

1.5 Inch Pmoled,  128x128 Resolution,  25 Pins 3/4 Spi I2c Interface , White Blue Oled Display 2
