0.63 Inch Monochrome Oled Display, 120X28, IIC Interface, Driving IC Ssd1312z

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX2028TSWIG02-H1
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology PMoled Display Name Small Oled Display Module
Size 0.63" Resolution 120*28
Driving IC Ssd1312z Interface IIC
High Light

0.63 Inch monochrome oled display

,

monochrome oled display 120X28

,

IIC square oled display

Leave a Message
Product Description

ESHX2028TSWIG02-H1 is 0.63 Inch PMOLED display module ,120X28 Resolution, 14pins  IIC Interface, driving IC ssd1312z anc connecting method is  soldering ,display color is white


A: Product Parameter

Part NO. ESHX2028TSWIG02-H1
Display Technology PMOLED
Diagonal Screen Size 0.63 inch
Resolution 120*28
Viewing Angle all
Active Area (mm) 15.58*3.62mm
Module Size(mm) 6.62*21.54mm
Pixel pitch 0.13*0.13mm
Pixel size 0.11*0.11mm
Operation Temperature -40~85
display color white
Interface IIC
Pin q'ty 14pins
driving IC ssd1312z
Connecting method soldering



B:Product Picture

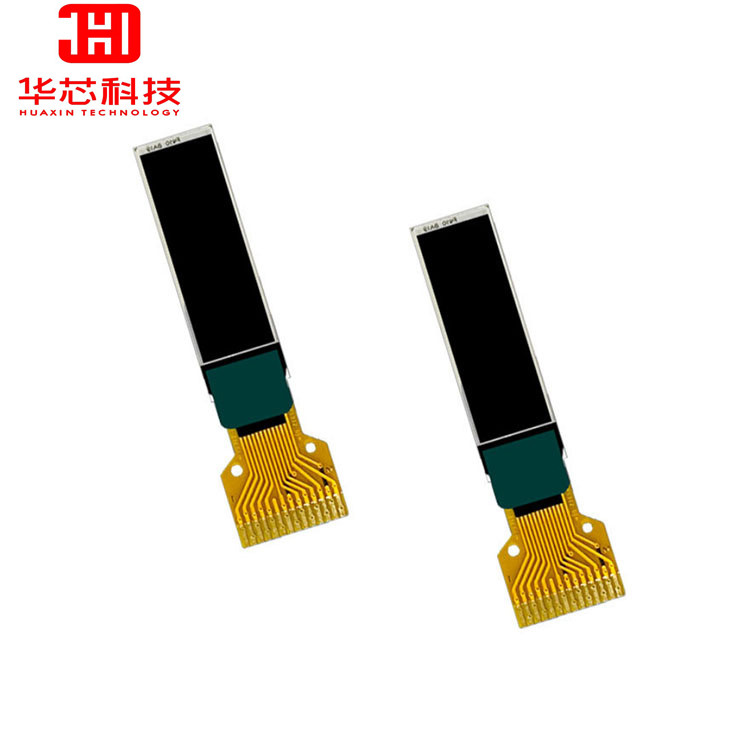

0.63 Inch Monochrome Oled Display,  120X28,  IIC Interface,  Driving IC Ssd1312z 0

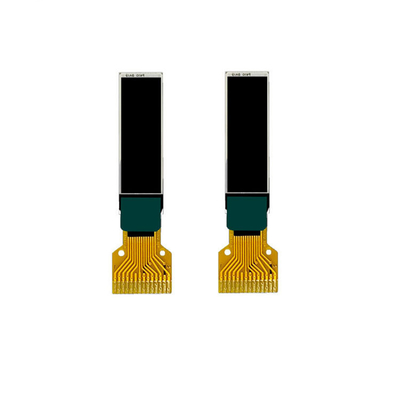

0.63 Inch Monochrome Oled Display,  120X28,  IIC Interface,  Driving IC Ssd1312z 1

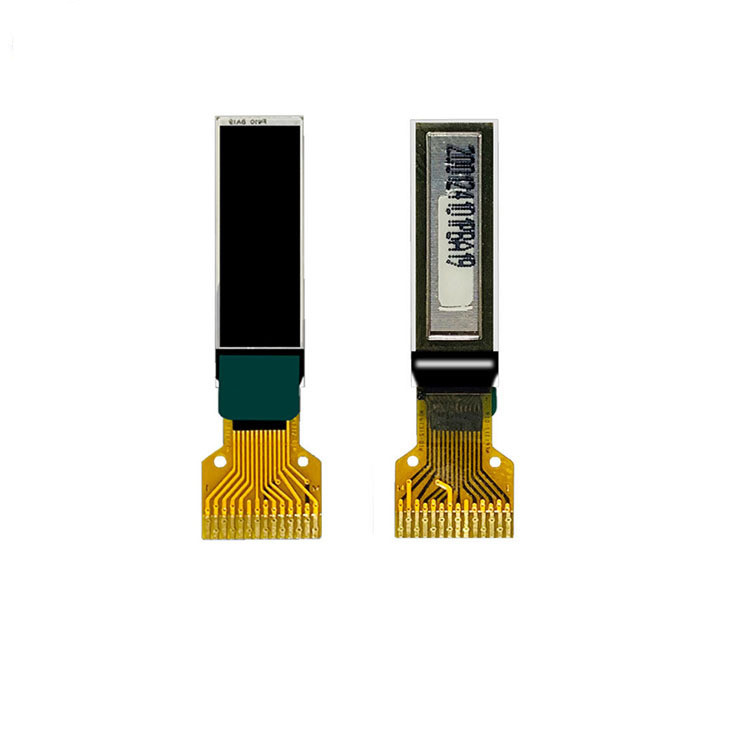

0.63 Inch Monochrome Oled Display,  120X28,  IIC Interface,  Driving IC Ssd1312z 2
