0.5 Inch PMOLED Display Module , 48X88 Resolution, 14pins IIC Interface, Driving IC CH1115

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX8848TSWYG02-H
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology PMoled Display Name Pmoled Screen
Size 0.5" Resolution 48X88
Driving IC CH1115 Interface IIC
High Light

0.5 inch PMOLED Display


PMOLED Display CH1115


14pins oled display panel

Leave a Message
Product Description

ESHX8848TSWYG02-H is  0.5 Inch PMOLED display module ,48X88 Resolution, IIC Interface, driving IC CH1115 and white oled display ,connecting method is soldering

A: Product Parameter

Part NO. ESHX8848TSWYG02-H
Display Technology PMOLED
Diagonal Screen Size 0.5 inch
Resolution 48X88
Viewing Angle free
Active Area (mm) 6.124*11.244mm
Module Size(mm) 8.928*17.1*1.227mm
Pixel pitch 0.128*0.128mm
Pixel size 0.108*0.108mm
Operation Temperature -40~85
display color white
Interface IIC
Pin q'ty 14pins
driving IC CH1115
Connecting method soldering

B:Product Picture

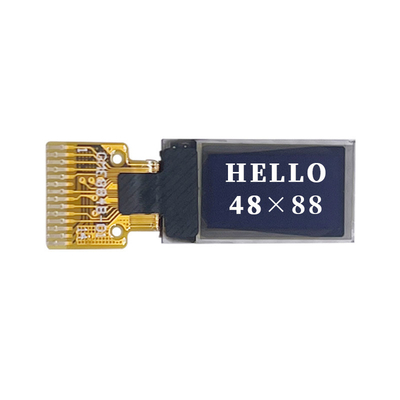

0.5 Inch PMOLED Display Module , 48X88 Resolution,  14pins IIC Interface,  Driving IC CH1115 0

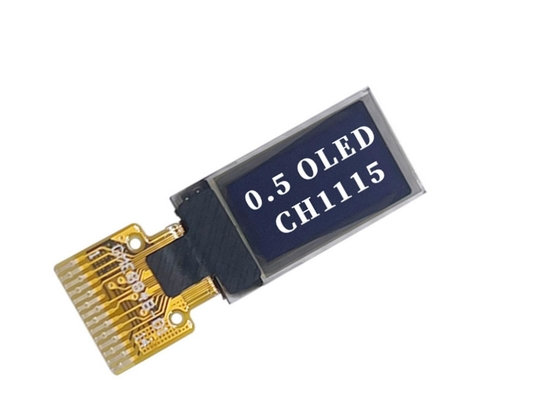

 0.5 Inch PMOLED Display Module , 48X88 Resolution,  14pins IIC Interface,  Driving IC CH1115 1

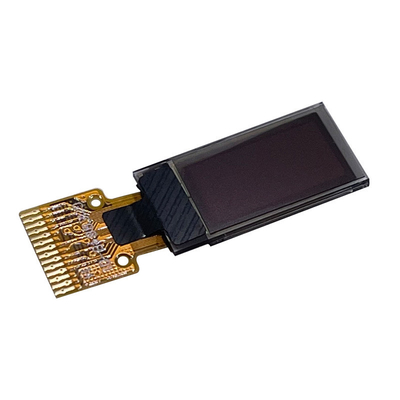

0.5 Inch PMOLED Display Module , 48X88 Resolution,  14pins IIC Interface,  Driving IC CH1115 2

0.5 Inch PMOLED Display Module , 48X88 Resolution,  14pins IIC Interface,  Driving IC CH1115 3

 0.5 Inch PMOLED Display Module , 48X88 Resolution,  14pins IIC Interface,  Driving IC CH1115 4

D:Oled Product Knowledge

OLED Advantages:


OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption


OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT

E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application


1.Wearable Devices

2. Portable Audio Players

3. Thermostats and Home Automation Devices

4. Car Dashboards and Instrument Clusters

5. Medical Device

6.Consumer Electronics

7. Industrial and Professional equipment


H:PMOLED Characteristics


1.Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.


2.Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit. This circuit applies voltage to the selected pixels to activate them.


3. High Contrast and Color Saturation:PMOLED displays offer high contrast ratios and vibrant colors. Since each pixel emits its own light, PMOLEDs can achieve deep blacks and vibrant colors without the need for a backlight.


4. Power Efficiency: PMOLED displays are generally power-efficient. They consume power only for the pixels that are active, as OLED emit light when a voltage is applied to them. In contrast, LCD displays require a backlight that consumes constant power regardless of the content being displayed.


5.Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates. This makes them suitable for applications where flexibility or bendability is desired, such as curved displays or wearable devices.


6. Limited Resolution and Size: PMOLED technology has certain limitations compared to other display technologies. PMOLED displays are typically limited in resolution, and their pixel densities are lower compared to active matrix OLED (AMOLED) or LCD displays. Additionally, PMOLED displays are more suitable for smaller-sized screens due to manufacturing constraints.


7.Screen Persistence: PMOLED displays are susceptible to a phenomenon called screen persistence or burn-in, where prolonged display of static images can result in image retention or permanent damage to the display. However, etc


I: What are the advantages of AMOLED displays compared to PMOLED displays?


1.Higher Resolution:

2. Better Color Reproduction

3. Faster Refresh Rates

4. Improved Power Efficiency :

5. Larger Screen Sizes:

6. Flexibility and Curved Displays:
