0.54 Inch PMOLED Display Module, 96X32 Resolution , IIC Interface , Driving IC CH1115

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX054WYG02
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology PMoled Display Name Mini Oled Display
Size 0.54" Resolution 96X32
Driving IC CH1115 Interface IIC
Highlight

0.54 Inch PMOLED display

,

PMOLED display 96x32

,

CH1115 small oled display

Leave a Message
Product Description

ESHX054WYG02 is 0.54 Inch PMOLED screen , 96X32 Resolution, IIC Interface, driving IC CH1115,ESHX054WYG02 is one kind of small oled screen and  applied for watch oled display, white  oled display


A:Product Parameter

Part NO. ESHX054WYG02
Display Technology PMOLED
Diagonal Screen Size 0.54 inch
Resolution 96X32
Viewing Angle free
Active Area (mm) 13.96*13.32mm
Module Size(mm) 18.52*7.04*1.227mm
Pixel pitch 0.128*0.128mm
Pixel size 0.108*0.108mm
Operation Temperature -40~85
display color white
Interface IIC
Pin q'ty 14pins
driving IC CH1115
Connecting method soldering



B:Product Picture

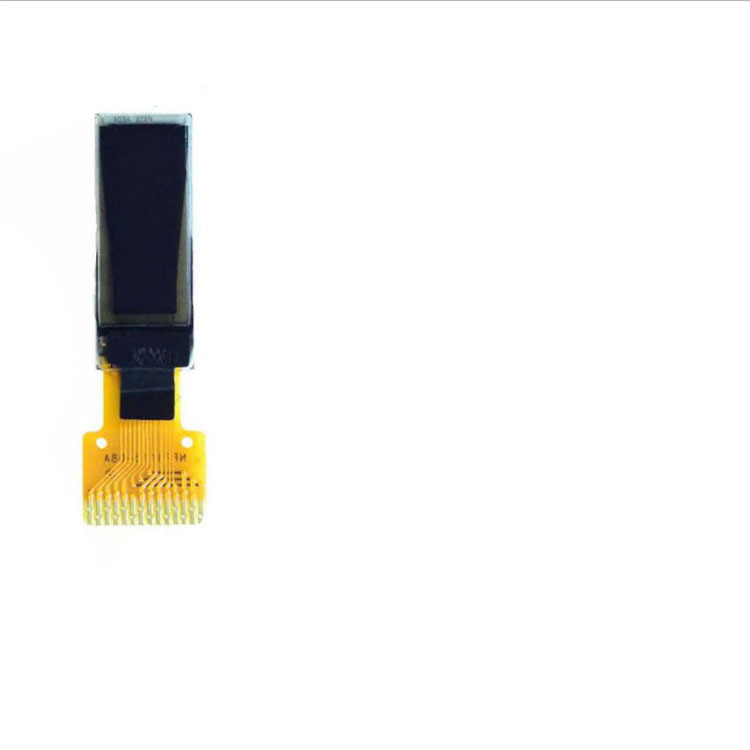

0.54 Inch PMOLED Display Module,  96X32 Resolution , IIC Interface , Driving IC CH1115 0

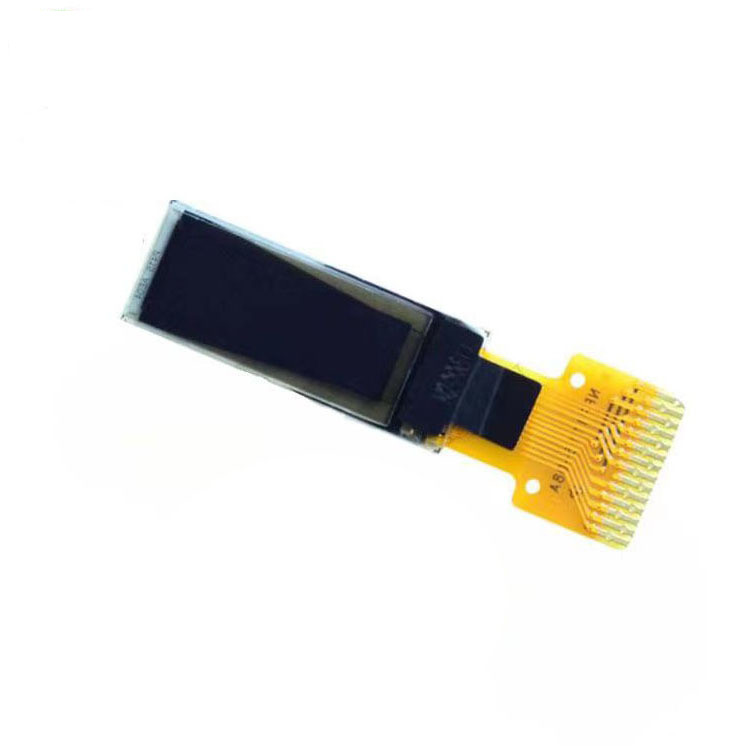

0.54 Inch PMOLED Display Module,  96X32 Resolution , IIC Interface , Driving IC CH1115 1

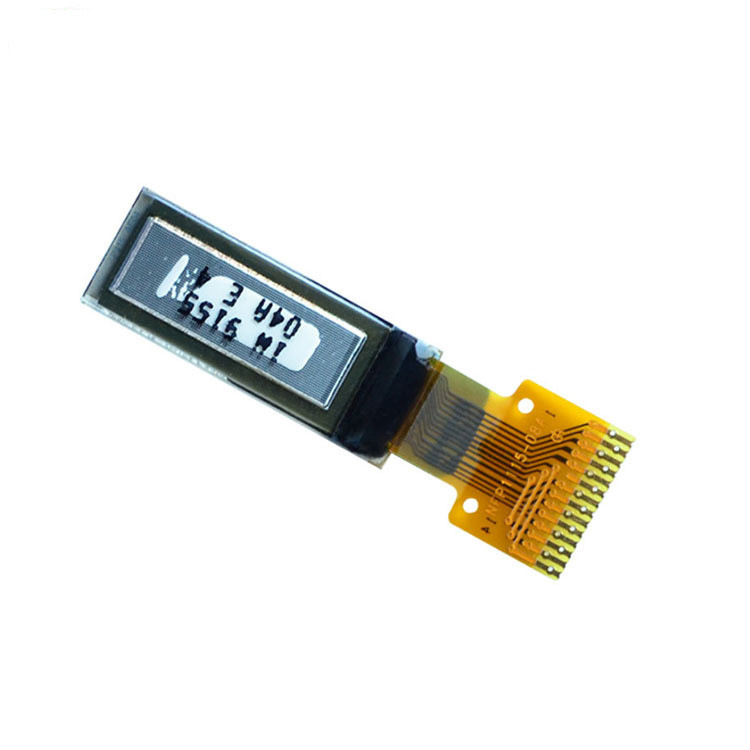

 0.54 Inch PMOLED Display Module,  96X32 Resolution , IIC Interface , Driving IC CH1115 2
