0.66 Inch Oled Display Screen , 64x48 Resolution , I2C SPI Interface , IC SSD1306 Driving
Place of Origin | China |
---|---|
Brand Name | HuaXin |
Certification | ISO14001/ISO9001/IATF16949 |
Model Number | ESHX6448KSWEG03 |
Minimum Order Quantity | 1000pcs |
Price | negotiation |
Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
Delivery Time | 6weeks~8weeks |
Payment Terms | T/T |
Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDisplay Technology | PMoled Display | Name | Oled Display Module |
---|---|---|---|
Size | 0.66" | Resolution | 64*48 |
Driving IC | SSD1306 | Interface | I2C/SPI |
Highlight | 0.66 Inch oled display screen,oled display screen 64x48,SPI oled lcd display |
ESHX6448KSWEG03 IS 0.66 Inch PMOLED display module ,64x48Resolution, 28 pins I2C/SPI Interface, driving ICSSD1306,Connecting method is sodering,display color is white
A: Product Parameter
Part NO. | ESHX6448KSWEG03 |
Display Technology | PMOLED |
Diagonal Screen Size | 0.66 inch |
Resolution | 64*48 |
Viewing Angle | all |
Active Area (mm) | 13.42x10.06mm 18.46x18.1x1.4 |
Module Size(mm) | 18.46x18.1x1.4mm |
Pixel pitch | |
Pixel size | 0.19x0.19 |
Operation Temperature | -40~85 |
display color | white |
Interface | I2C/SPI interface |
Pin q'ty | 28 pins |
driving IC | SSD1306 |
Connecting method | soldering |

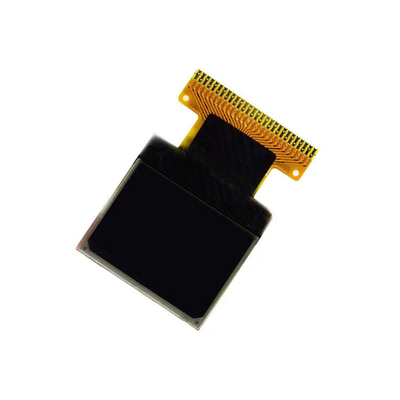

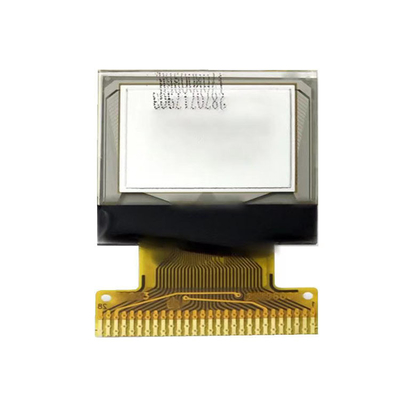

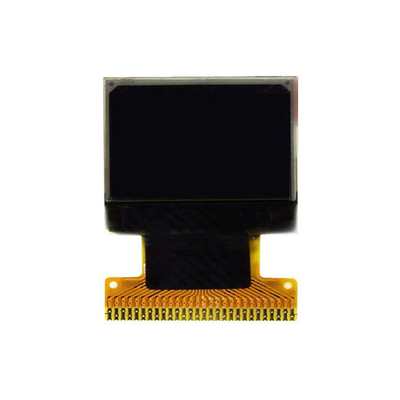

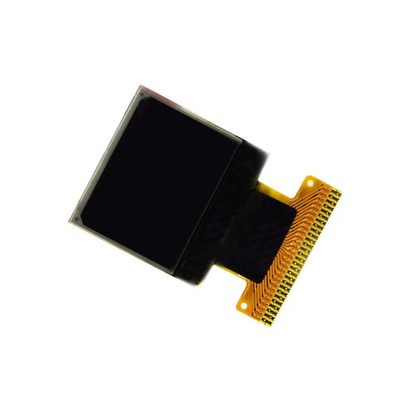

B:Product Picture
C:Drawing
-------------------------------------
D: Oled Product Knowledge
OLED Advantages:
OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption
OLED Disadvantages
AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
G: Product Application
1.Wearable Devices
2. Portable Audio Players
3. Thermostats and Home Automation Devices
4. Car Dashboards and Instrument Clusters
5. Medical Device
6.Consumer Electronics
7. Industrial and Professional equipment
H:PMOLED Characteristics
1.Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.
2.Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit. This circuit applies voltage to the selected pixels to activate them.
3. High Contrast and Color Saturation:PMOLED displays offer high contrast ratios and vibrant colors. Since each pixel emits its own light, PMOLEDs can achieve deep blacks and vibrant colors without the need for a backlight.
4. Power Efficiency: PMOLED displays are generally power-efficient. They consume power only for the pixels that are active, as OLED emit light when a voltage is applied to them. In contrast, LCD displays require a backlight that consumes constant power regardless of the content being displayed.
5.Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates. This makes them suitable for applications where flexibility or bendability is desired, such as curved displays or wearable devices.
6. Limited Resolution and Size: PMOLED technology has certain limitations compared to other display technologies. PMOLED displays are typically limited in resolution, and their pixel densities are lower compared to active matrix OLED (AMOLED) or LCD displays. Additionally, PMOLED displays are more suitable for smaller-sized screens due to manufacturing constraints.
Screen Persistence: PMOLED displays are susceptible to a phenomenon called screen persistence or burn-in, where prolonged display of static images can result in image retention or permanent damage to the display. However, etc
I: What are the advantages of AMOLED displays compared to PMOLED displays?
1.Higher Resolution:
2. Better Color Reproduction
3. Faster Refresh Rates
4. Improved Power Efficiency :
5. Larger Screen Sizes:
6. Flexibility and Curved Displays:
