0.39-inch Micro OLED Display with 1024×768 Resolution and 400 Brightness for High-Definition Smart Wearables
Product Details
| Display Technology | AMOLED Display Module | Name | Micro OLED Display |
|---|---|---|---|
| Size | 0.39Inch | Resolution | 1024×768 |
| Interface | MIPI | ||
| Highlight | 0.39-inch Micro OLED Display,1024×768 resolution Micro OLED Display,400 brightness Micro OLED Display |
||
You can tick the products you need and communicate with us in the message board.
Product Description
New Product: 0.39-inch OLED Single Display | 1024×768 RGB, 400 Brightness, MIPI Interface, Suitable for Miniature Detectors / Smart Wearables, High-Definition Self-Luminous, Quick Integration
Product Parameters
| Display Technology | AR display / Si-OLED |
| Size | 0.39 Inch |
| Resolution | 1024×768 |
| Interface | MIPI |
| view angle | All |
| Brightness | 400cd/m² |
| Testing Board | HDMI and Type C optional |
| Part No. | ESHX039WAM01 |
| AA Size | 16.6x14.2(mm) |

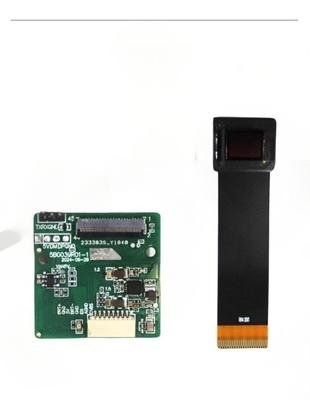

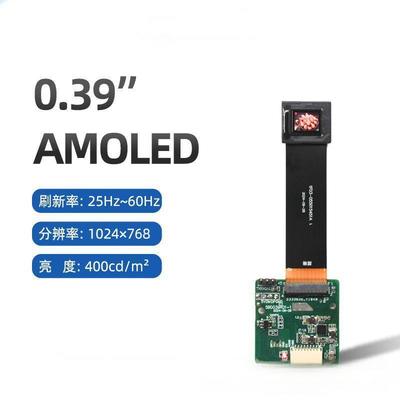

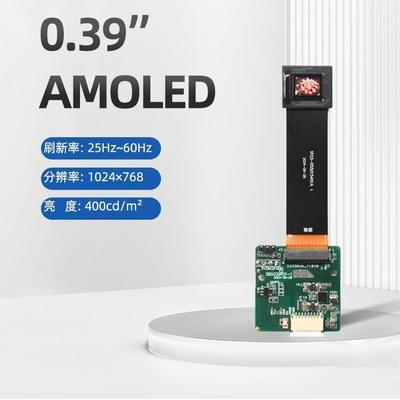

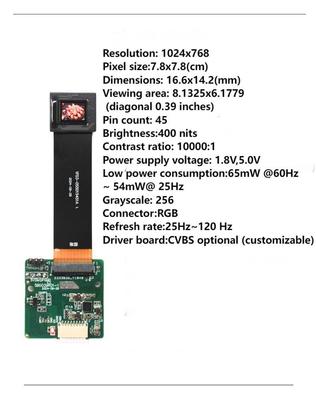

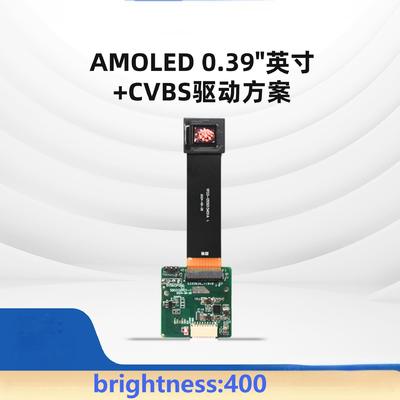

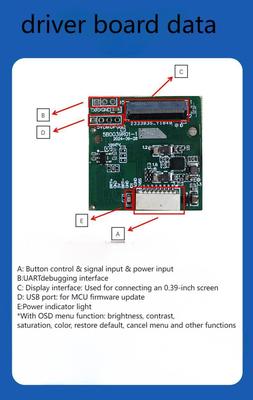

Product Images
OLED Technology Overview
Advantages
- Lighter and thinner than LCD displays
- High contrast ratio and color saturation
- Lower power consumption
Disadvantages
- Higher cost compared to LCD and TFT
- Shorter lifespan than LCD and TFT
AMOLED Display Characteristics
- Self-Emissive Pixels
- Superior Contrast Ratio
- Excellent Color Accuracy and Vibrancy
- Wide Viewing Angles
- Enhanced Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
AMOLED vs Other Display Technologies
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
- Brightness Control: AMOLED can dynamically adjust pixel brightness for better efficiency
- Display Size: AMOLED is more efficient for smaller displays as consumption scales with pixels
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & communication devices
- Collimators & navigational equipment
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Registered Capital: 20 million
Current Staff: 500+
High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED solutions.
Huaxin Advantages
- Cost-effective inland factory location
- Advanced equipment ensuring stable quality
- Automated production processes for efficiency
- Experienced engineering team with 20+ years in LCD field
- Custom product design capabilities
Certifications
ISO14001 / ISO9001 / IATF16949
SGS certified LCD modules
Production Capacity
| Annual Production Capacity | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
