0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface

  • 0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface
  • 0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface
  • 0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface
  • 0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface
  • 0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX032WEM01
Document ESHX032WEM01-spec.pdf
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month
Product Details
Display Technology Super AMOLED Name Micro Oled
Size 0.32" Resolution 800*600
Brightness 2000c/d Interface MIPI/RGB
Contrast Ratio 100,000:1
Highlight

800x600 Micro OLED Display

,

0.32 inch Micro OLED Display

,

MIPI Micro OLED Display
Leave a Message
Product Description
0.32 Inch Micro OLED Display With 800x600 Resolution And 2000 Cd/m² Brightness MIPI Interface

The ESHX032WEM01 is a 0.32 inch micro OLED screen module featuring 800*600 resolution, MIPI/RGB interface, 2000 Cd/m² brightness, and wide viewing angle.

Product Specifications
Parameter Value
Part No. ESHX032WEM01
Display Mode 0.32 inch micro OLED
Outline Size (mm) 9.14 * 9.55 * 1.475
Active Area Size (mm) 6.48 * 4.86
Display Dots 800 * 600
View Angle All
Frame Rate 15Hz–120Hz
Brightness 2000 Cd/m²
Interface MIPI/RGB
Contrast Ratio 100,000:1
Color Mode RGB
Product Images

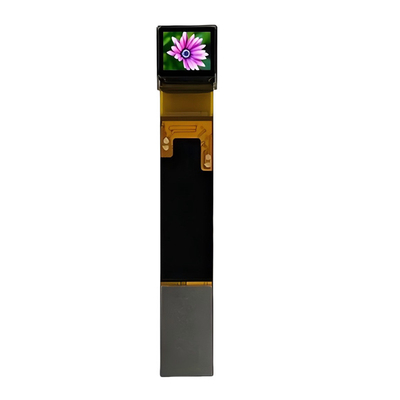

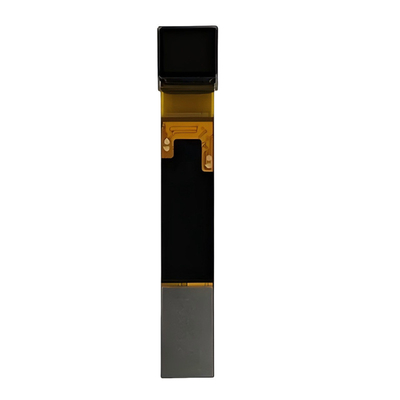

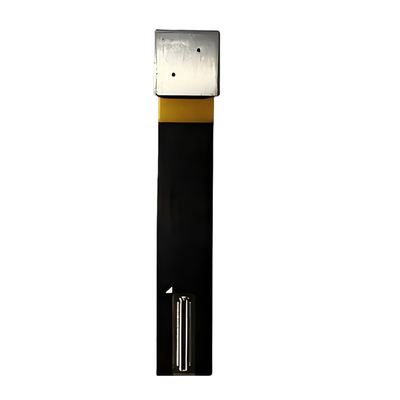

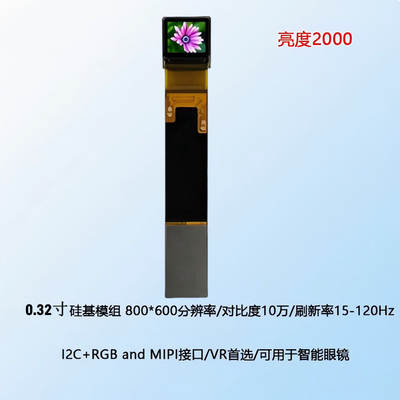

Micro OLED display module front view Micro OLED display module side view Micro OLED display module close-up Micro OLED display module technical view
OLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise founded in 2009, specializing in research, development, and production of display technologies.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated production processes
  • 20+ years of industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile
  • Location: Hubei, Enshi
  • Founded: 2009
  • Registered capital: 20 million
  • Employees: 500+
  • R&D: 10% of workforce
  • QC: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Typical Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & navigation devices
  • Collimators & optical equipment
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • High power efficiency
  • Thin and flexible design
  • Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
  • Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight brightness
  • Display Size: AMOLED scales better for smaller displays, LCD backlights become less efficient at larger sizes
