1.35 Inch Micro OLED Display Module with 3552x3840 Resolution and 1200 C/D Brightness for Optimal Viewing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | MICRO OLED Display | Name | Oled Panel |
|---|---|---|---|
| Size | 1.35" | Resolution | 3552x3840 |
| Brightness | 1200c/d | Interface | MIPI+SPI |
| Color Mode | RGB/MONO-G | ||
| Highlight | 1.35 Inch micro oled display module,3552x3840 micro oled display module,1200 C/D micro oled display module |
||
Product Description
1.35 Inch Micro OLED Display Module - 3552x3840 Resolution with MIPI+SPI Interface
High-performance 1.35" micro OLED display module featuring 3552x3840 resolution, MIPI+SPI interface, and 1200 cd/m² brightness for optimal display quality.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX135KDP-NM2 |
| Display Mode | 1.35" micro OLED |
| Outline Size (mm) | 25.55 × 32.02 |
| Active Area Size (mm) | 24.65 × 25.1264 |
| Display Resolution | 3552 × 3840 |
| View Angle | All directions |
| Brightness | 1200 cd/m² |
| Interface | MIPI + SPI |
| Contrast Ratio | 100,000:1 |

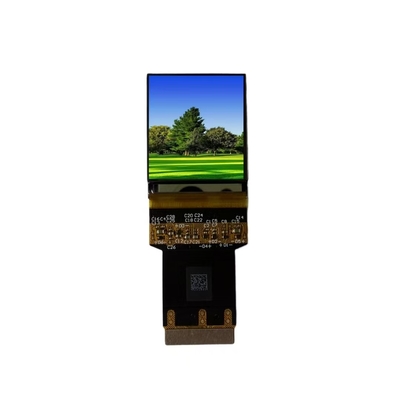

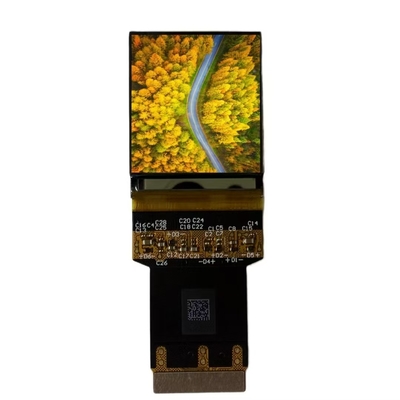

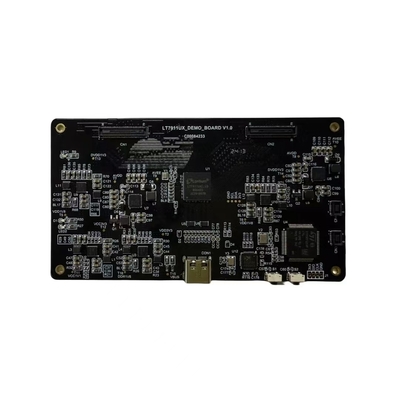

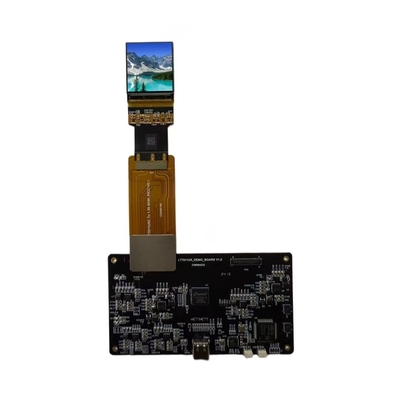

Product Images
Technical Drawing
OLED Technology Overview
Advantages
- Lighter and thinner than LCD displays
- High contrast ratio for superior image quality
- Excellent color saturation
- Lower power consumption
Disadvantages
- Higher cost compared to LCD and TFT displays
- Shorter operational lifetime than LCD and TFT technologies
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi | Employees: 500+ | R&D Staff: 10% | QC Staff: 15%
Company Advantages
- Cost-effective inland manufacturing base
- Advanced equipment for stable quality
- Automated production processes
- 20+ years of LCD industry experience
- Custom product design capabilities
Certifications
- ISO 14001
- ISO 9001/IATF 16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Typical Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Collimators & navigators
- Radio equipment
AMOLED Display Characteristics
- Self-emissive pixels for true blacks
- Exceptional contrast ratio
- Precise color accuracy and vibrancy
- Wide viewing angles
- Energy efficient operation
- Ultra-thin and flexible design options
- Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Technologies
- Pixel-based power consumption: AMOLED only powers active pixels, while LCD requires constant backlight
- Content-dependent efficiency: AMOLED excels with dark content; LCD power usage remains constant
- Brightness control: AMOLED can adjust individual pixel brightness; LCD has fixed backlight
- Size considerations: AMOLED maintains efficiency better at smaller sizes
