0.49 Inch Micro OLED Display with 1800C/D Brightness and High Contrast for VR Headsets
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX049WDM01 |
| Document | HX049WDM01-spec.pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 50K per month |
Product Details
| Display Technology | Micro Oled | Name | VR Oled |
|---|---|---|---|
| Size | 0.49 | Resolution | 1920*1080 |
| Brightness | 1800C/D | Interface | 40 PINS MIPI |
| Testing Board | HDMI Or Type C Optional | ||
| Highlight | 0.49 Inch Micro Display,1920*1080 Micro Display,VR Headsets Micro Display |
||
Product Description

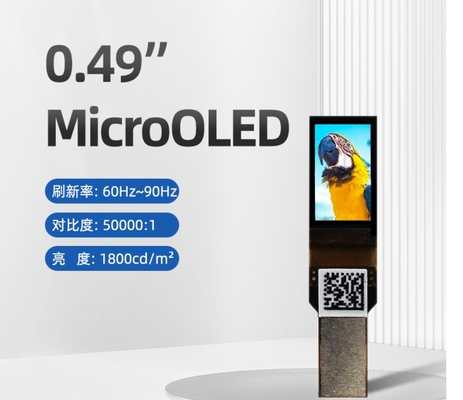

0.49 Inch Micro Display 1920×1080 Dots 1800C/D Brightness 40 Pins MIPI For VR Headsets
0.49 inch micro display with 1920×1080 resolution, 1800C/D brightness, and 40 PINS MIPI interface, specifically designed for VR applications.
Product Parameters
| Part No: | HX049WDM01 |
|---|---|
| Display Mode | 0.49 inch micro OLED with board |
| Outline Size (mm) | 15.68×9.09×1.5 |
| AA Size (mm) | 10.783×6.065 |
| Display Dots | 1920×1080 |
| View Angle | ALL |
| Brightness | 1800C/D |
| Interface | 40 PINS MIPI |

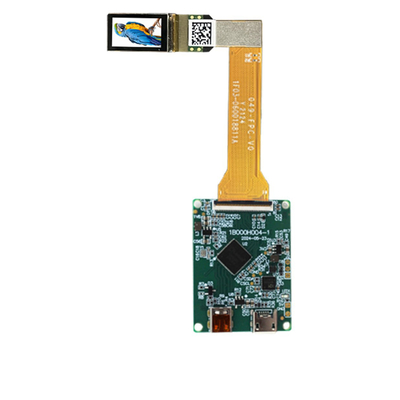

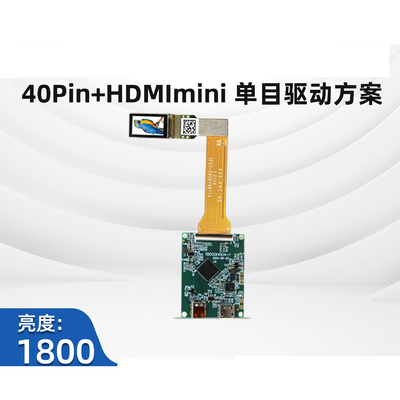

| Testing Board | HDMI or Type C optional |
Product Images

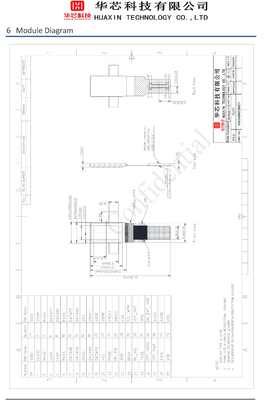

Drawing and Pin Definition
OLED Product Knowledge
OLED Advantages:
- Lighter and thinner than LCDs
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages:
- More expensive than LCD and TFT
- Shorter lifetime compared to LCD and TFT
Company Information
Huaxin Advantage:
- Factory located in cost-effective inland city
- Advanced equipment for stable quality
- Most processes use fully automatic equipment
- Professional engineers with 20+ years experience
- Custom product design capability
Our Certificates:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Details:
- Huaxin Technology (Enshi) Co., LTD
- Hubei, Enshi
- Founded: 2009
- High-tech enterprise specializing in LCD, LCM, TFT, backlight, OLED
- LCD series: VA, TN, HTN, STN, FSTN, CSTN
- LCM series: COB, TBA, COG, TP, LED backlight
- Registered capital: 20 million
- Current staff: 500+
- R&D: 10% of workforce
- QC: 15% of workforce
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Superior Color Accuracy and Vibrancy
- Wide Viewing Angles
- Excellent Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
Power Consumption:
- AMOLED displays consume power per-pixel (dark content uses less power)
- LCD/LED require constant backlight power regardless of content
Content Dependency:
- AMOLED more efficient for dark content (pixels can turn off)
- LCD/LED power consumption remains constant
Brightness Control:
- AMOLED can adjust pixel brightness individually
- LCD/LED typically have fixed backlight brightness
Display Size:
- AMOLED more efficient for smaller displays
- Larger LCD/LED may require more power-hungry backlights
