Multi-Purpose 0.77-Inch PMOLED display with 64X128 Resolution driving IC SSD1312
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX07701-64128TBBIG01-RF |
| Minimum Order Quantity | 1000 |
| Price | USD 1.45-USD 1.00/PCS(FOB HK) |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | AMOLED Display | Name | 0.77 Inch OLED |
|---|---|---|---|
| Size | 0.77" | Resolution | 64x128 |
| Interface | 4-Wire Spi | View Angle | Free View Angle |
| Highlight | 0.77-Inch Micro OLED Display,64X128 Resolution Amoled Display,Transparent OLED Micro OLED Display |
||
Product Description
Multi-Purpose 0.77-Inch PMOLED Display with 64×128 Resolution (Driver IC: SSD1312)
Technical Specifications
| Model No. | ESHX07701-64128TBBIG01-RF |
|---|---|
| Drive Mode | PMOLED |
| Application | Consumer Electronics |
| Display Type | OLED Display |
| Panel Size | 12.13 × 23.6 × 1.22 (mm) |
| Active Area | 9.26 × 17.26 (mm) |
| Pixel Size | 0.115 × 0.125 (mm) |
| Number of Pixels | 64 × 128 |
| Drive Duty | 1/128 Duty |
| View Angle | All View |
| Interface | 4-Wire SPI |
| Driver IC | SSD1312 |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Transport Package | Carton |
| Specification | Glass electronic products of 3.6" display |
| Trademark | HuaXin |
| Origin | China |

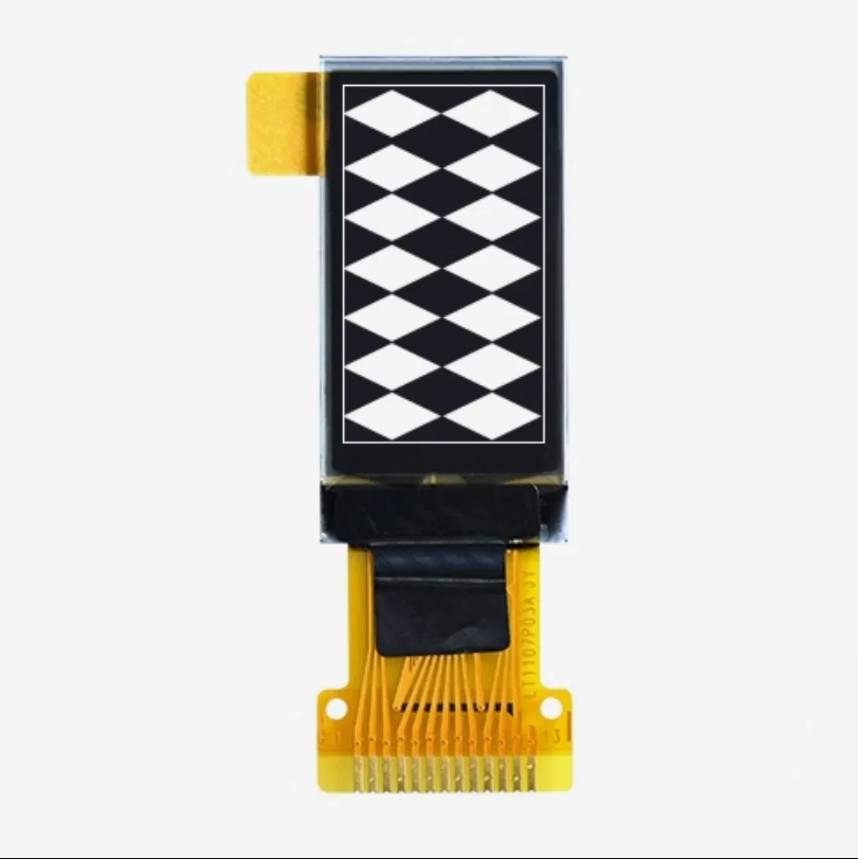

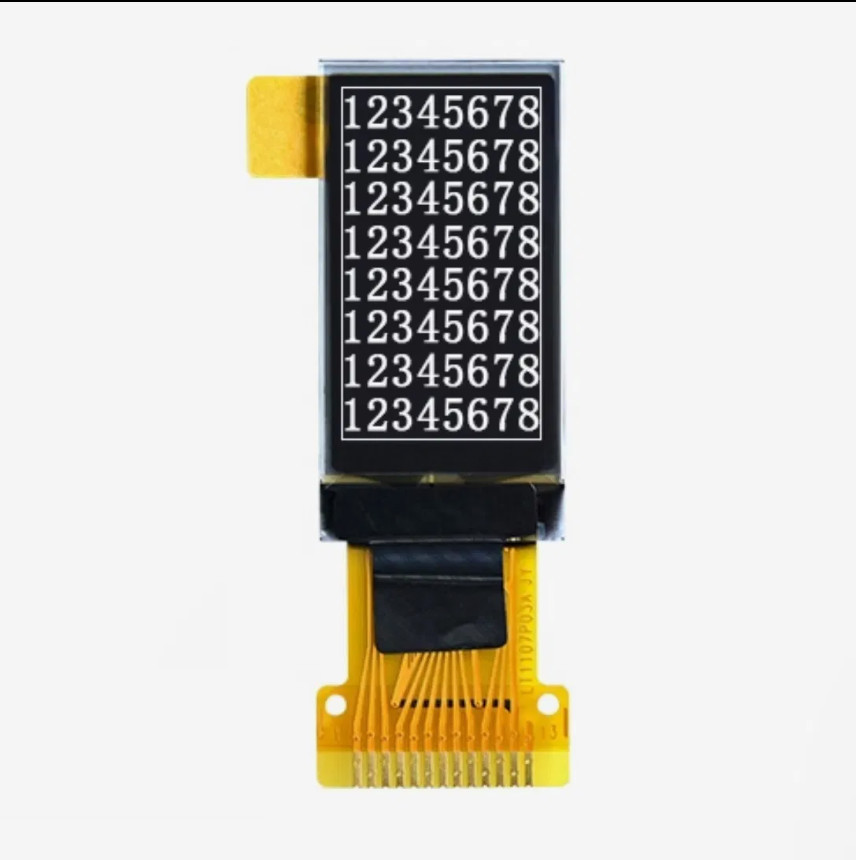

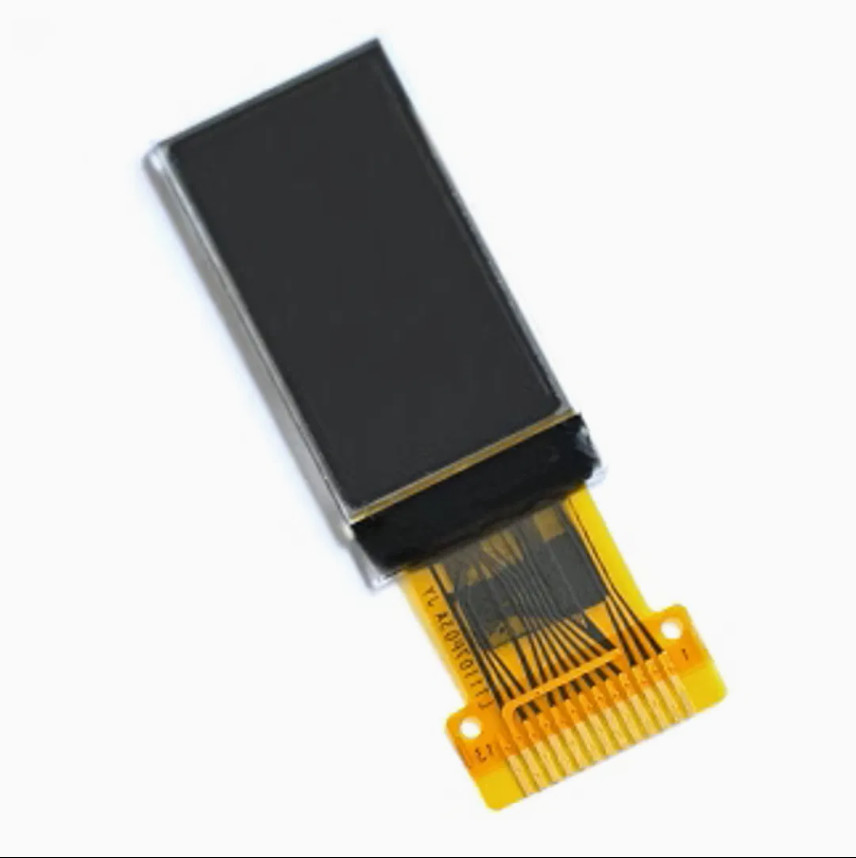

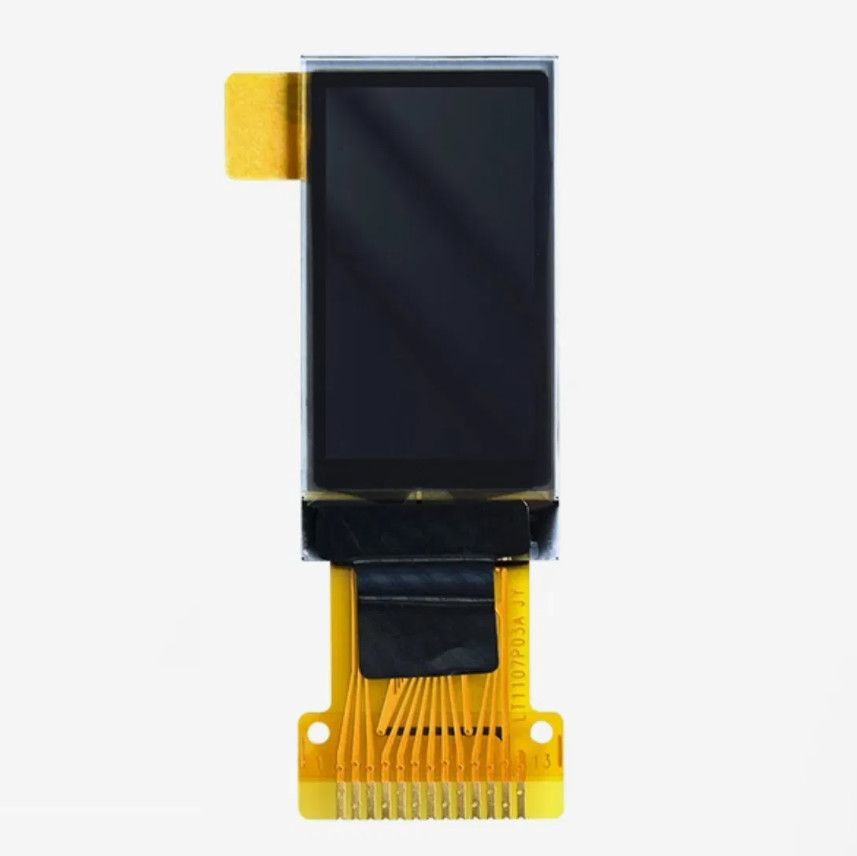

Product Images
Transaction Details
Q: What is your business type?
A: We design, produce and export our products.
Q: What's the shipping terms?
A: All quotations not including shipping costs and customs duties of the importing country, FOBSZ/FOBHK/FOBGZ.
Q: What is the delivery method?
A: UPS/DHL/TNT/SF/FedEx. Customer provides courier company and account number.
Q: What are the payment methods?
A: Our payment terms are TT (telecom transfer) 40% in advance and TT 60% before shipment.
Q: How long is the delivery time?
A: 2 working days for samples, normally our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it, however it still depends on the availability of raw materials and the time of year.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000 pcs/lot, however we can also accept special quantities for trial orders.
Q: Is it possible to customize?
A: Yes, we also customize products according to your requirements.
Q: Is there technical support?
A: We will send full specification, drawing and user guide. Our professional engineers will provide services at anytime.
Q: Where is your main market?
A: We sell and ship our products worldwide. Our main markets are Europe, North America, South America and Asia.
Q: Can we visit your factory?
A: You are welcome to visit us.
OLED Display Advantages
- Excellent Picture Quality: High color saturation and contrast with accurate color reproduction
- Fast Response Speed: Microsecond-level response time eliminates motion blur
- Wide Viewing Angle: Consistent image quality up to 170° viewing angle
- Energy Efficient: Self-emissive pixels reduce power consumption, especially for dark content
- Thin & Flexible Design: No backlight required enables ultra-thin and flexible display solutions
- Always-On Display: Capable of showing limited information with minimal power usage
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Details
| Registered Capital | 20 million |
|---|---|
| Employees | 500+ |
| R&D Staff | 10% |
| QC Staff | 15% |
Production Capacity
| Product | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand Pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand Pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand Pieces/Day |
Product Applications
- Car navigation systems & printers
- Video calling & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Characteristics
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching for smooth motion
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than many alternatives
- Size Flexibility: Available in sizes from small handhelds to large panels
- Backlighting: Typically uses LED backlight systems
TFT Display Limitations
- Limited viewing angles compared to OLED
- Lower contrast ratios than self-emissive technologies
- Backlighting increases power consumption
- Potential motion blur in fast-moving content
- Limited flexibility in form factor
- Color gamut may be narrower than some alternatives
