0.96 Inch Pmoled Display Screen , 128X64, 30 Pin 6800/8080 Interface 4/3 Wire, Driver IC SSD1315

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXO12864-0032-A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology 0.96 Oled Display Name Oled 0.96 Inch
Size 0.96" Resolution 128X64
Driving IC SSD1315 Interface 6800/8080 Interface, 4/3 Wire Serial In
High Light

0.96 Inch Pmoled Screen Display


128X64 Pmoled Screen Display


Pmoled 30Pin Display Screen

Leave a Message
Product Description

PMOLED Display Module 0.96 Inch , 128X64 Resolution, 30 Pin 6800/8080 interface, 4/3 wire serial in, driving IC SSD1315 oled screen module, ESHXO12864-0032-A display color is white and connecting method is soldering

A:Product Parameter

OLED Number ESHXO12864-0032-A
Display Color Y&B
DOTS 128X64
Drive IC SSD1315
Viewing Angle ALL
Interface I6800/8080 interface, 4/3 wire serial interface, I2C
Outline Size 26.7×19.2×1.25mm
View Area 23.74×13.2mm
Dots size 0.15*0.15mm
Dots pitch 0.17*0.17mm
Operating Temp: -30~+70℃
Storage Temp. -30~+80℃

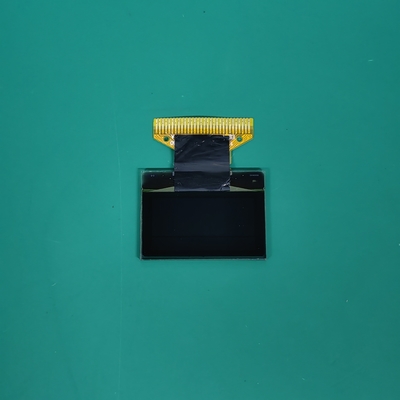

B:Product Picture

0.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 00.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 10.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 20.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 3

C:Drawing &Pin Definition
0.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 4
 0.96 Inch Pmoled Display Screen , 128X64,  30 Pin 6800/8080 Interface 4/3 Wire,  Driver IC SSD1315 5

D: Oled Product Knowledge


OLED Advantages:


OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption



OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT

E: company information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application

1.Wearable Devices
2. Portable Audio Players
3. Thermostats and Home Automation Devices
4. Car Dashboards and Instrument Clusters
5. Medical Device
6.Consumer Electronics

7. Industrial and Professional equipment


H:PMOLED Characteristics


1.Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.


2.Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit. This circuit applies voltage to the selected pixels to activate them.


3. High Contrast and Color Saturation:PMOLED displays offer high contrast ratios and vibrant colors. Since each pixel emits its own light, PMOLEDs can achieve deep blacks and vibrant colors without the need for a backlight.


4. Power Efficiency: PMOLED displays are generally power-efficient. They consume power only for the pixels that are active, as OLEDs emit light when a voltage is applied to them. In contrast, LCD displays require a backlight that consumes constant power regardless of the content being displayed.


5.Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates. This makes them suitable for applications where flexibility or bendability is desired, such as curved displays or wearable devices.


6. Limited Resolution and Size: PMOLED technology has certain limitations compared to other display technologies. PMOLED displays are typically limited in resolution, and their pixel densities are lower compared to active matrix OLED (AMOLED) or LCD displays. Additionally, PMOLED displays are more suitable for smaller-sized screens due to manufacturing constraints.


7. Screen Persistence: PMOLED displays are susceptible to a phenomenon called screen persistence or burn-in, where prolonged display of static images can result in image retention or permanent damage to the display. However, technological advancements have mitigated this issue to a great extent in modern PMOLED displays.


I: What are the advantages of AMOLED displays compared to PMOLED displays?


1.Higher Resolution: AMOLED displays generally have higher pixel densities and resolutions compared to PMOLED displays. This means that AMOLED screens can provide sharper and more detailed images.


2. Better Color Reproduction: AMOLED displays typically offer more accurate and vibrant color reproduction. They can produce a wider color gamut, resulting in more vivid and lifelike images.


3. Faster Refresh Rates: AMOLED displays have faster response times and higher refresh rates compared to PMOLED displays. This makes them better suited for displaying fast-moving content, such as videos or animations, without motion blur or ghosting.

4. Improved Power Efficiency :Although both AMOLED and PMOLED displays are power-efficient compared to LCD displays, AMOLED technology has made significant advancements in power efficiency. AMOLED displays consume less power when displaying dark or black content because each pixel emits its own light and can be individually turned off.


5. Larger Screen Sizes: AMOLED technology enables the production of larger displays compared to PMOLED technology. AMOLED screens can be manufactured in larger sizes without compromising image quality or introducing significant performance issues.


6. Flexibility and Curved Displays: AMOLED displays can be manufactured on flexible substrates, allowing for curved or flexible screens. This flexibility opens up design possibilities for devices with unique form factors, such as curved smartphones or wearable devices.
