2.42 Inch PMOLED Display Module With PCBA, 128*64 Resolution, 7 PINS IIC/SPI Interface

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX2864AxxPG0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Oled 128x64 Display Name Display Oled 128x64
Size 2.42" Resolution 128*64
Interface 7PINS IIC/SPI Driving IC SSD1309
Leave a Message
Product Description

2.42 inch PMOLED display module with PCBA, 128*64 Resolution, 7 PINS IIC/SPI interface

white/blue/yellow/green display color are available,driving IC SSD1309,Active Area 55.02x27.49mm



A:Product Parameter

Part NO. ESHX2864AxxPG0
Display Technology PMOLED
Diagonal Screen Size 2.42 inch with PCBA
Resolution 128*64
Viewing Angle free
Active Area (mm) 55.02x27.49mm
Module Size(mm) 71x43x2mm
Pixel pitch 0.2x0.2
Pixel size 0.18x0.18
Operation Temp -40~70

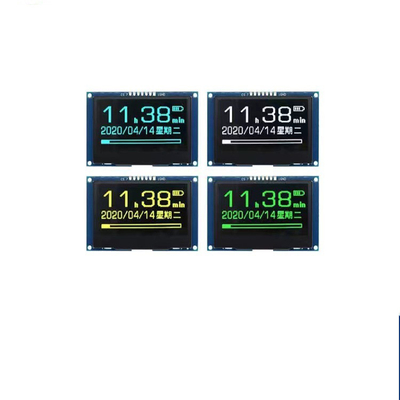

display color white/blue/yellow/green
Interface IIC/SPI
Pin q'ty 7PINS
driving IC SSD1309
Connecting method connector



B:Product Picture

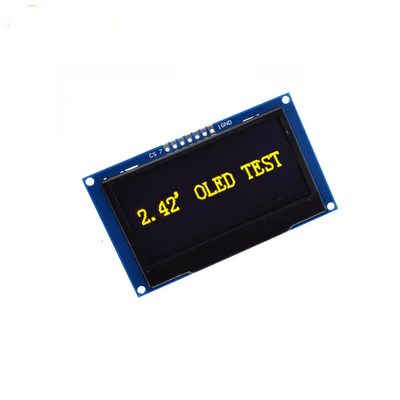

2.42 Inch PMOLED Display Module With PCBA,   128*64 Resolution,  7 PINS IIC/SPI Interface 0

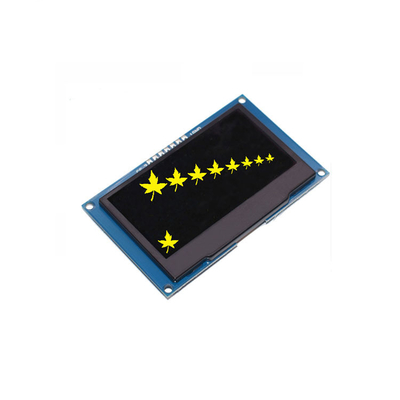

2.42 Inch PMOLED Display Module With PCBA,   128*64 Resolution,  7 PINS IIC/SPI Interface 1

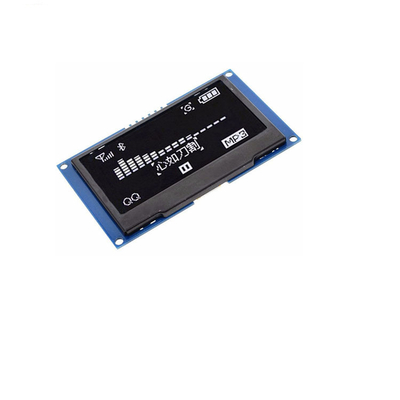

2.42 Inch PMOLED Display Module With PCBA,   128*64 Resolution,  7 PINS IIC/SPI Interface 2
C:Drawing

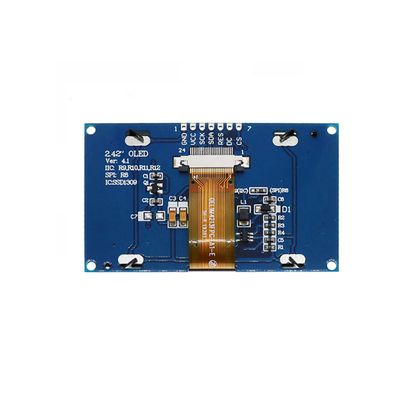

2.42 Inch PMOLED Display Module With PCBA,   128*64 Resolution,  7 PINS IIC/SPI Interface 3
