0.96 Inch PMOLED Display ,128x64 Resolution, 30pins 4 Wire SPI /I2C Interface, Driving IC SSD1306

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX2864KSWPG0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology PMoled Display Name Monochrome Oled Display
Size 0.96" Resolution 128*64
Driving IC SSD1306 Interface 30 Pins 4-wire SPI /I2
Highlight

0.96 inch PMOLED Display

,

PMOLED Display 128x64

,

30pins ssd1306 module

Leave a Message
Product Description

0.96 inch PMOLED Display , 128x64 Resolution, 4-wire SPI /I2C interface, driving IC SSD1306,  ESHX2864KSWPG0 has two kind of color  Blue/yellow,pin q'ty is 30pcs ,applied for fingerprint lock



A:Product Parameter

Part NO. ESHX2864KSWPG0
Display Technology PMOLED
Diagonal Screen Size 0.96 inch
Resolution 128*64
Viewing Angle all
Active Area (mm) 21.74X10.864mm
Module Size(mm) 26.7x19.26X1.4mm
Pixel pitch 0.17x0.17
Pixel size 0.154x0.154
Operation Temp -40~70
display color Blue/yellow
Interface 4-wire SPI /I2C
Pin q'ty 30 pins
driving IC SSD1306
Connecting method soldering


B:Product Picture

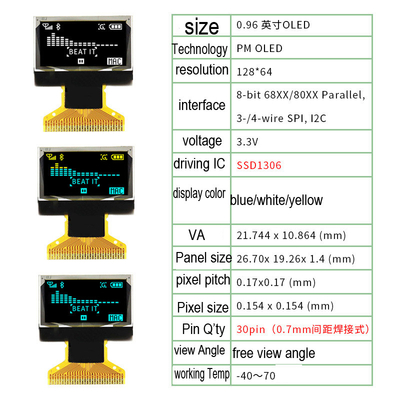

0.96 Inch PMOLED Display ,128x64 Resolution,  30pins 4 Wire SPI /I2C Interface,  Driving IC SSD1306 0

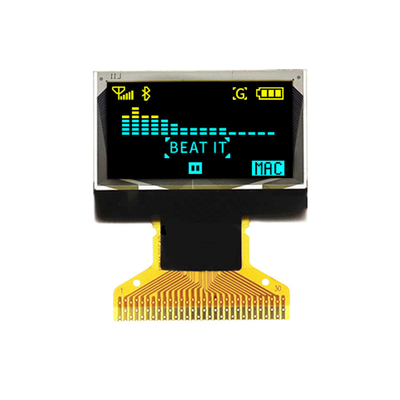

0.96 Inch PMOLED Display ,128x64 Resolution,  30pins 4 Wire SPI /I2C Interface,  Driving IC SSD1306 1

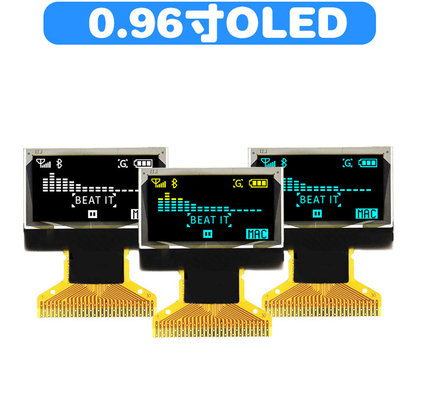

0.96 Inch PMOLED Display ,128x64 Resolution,  30pins 4 Wire SPI /I2C Interface,  Driving IC SSD1306 2


C:Drawing

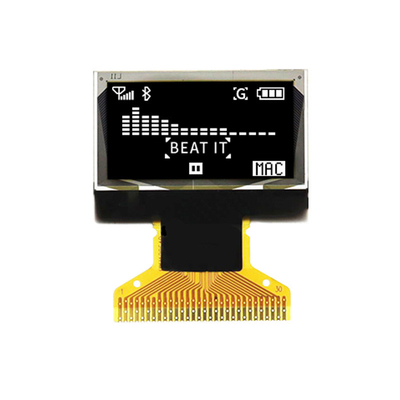

0.96 Inch PMOLED Display ,128x64 Resolution,  30pins 4 Wire SPI /I2C Interface,  Driving IC SSD1306 3


 0.96 Inch PMOLED Display ,128x64 Resolution,  30pins 4 Wire SPI /I2C Interface,  Driving IC SSD1306 4

D:Oled Product Knowledge


OLED Advantages:



OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption



OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1.Wearable Devices

2. Portable Audio Players

3. Thermostats and Home Automation Devices

4. Car Dashboards and Instrument Clusters

5. Medical Device

6.Consumer Electronics

7. Industrial and Professional equipment



H:PMOLED Characteristics



1.Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.



2.Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit. This circuit applies voltage to the selected pixels to activate them.



3. High Contrast and Color Saturation:PMOLED displays offer high contrast ratios and vibrant colors. Since each pixel emits its own light, PMOLEDs can achieve deep blacks and vibrant colors without the need for a backlight.



4. Power Efficiency: PMOLED displays are generally power-efficient. They consume power only for the pixels that are active, as OLED emit light when a voltage is applied to them. In contrast, LCD displays require a backlight that consumes constant power regardless of the content being displayed.



5.Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates. This makes them suitable for applications where flexibility or bendability is desired, such as curved displays or wearable devices.



6. Limited Resolution and Size: PMOLED technology has certain limitations compared to other display technologies. PMOLED displays are typically limited in resolution, and their pixel densities are lower compared to active matrix OLED (AMOLED) or LCD displays. Additionally, PMOLED displays are more suitable for smaller-sized screens due to manufacturing constraints.



7.Screen Persistence: PMOLED displays are susceptible to a phenomenon called screen persistence or burn-in, where prolonged display of static images can result in image retention or permanent damage to the display. However, etc



I: What are the advantages of AMOLED displays compared to PMOLED displays?

1.Higher Resolution:

2. Better Color Reproduction

3. Faster Refresh Rates

4. Improved Power Efficiency :

5. Larger Screen Sizes:

6. Flexibility and Curved Displays:
