2.1 inch round TFT display module with 540x540 resolution, 350c/d brightness and MIPI interface
Product Details
| Display Technology | Round TFT Display | Name | 2.1 Inch Round TFT |
|---|---|---|---|
| Size | 2.1 " | Resolution | 540x540 |
| Interface | MiPi | Driving IC | JD9261T |
| View Angle | Free View Angle | Brightness | 350c/d |
Product Description
2.1 inch TFT round display 540x540 resolution, driving IC JD9261T,MIPI Interface, all view angle
Technical Specifications
| Part NO. | HX21HD002A |
| Display Technology | TFT display module |
| Diagonal Screen Size | 2.1 inch round TFT |
| Active Area (mm) | 53.14*53.14 |
| Panel size(mm) | 56.18x59.71x2.46 |
| Brightness(cd/m2) | 350c/d |
| Resolution | 540x540 |
| Interface | MIPI |
| View angle | ALL |
| Driving IC | JD9261T |

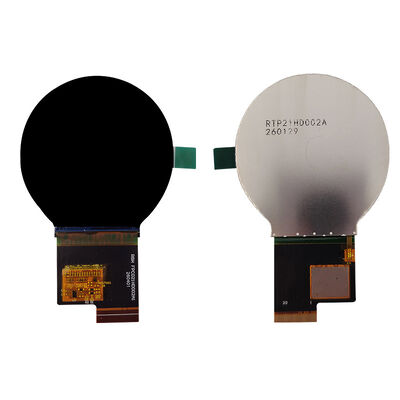

Product Picture
TFT Technology Overview
Manufacturer Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Most processes use fully automatic equipment for efficiency
- Professional engineers with 20+ years experience in LCD field
- Self-design capability for customized products
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS Certification for LCD modules
Product Range
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
- Registered capital: 20 million
- Current staff: 500+ employees
- R&D accounts for 10% of workforce
- Quality control accounts for 15% of workforce
Production Capacity
| Annual Production Capacity | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive displays & medical devices
- Fitness equipment & handheld devices
- Industrial control systems and home appliances
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching (40ms)
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: Lower power consumption than other display technologies
- Size and Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: LED backlight system for illumination
- Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
- Viewing Angles: Some limitations compared to other technologies
- Contrast Ratio: Not as high as some alternatives
- Power Consumption: Backlighting increases power needs
- Motion Blur: Potential for blur in fast-moving images
- Flexibility: Limited compared to newer display types
- Color Gamut: Somewhat restricted color range
