1.39 Inch Round Display, TFT LCD 360x360 , 15 Pins QSPI Interface, 400 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX139TFN10A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Tft Lcd Name Round TFT Display
Size 1.39 " Resolution 360x360
Brightness 400cd/m2 Drive IC GC9B71
View Angle Free Interface QSPI
High Light

1.39 inch round display tft lcd

,

round display TFT LCD 360x360

,

400 CD/M2 round lcd screen

Leave a Message
Product Description

ESHX139TFN10A  is 1.39  inch round TFT display module ,360x360 Resolution, 15 pins QSPI interface, brightness is 400 cd/M2 TFT lcd  and lcd  display Driver IC is GC9B71  and View angle is free



A:Product Parameter

ITEM specification
Model Number ESHX139TFN10A
size 1.39 inch round TFT
LCD Type IPS
Number of pixels 360x360
Active area 36.3X35.3MM
OutlineSize(W*H*T) 39.77X37.8X1.41MM
Viewing direction FREE
LCM Driver IC GC9B71
LCM interface QSPI
PIN number 15pins
operating temperature -20~70
storage temperature -30 to +80
Luminance 400 c/d


B:Product Picture

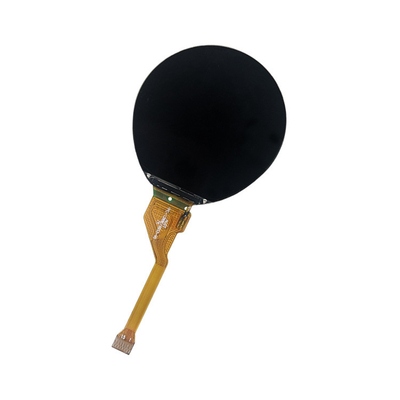

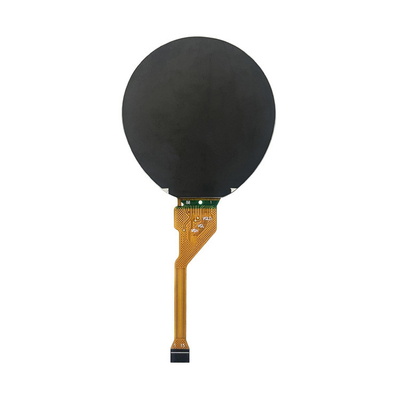

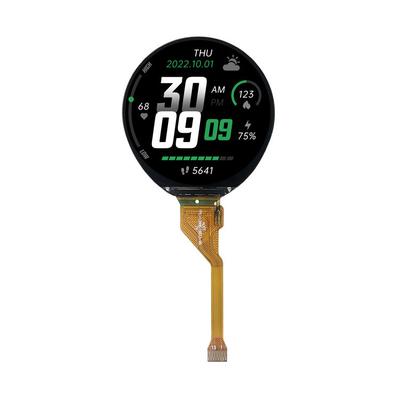

1.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 01.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 11.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 21.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 3


C: Drawing

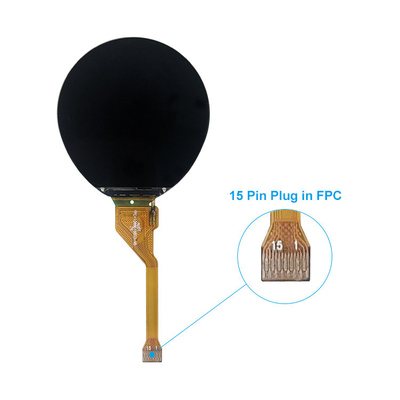

 1.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 4

1.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 5

D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 6



TFT structure  as below

1.39 Inch Round Display, TFT LCD 360x360 ,  15 Pins QSPI Interface,  400 CD/M2 7
