5 Inch Round LCD Display, 1080x1080 50 Pins MIPI Interface 350CD/M2

Place of Origin China
Brand Name huaxin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX050YMM-J40
Minimum Order Quantity 1000pcs
Price negotiation
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Round Application Automotive
Size 5" Resolution 1080x1080
Brightness 350cd Interface MIPI
Name TFT Round Lcd
Highlight

5 inch tft display 350CD/M2

,

round lcd display 1080x1080

,

round lcd display 50pins

Leave a Message
Product Description



ESHX050YMM-J40 is 5 Inch Round Tft Display 1080x1080 Resolution 50 Pins MIPI Interface, brightness is  350CD/M2 apply for automative, lcd Module Driver IC is HX8399C and view angle is freeyou can download datasheet from this link:ESHX050YMM-J40 SPECIFICATION.pdf



A:Product Parameter

Part No: ESHX050YMM-J40
Panel size 5 inch round TFT
LCD type IPS
Module Size 129.808 ×133.258
Display Area 127.008× 127.008
Number of Dots 1080*1080
View angle free view angle
Module Driver IC HX8399C
CTP Driver IC
Interface Pins 50 PINS mipi
LED Numbers 6 LEDS
Luminance 350cd/m2
Operating Temp -20_60
Storage Temp -30~70
with or without TP



B:Product Picture

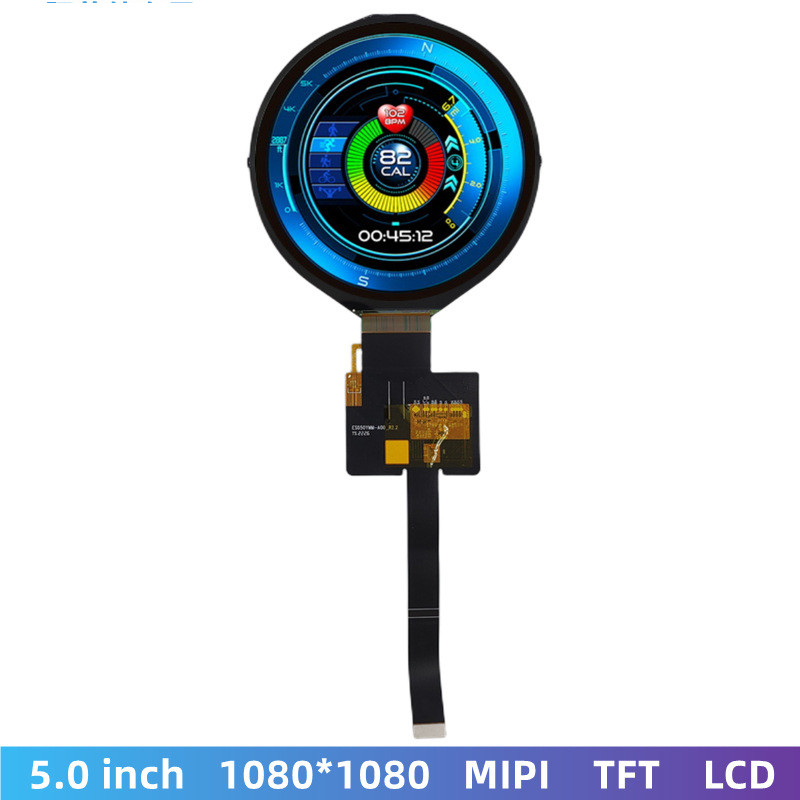

5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 0

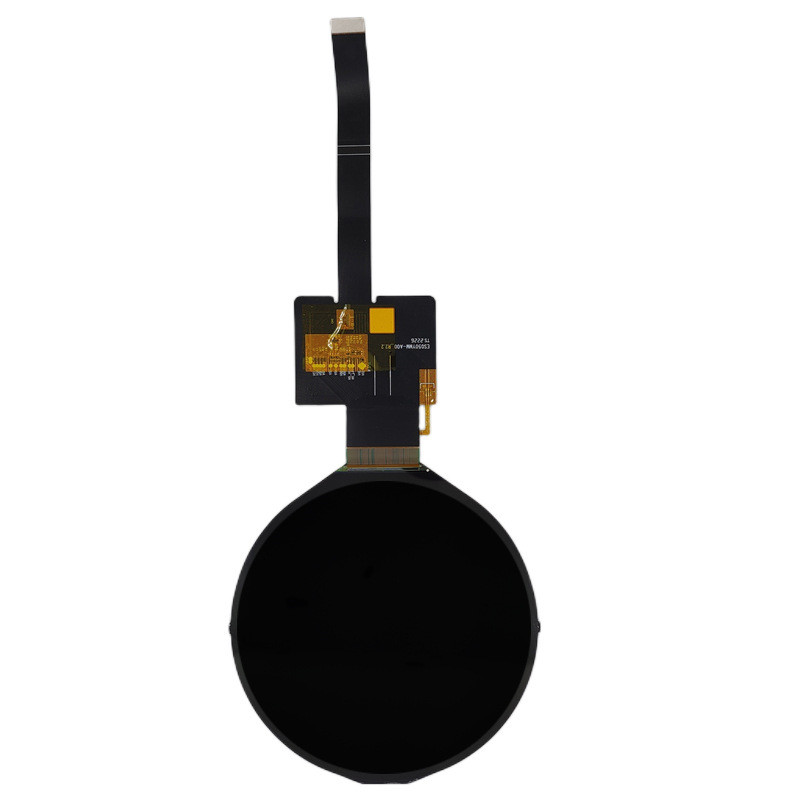

5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 1

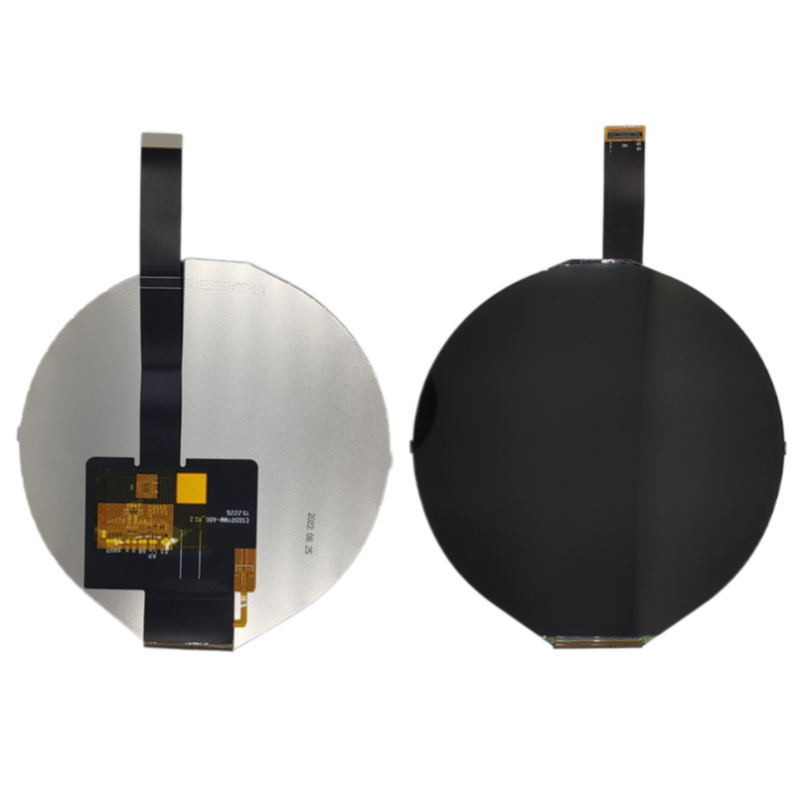

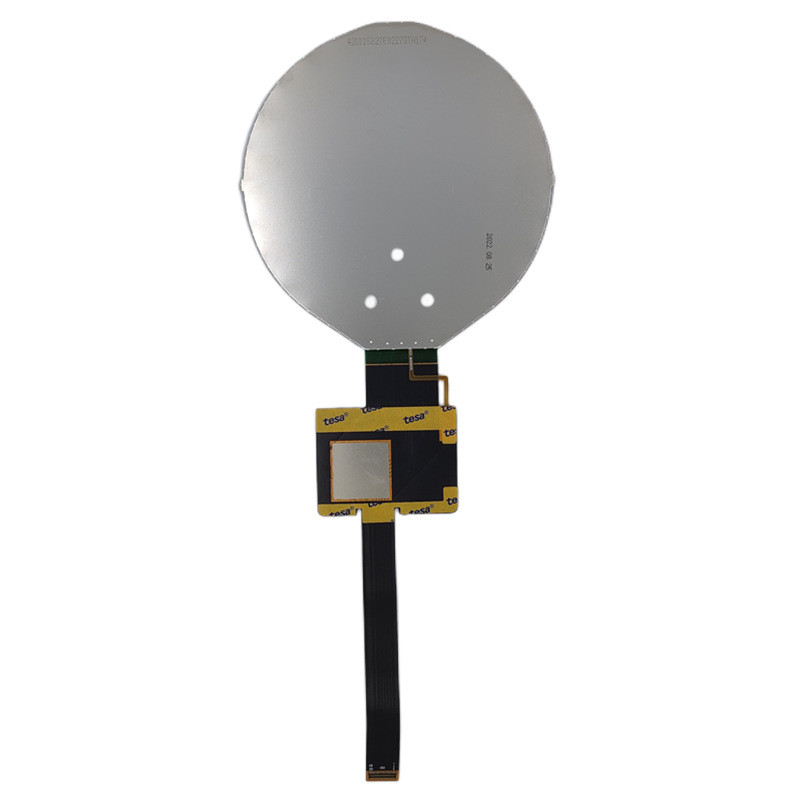

5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 2

C:Drawing

5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 3



D:TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below


5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 4



TFT structure as below

5 Inch Round LCD Display,  1080x1080 50 Pins MIPI Interface 350CD/M2 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
