0.62 Inch Micro OLED Display Module with 1728*1368 Resolution MIPI Interface and 1800 C/D Brightness
Product Details
| Display Technology | MICRO OLED Display | Name | Oled Module |
|---|---|---|---|
| Size | 0.62" | Resolution | 1728*1368 |
| Brightness | 1800cd/m2 | Interface | MIPI |
| Color Mode | RGB/MONO-G | ||
| Highlight | 0.62 Inch micro oled display module,1728*1368 micro oled display module,MIPI Interface micro oled display module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
0.62 Inch Micro OLED Display Module 1728*1368 Resolution MIPI Interface 1800 C/D For Optimal Display
HX062WAM01 is a 1.85 inch AMOLED OLED module featuring 1728*1368 resolution, MIPI interface, and brightness of 1800 Cd/M² color OLED display.
Product Parameters
| Parameter | Specification |
|---|---|
| Part No. | HX062WAM01 |
| Display Mode | 0.62 inch micro OLED display |
| Outline Size (mm) | 21.09*22.77*1.5 |
| AA Size (mm) | 12.4416*9.8496 |
| Display Dots | 1728*1368 |
| View Angle | All |
| Frame Rate | 30Hz~90Hz |
| Brightness | 1800 c/d |
| Interface | MIPI |
| Contrast Ratio | 500,000:1 |
| Color Mode | RGB/MONO-G |

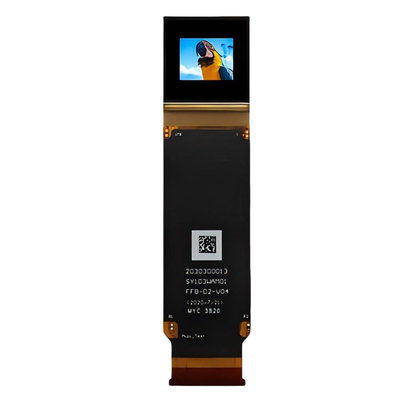

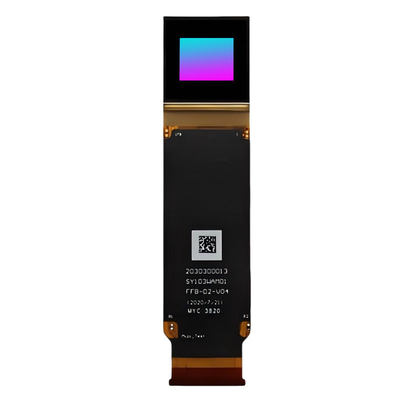

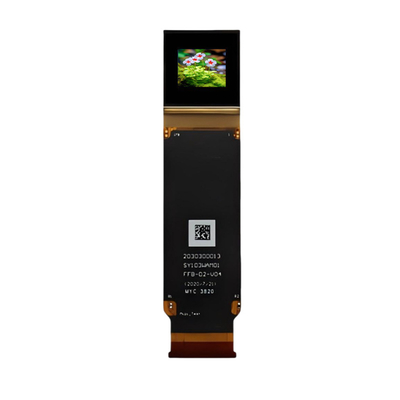

Product Images
OLED Product Knowledge
OLED Advantages:
- Lighter and thinner than LCDs
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages:
- Higher cost compared to LCD and TFT
- Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantages:
- Cost-effective factory base located in inland city
- Most advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality
- Professional engineers with 20+ years experience in LCD field
- Custom product design capabilities
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Details:
- Huaxin Technology (Enshi) Co., LTD
- Hubei, Enshi
- Founded: 2009
- High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD product lines: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM product lines: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Color Accuracy and Vibrancy
- Wide Viewing Angles
- Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
- AMOLED displays consume power per-pixel (dark pixels consume very little power)
- LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
- AMOLED more efficient for dark content (pixels can be turned off)
- LCD/LED power consumption remains constant regardless of content
3. Brightness Control:
- AMOLED can adjust brightness per-pixel for better efficiency
- LCD/LED typically have fixed backlight brightness
4. Display Size:
- AMOLED more efficient for smaller displays (power scales with pixels)
- Larger LCD/LED may require more power-hungry backlights
