5" TFT Type LCD Screen 1080*1080 Super Clear Round Display LCM
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX5001-Round TBBIG01-RF |
| Minimum Order Quantity | 1000 |
| Price | US$55.00 / Piece （FOB） |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | LCD Display | Name | 5 Inch TFT |
|---|---|---|---|
| Size | 5.0" | Resolution | 1080x1080 |
| Interface | MiPi | 3D | Not 3D |
| View Angle | Free View Angle | ||
| Highlight | Round Display TFT Type LCD Screen,5” TFT Type LCD Screen,1080*1080 TFT Type LCD Screen |
||
You can tick the products you need and communicate with us in the message board.
Product Description
5" TFT Type LCD Screen 1080*1080 Super Clear Round Display LCM
The ESHX5001-Round TBBIG01-RF is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as active switching devices. This model consists of a TFT-LCD Panel, driving circuit, and backlight system. It features a transmissive type display operating in normal black mode with a 5.0 inch diagonally measured active area and FHD resolution (1080*1080 pixel array). Each pixel contains Red, Green, and Blue dots arranged in 1pixel 2 domain configuration, capable of displaying 16.7 million colors.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model NO. | ESHX5001-Round TBBIG01-RF |
| Optimum Resolution | 1080*1080 |
| Type | TFT |
| Widescreen | Widescreen |
| Response Time | 40ms |
| 3D | Not 3D |
| Interface Type | Mipi |
| Operating Temperature | -20 to 70ºC |
| Storage Temperature | -30 to 80ºC |
| Input Voltage for Analog | Vdd+0.3 |
| Power Supply Voltage for Logic | 0.3~3.3 V |
| Transport Package | Carton |
| Specification | Glass electronic products of 5" display |
| Origin | China |

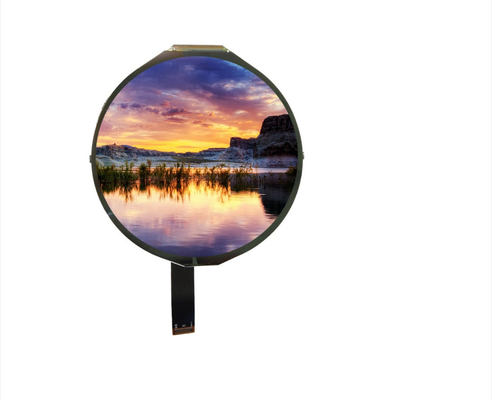

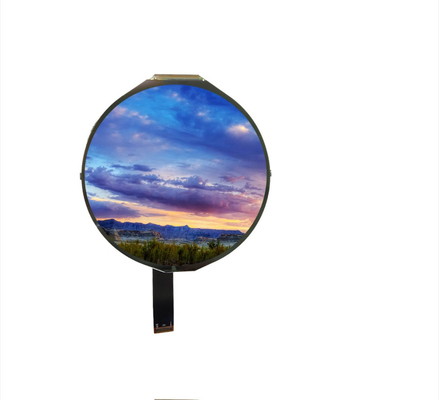

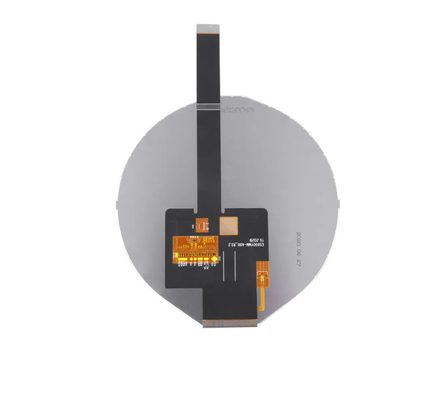

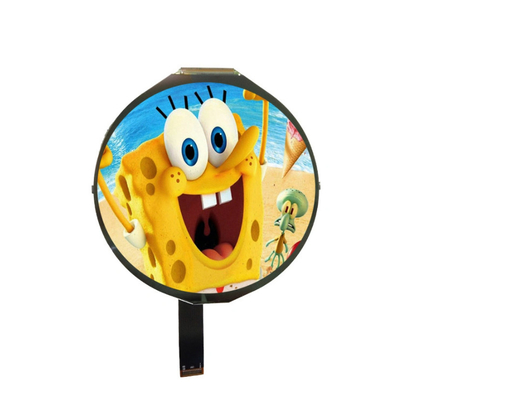

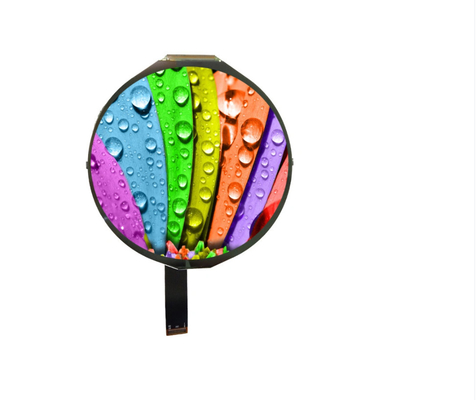

Product Images
TFT Product Knowledge
Company Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Business: High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Location: Hubei, Enshi
Founded: 2009
Business: High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Most processes use fully automatic equipment for efficiency
- Professional engineers with 20+ years experience in LCD field
- Self-design capability for customized products
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Product Range
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliances
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast switching of pixels (40ms)
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: Lower power consumption than other display technologies
- Size and Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: LED backlight system for illumination
- Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
- Viewing Angles: Some limitations compared to other technologies
- Contrast Ratio: Not as high as some alternatives
- Power Consumption: Backlighting increases power needs
- Motion Blur: Potential for blur in fast-moving images
- Flexibility: Limited compared to newer display types
- Color Gamut: Somewhat restricted color range
