1.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHXMSP1601
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Uart Display Name Serial Port Screen
Size 1.6" Resolution 130X130
View Direction All Interface Uart
High Light

1.6 inch TFT display

,

130X130 resolution TFT display

,

PCBA TFT display

Leave a Message
Product Description

ESHXMSP1601   is 1.6  inch Uart tft  display 130x130  resolution , free view direction , interface is Uart,115200(Bps) communication rate, 64~128m flash capacity



A:Product Parameter

Part number ESHXMSP1601
Screen Size 1.6(inch)
Type TFT
Driver IC SSD1283A
Resolution 130*130 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 28.86x28.86(mm)
Module PCB Size 35.40X53.82X1.6(mm)
Angle of view >60°
Operating Temperature -10℃~60℃
Storage Temperature -20℃~70℃
VCC power voltage 3.3V/5V
Power Consumption TBD
Rough Weight(Package containing) 15(g)

B:Product Picture

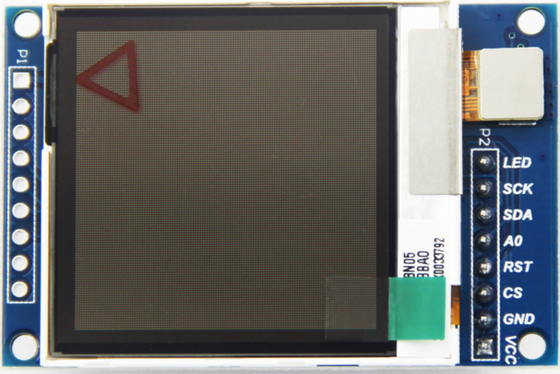

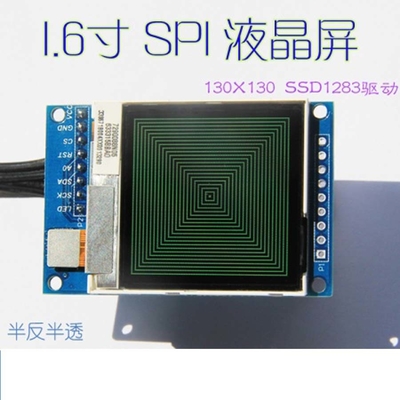

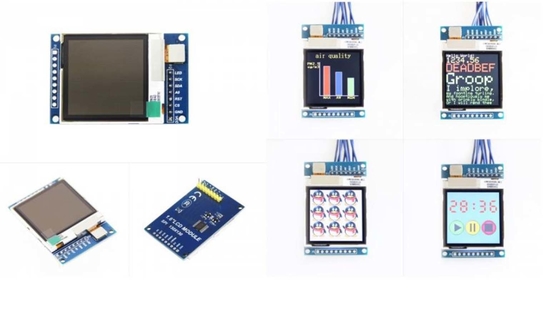

1.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable 01.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable 11.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable 2



C:Drawing

.................................................................................................







D. TFT product knowledge

tft substrate input and CF substrate input flow chart as below


1.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable 3



TFT structure as below

1.6 inch TFT display with PCBA 130X130 resolution 4-wire SPI interface driving IC SSD1283A, sunlight readable 4
