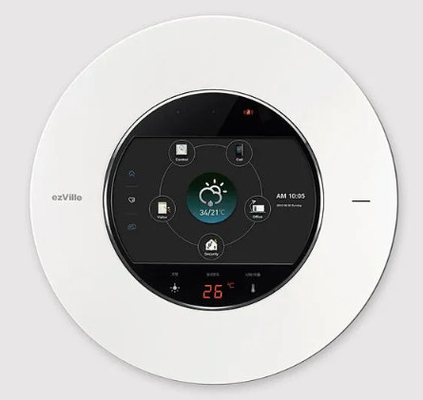

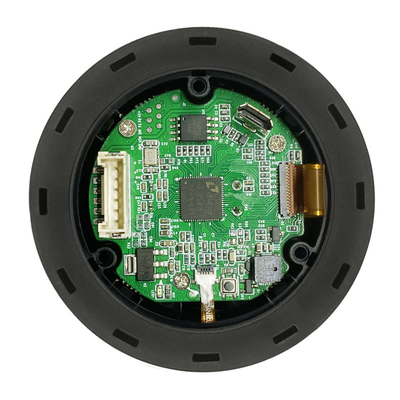

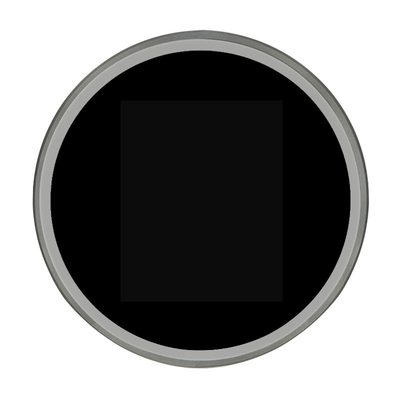

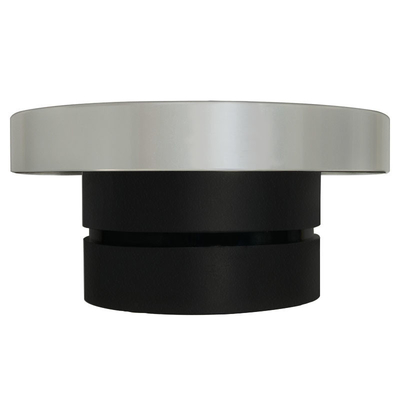

2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors

  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
  • 2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors
Place of Origin CHINA
Brand Name HUAXIN
Certification ISO9001，
Model Number ESHX2432C24_DG8B_IN1A
Minimum Order Quantity 1000
Price USD
Packaging Details Universal packaging
Delivery Time 6~8week
Payment Terms T/T
Supply Ability 100K/M
Product Details
SIZE 1.28/1.3/1.6/2.1/2.4INCH
Highlight

65K Round Serial Port Display

,

2.4 inch Round Serial Port Display
You can tick the products you need and communicate with us in the message board.
TFT Number ESHX2432C24_DG8B_IN1A
TFT SIZE 2.4INCH
Display format 240×RGB×320dots
Viewing Direction ALL
Drive IC TBD
Interface UART Mode
Power voltage 3.3V(typ.).
Outline Size 79(W) x79(H) x 36.8mm
LCD active area 36.7mm×48.9mm
Color configuration RGB stripes
Operating Temp: -20~+70℃
Storage Temp. -30~+80℃
Leave a Message
TFT Number ESHX2432C24_DG8B_IN1A
Product Description

Core:Based on 32-bit RSIC core

Size:2.4 Inches

Resolution:240x320 pixels

Color:65K Colors,

LCD Type:IPS screen IPS TFT LCD

AA:36.7mm (H)x 48.9mm (V)

Brightness:300 nit

Operating Voltage:5V

Rated Current:120mA

Operating Temperature:-20~70

Storage Temperature :-30~80C

UART Mode:C8N1

UART Voltage:TTL3.3V

FLASH:Up to 128MB

UI Platform:UI_Editor-Ⅱ

ESHX2432C24_DG8B_IN1AV1.1.pdf



2.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors 02.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors 12.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors 22.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors 32.4 Inch Round Serial Port Display UART Mode 8N1 Application Of Household Appliance Knobs,65K (65536) Colors 4
