3.5 Inch Uart Tft Display 14pins SPI Interface 320x480 TTL Interface With Touch Panel

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX3548S035R
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Module Name Uart Tft Display
Size 3.5" Resolution 320x480
Brightness 300cd/m2 Interface TTL
High Light

3.5 Inch Uart Tft Display

,

UART TFT Display 14pins

,

320x480 tft touch screen

Leave a Message
Product Description

ESHX3548S035R  is 3.5  inch Uart tft  display with RTP , 320x480 resolution 14 pins TTL interface brightenss is 300 nit,Driving IC is ILI9488 and view angle is 12:00



A: Product Parameter

Part No: ESHX3548S035R
Panel Size 3.5 inch TFT uart screen
Resolution 320x480
Interface 14 pins 4-wire SPI Uart
Module Size(mm) 99X54.9
Display Area(mm) 86X50
View angle 12:00 O'clock
Voltage 10VCC=VCC=2.8~3.3V
Backlight 4 leds,80mA
Working Temp -20~70
storage Temp -30~80
Touch panel RTP
connecting method soldering
weight 48g
brightness 300c/d
drving IC ILI9488

B:Product Picture

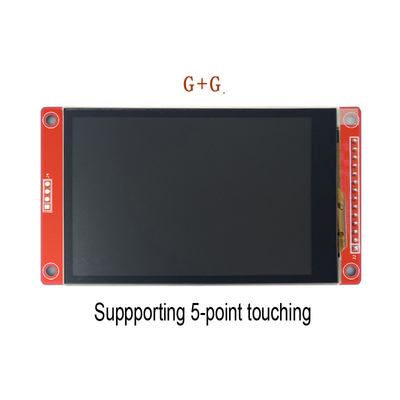

3.5 Inch Uart Tft  Display 14pins SPI Interface 320x480  TTL Interface With Touch Panel 0

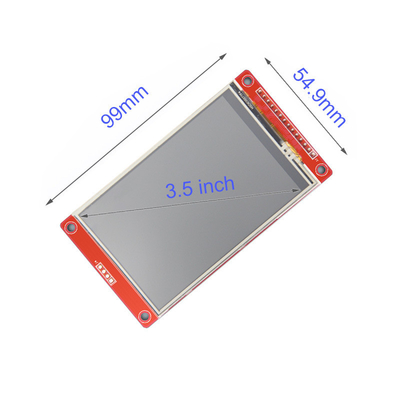

3.5 Inch Uart Tft  Display 14pins SPI Interface 320x480  TTL Interface With Touch Panel 1

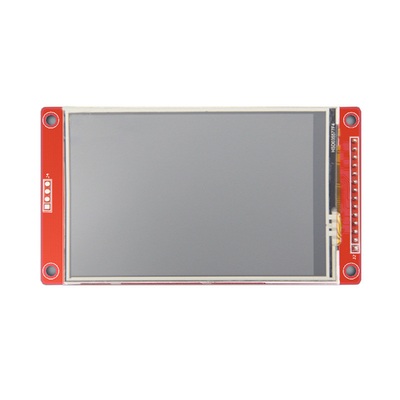

3.5 Inch Uart Tft  Display 14pins SPI Interface 320x480  TTL Interface With Touch Panel 2
