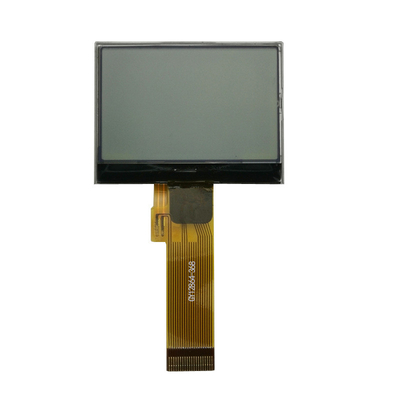

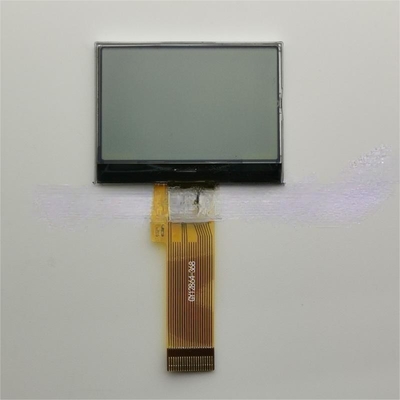

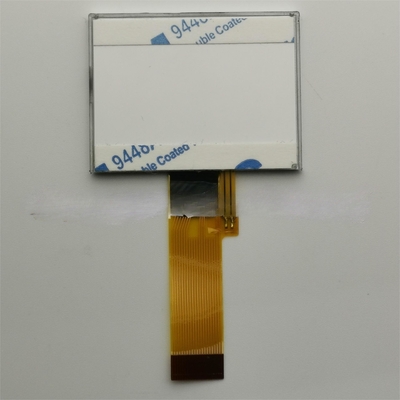

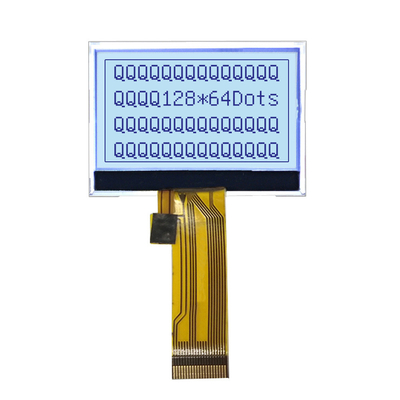

1.64 inch mono LCD display FSTN/POSITIVE/transflective 1/64 Duty 1/9Bias, 128x64 resolution

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX12864368
Delivery Time 6~8weeks

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Driving Method Serial/parallel Module Size 93.0x70.0x12.0mm
Operating Tem -30℃~80℃ Customize Support
Voltage 1/64Duty,1/9Bias Lcd Type STN/TRANSFLECTIVE
Resolution 128x64
High Light

1.64 inch mono LCD display

,

128x64 mono LCD display

,

1/64Duty mono LCD display

Leave a Message
Product Description

Product Description:

The Dot Matrix LCD Module utilizes STN/TRANSFLECTIVE technology to provide high-quality images and text that are easy to read under different lighting conditions. Whether it's bright sunlight or low light, the module offers excellent visibility and clarity, making it a popular choice for Industrial LCD Displays used in a wide range of applications.

The I2C/SPI/Parallel Interface Types of the Dot Matrix LCD Module allow for easy integration with a variety of systems and devices. The module can be easily connected to microcontrollers, processors, and other devices, making it a versatile choice for Industrial LCD Displays used in different applications.

Overall, the Dot Matrix LCD Module is a reliable and durable choice for Industrial LCD Displays that require high-quality images and text in extreme environments. With its STN/TRANSFLECTIVE LCD Type, 320x240 Dot Format, and I2C/SPI/Parallel Interface Types, the module is a popular choice for a wide range of applications, from industrial automation to medical devices.



Features:

  • Product Name: Dot Matrix LCD Module
  • Customize: Support
  • Interface Type: I2C/SPI/Parallel
  • Dots: 128X64
  • Input Voltage: 3.3/5.0V DC
  • Item: 2.2 Inch Dot Matrix Lcd Display Module
  • COB LCD Display Module
  • Industrial LCD Display
  • 7 Inch LCD Module


Technical Parameters:

LCD Number ESHX12864368
display mode 1.64 inch FSTN/POSITIVE/transflective
DOTS 128X64
View angle 12:00 CLOCK
MODULE SIZE(MM) 42x31.6x3
active area(mm) 38x24.3
Drive method 1/64Duty,1/9Bias,2.8v
Operating Temp: -20°C~70°C
ASSEMBLY TYPE COG+FPC
Driving IC ST7567

Applications:

With its I2C, SPI, and parallel interface options, the HuaXin Dot Matrix LCD Module is easy to integrate into a wide range of devices. And with its 6:00 view angle, users can easily see the display from any angle, making it perfect for use in applications where visibility is critical.

The HuaXin Dot Matrix LCD Module is also highly customizable, with support for custom LCD displays that can be tailored to your specific needs. Whether you need a display with a specific size, resolution, or color depth, the HuaXin Dot Matrix LCD Module can be customized to meet your requirements.

And with its compact dimensions of 102.80*41.90*9(mm), the HuaXin Dot Matrix LCD Module is perfect for use in applications where space is at a premium. Whether you're designing a compact medical device or a portable industrial control panel, this LCD module is sure to fit the bill.

Finally, the HuaXin Dot Matrix LCD Module is built to withstand the toughest conditions. With a storage temperature range of -30°C to 80°C, this industrial LCD display panel is designed to operate reliably even in harsh environments.



Customization:



Support and Services:

The Dot Matrix LCD Module product technical support and services include:

- Product installation and testing guidance

- Troubleshooting assistance for any technical issues

- Repair and replacement services for defective products

- Firmware and software updates

- User manual and documentation
