20x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX823102IFVA
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Mode VA/NEGATIVE/TRANSMISSIVE/6H/FPC Name Character Mono Lcd Modules
DUTY 1/4 BIAS 1/3
VOP 5V
High Light

16x2 character lcd display STN

,

16x2 character lcd display FSTN

,

backlight 1602 lcd module

You can tick the products you need and communicate with us in the message board.
DISPLAY TPYE VA
DISPLAY MODE NEGATIVE
POLARIZA MODE TRANSMISSIVE
VIEW DIRECTION 6:00
DUTY 1/4
BAIS 1/3
VOP 5
Leave a Message
DISPLAY TPYE VA
Product Description

ESHX821076IPVA is VA  character LCD, driving method is 1/2 duty,1/2 bias,VOP=5V, display mode is TRANSMISSIVE,NEGATIVE,ASSEMBLY TYPE is LCD+PIN, view

angle is 12:00VA/NEGATIVE/TRANSMISSIVE/6H/FPC



A: Product Parameter

LCD Number ESHX823102IFVA
display mode VA/NEGATIVE/TRANSMISSIVE/6H/FPC
Applicable Duty Ratios 1/4 Duty
Voltage follower (LCD bias : 1/3)
MODULE SIZE(MM) 100.6*30.1*2.9mm
View Area 96*22.25mm
Drive method 1/4 duty,1/3 bias,
PIN 'QTY 32PIN
View Direction 6 O’Clock
ASSEMBLY TYPE LCD+FPC
Operation Temp. -20~+70℃
Storage Temp. -30~+80℃



B: Product Picture

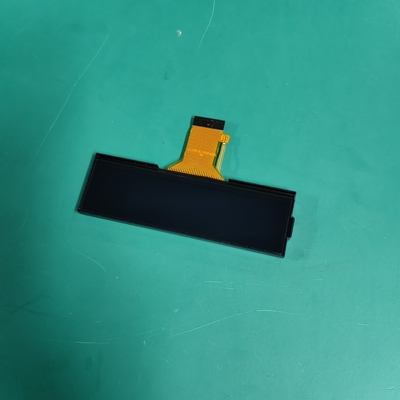

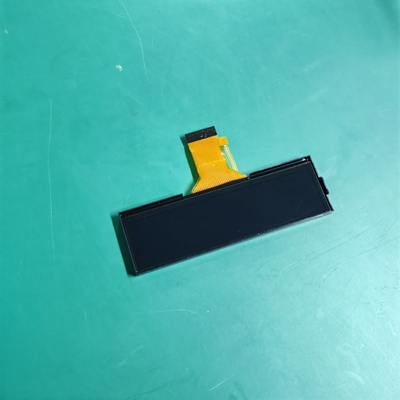

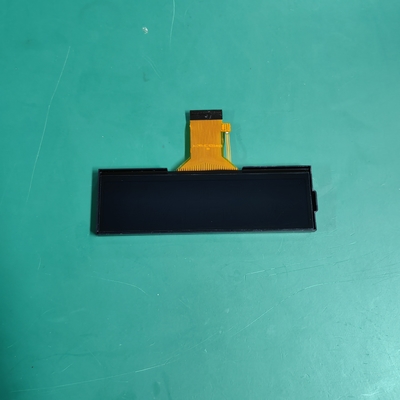

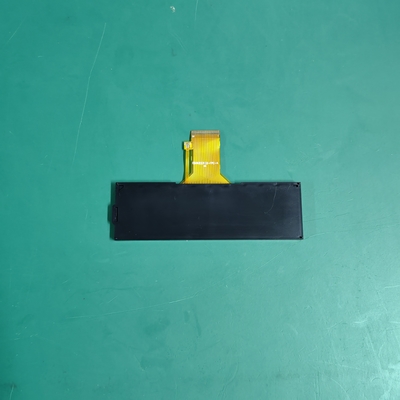

20x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 020x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 120x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 220x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 320x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 4



C: Drawing

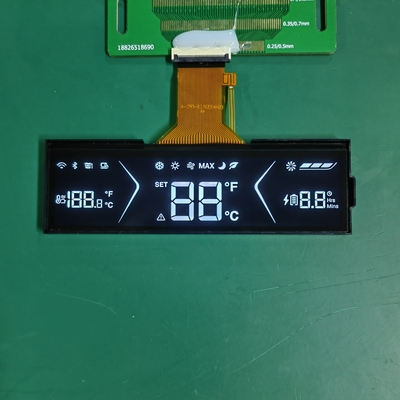

20x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 5



D:LCD Product Knowledge


LCD advantage


Tooling charge and unit price are much cheaper than TFT and oled.



LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

20x4 8x1 16x2 character LCD display STN Fstn 1602 LCD Module Customized Backlight Optional 6
