Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX12850DF0001D
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Display Mode DFSTN/ TRANSMISSIVE/NegativeNegative Name Character Mono Lcd Modules
DUTY 1/55 BIAS 1/8
VOP 5.0V
High Light

Monochrome Lcd Display 240x128


Transmissive Character LCD Module


DFSTN character lcd module

You can tick the products you need and communicate with us in the message board.
DUTY 1/55
BAIS 1/8
VOP 5.00
Leave a Message
Product Description

ESHX12850DF0001D  character LCD, driving method is 1/55 duty,1/8 bias,VOP=5.0V, display mode is TRANSMISSIVE,Negative,ASSEMBLY TYPE is FOG+BL,12PINS, view angle is 12:00

DFSTN/ TRANSMISSIVE/Negative,128 segment output/ 50 common outputs


A: Product Parameter

LCD Number ESHX12850DF0001D
display mode DFSTN/ TRANSMISSIVE/Negative
Driver output circuits 128 segment output/ 50 common outputs
Applicable Duty Ratios 1/55 Duty
On-chip Display Data RAM Capacity: 6 5 × 132 = 8580 bits
Microprocessor Interface 4W-SPI interface
On-chip Low Power Analog Circuit On-chip oscillator circuit
Voltage follower (LCD bias : 1/8)
MODULE SIZE(MM) 68.0×35.0×3.9mm
Display type 128*50
Drive method 1/55 duty,1/8 bias,VOP=5.0V
Operating Temp: ‘-0+50
drive IC ST7567A
View Direction 12 O’Clock
Backlight color white
Operation Temp. -20~+70℃
Storage Temp. -30~+80℃


B:Product Picture

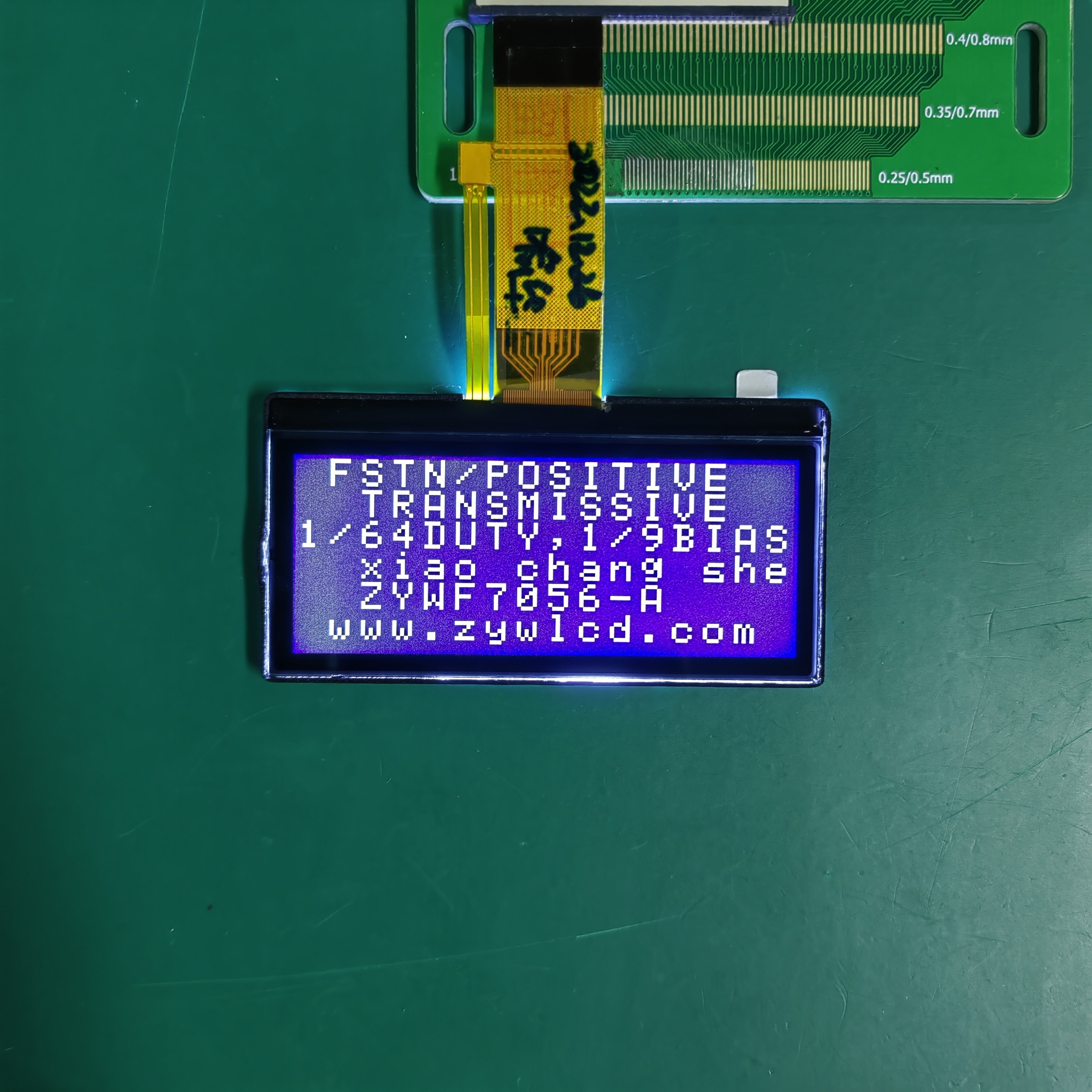

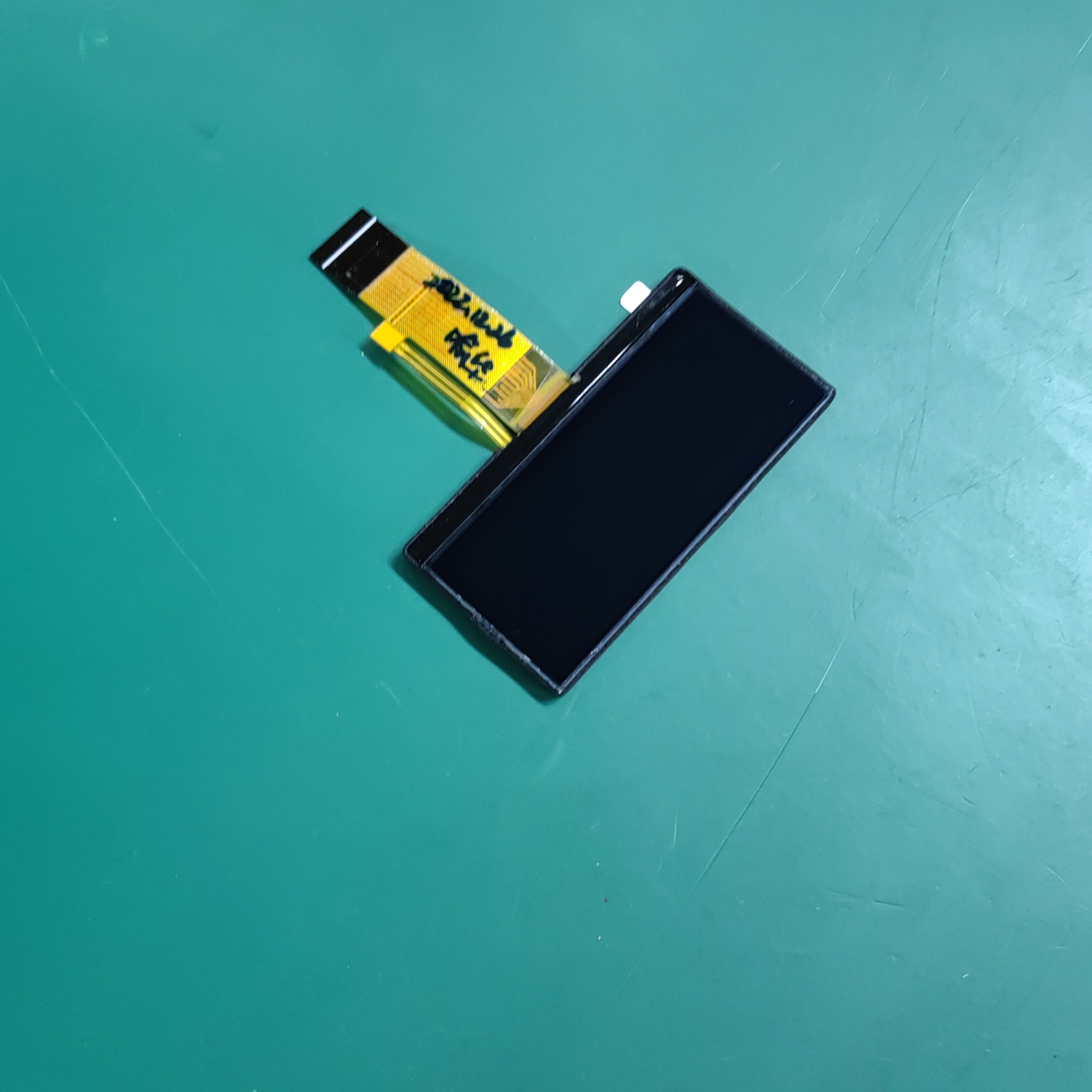

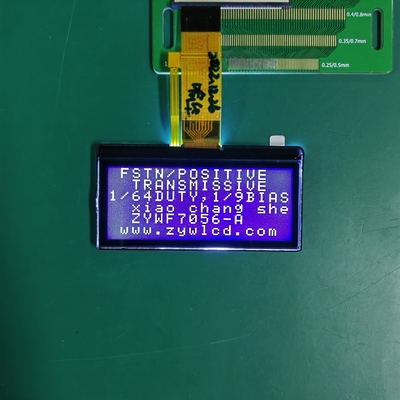

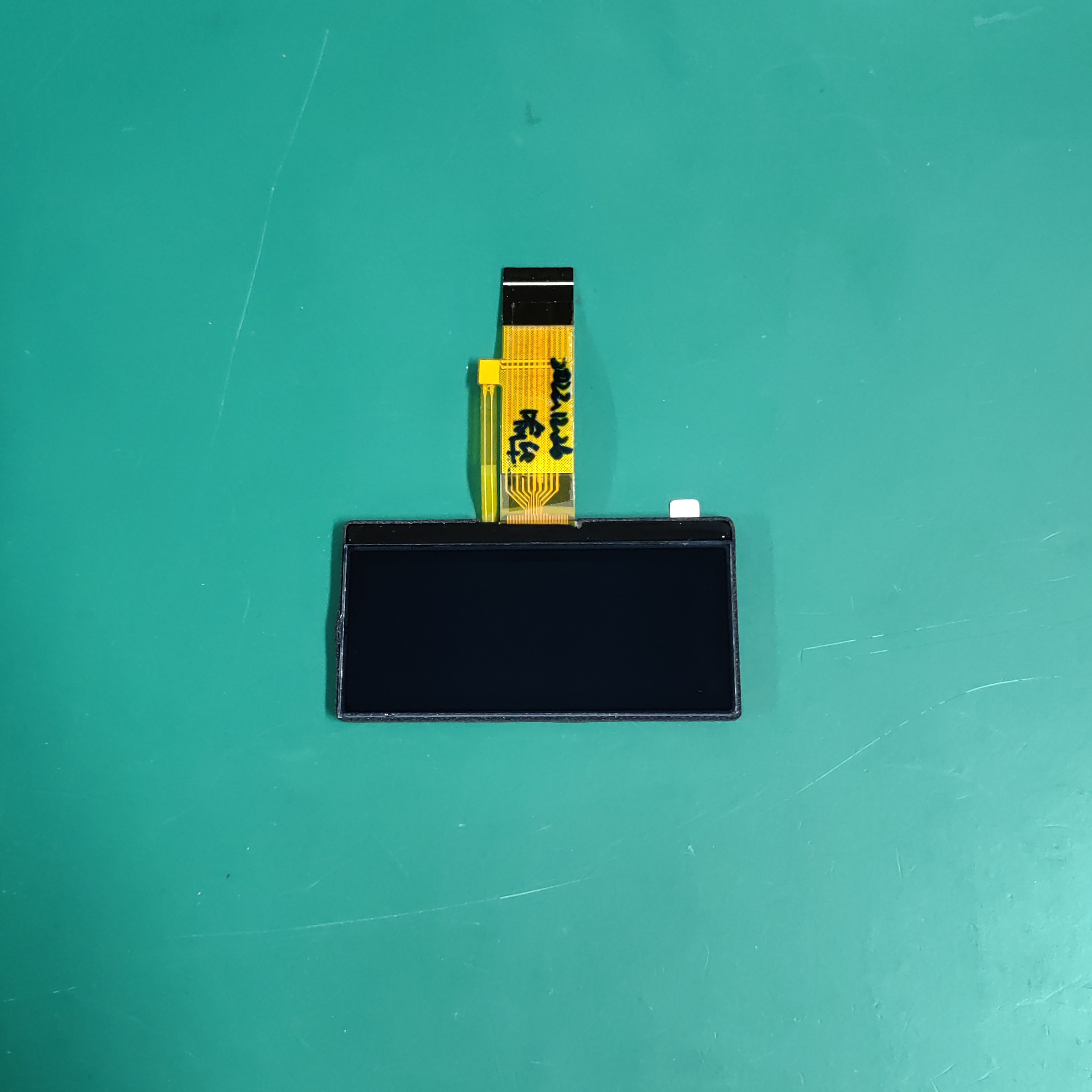

Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 0Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 1Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 2Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 3Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 4


C: Drawing

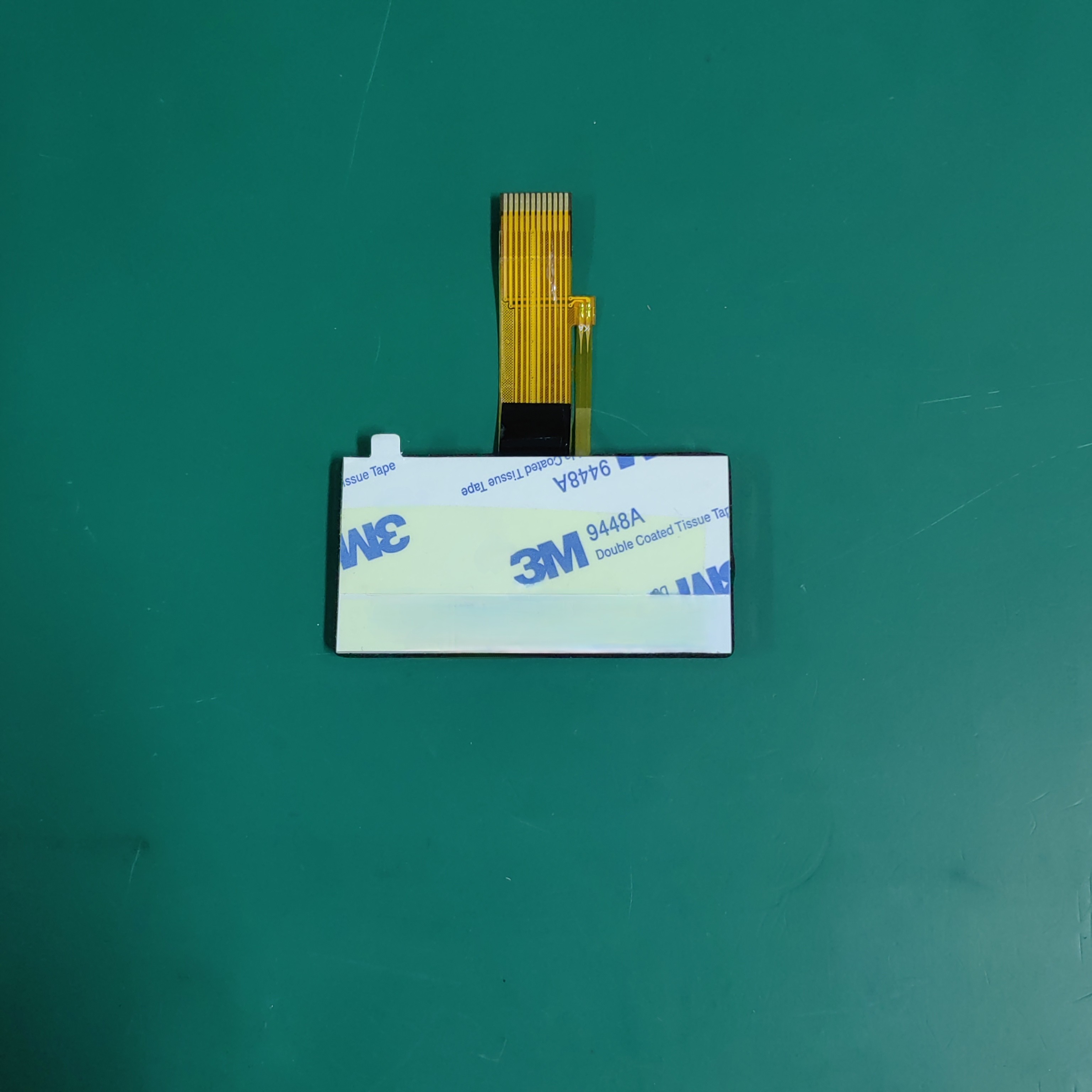

Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 5


D: LCD Product Knowledge

LCD advantage


Tooling charge and unit price are much cheaper than TFT and oled.


LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

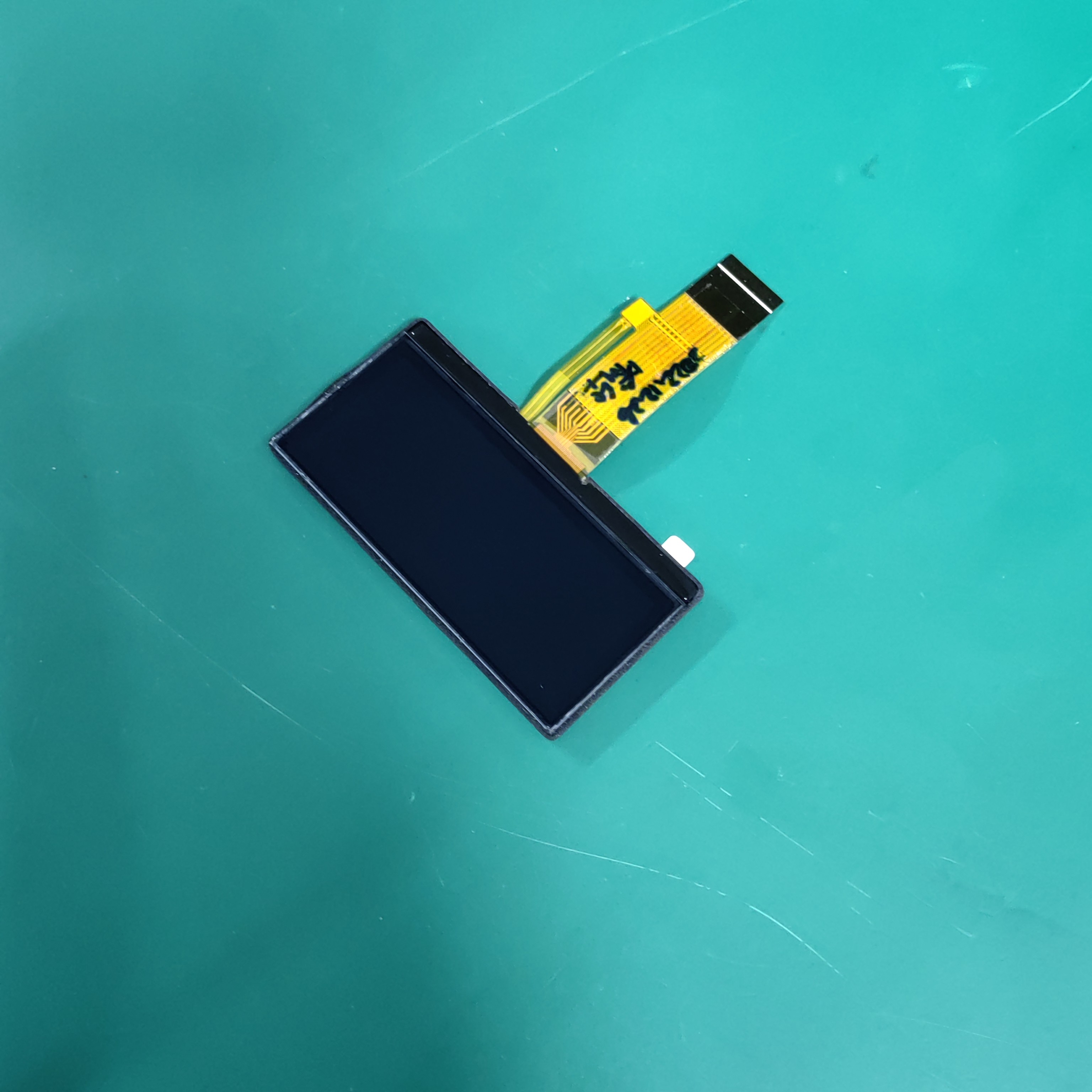

Monochrome LCD Display 240x128 DFSTN Transmissive Character LCD Module Screen 6
