2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX4848C21_DG8B_IN1A
Minimum Order Quantity 500pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology 2.1INCH IPS Tft Name Lcd Module
Size 2.1" Resolution 480*480
Brightness 350cd/m2 Drive IC TBD
View Angle ALL Interface UART 8N1
High Light

2.1 Inch IPS Tft Lcd


480x480 IPS Tft Lcd


UART Interface IPS Tft Lcd

Leave a Message
Product Description
All products will perform reliability testing according to customer requirements to ensure that product
characteristics meet customer application requirement.

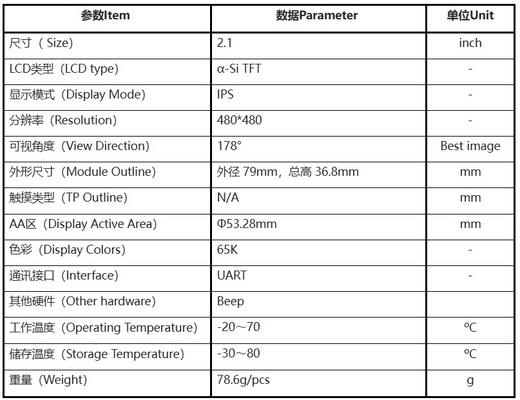

A:Product Parameter

Part No: ESHX4848C21_DG8B_IN1A
Panel size 2.1 inch TFT
LCD type IPS
Module Size
Display Area
Number of Dots 480*480
View angle ALL
Module Driver IC TBD
CTP Driver IC /
Interface Pins 8  PINS
LED Numbers /
Luminance 350cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP /

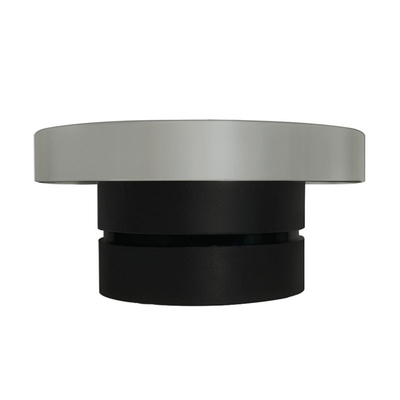

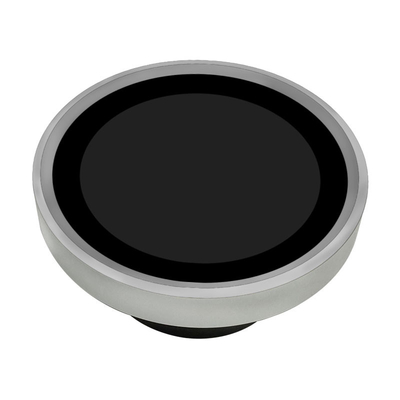

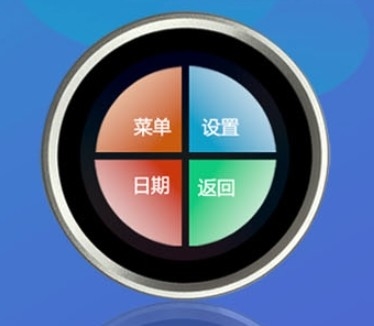

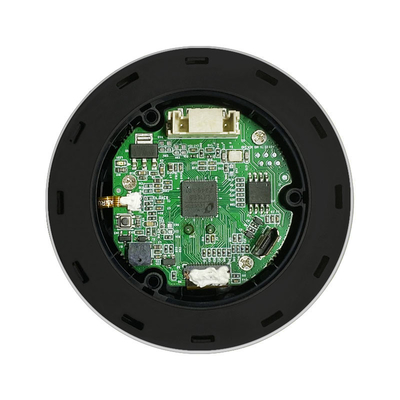

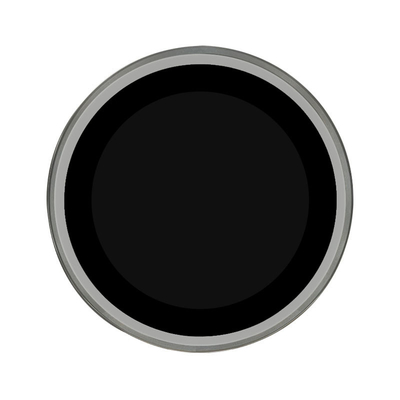

B:Product Picture


2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 02.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 1




C: Drawing

 2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 2

2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 3

D:TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below

2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 4


TFT structure  as below

2.1 Inch IPS Tft Lcd 480x480 8 Pins UART Interface 350 Cd/M2 5


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
