2.2 Inch HTN Segment Lcd Display Module, Driving Voltage 1/4D,1/3B ZEBRA Connecting

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX1081-50378A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Mode HTN LCD Name LCD Display
Working Voltage 5.0V Dots Segments
ASSEMBLY TYPE ZEBRA Drive Method 1/4D,1/3B
High Light

HTN Segment Lcd Display Module

,

ZEBRA connecting Segment Lcd Display Module

,

2.2 inch HTN Lcd Display Module

Leave a Message
Product Description

ESHX1081-50378A   is  customized HTN  Segment  lcd display , 1/4 duty,1/3 Bias, 12:00 clock,driving  ,assembly type ZEBRA,Operating Temp: '-20°C~70°C ,storage Temp -30℃~+80℃



A:Product Parameter

Part No: ESHX1081-50378A
display MODE 2.2 INCH HTN, NEGATIVE/TRANSMISSIVE
Display dots SEGMENT
OUTLINE SIZE 56.5x25.5x1.1
AA SIZE 54x19
Driving condition 1/4D,1/3B
assembly type ZEBRA
Operating temperature -20~70
View Angle 12:00
woking voltage 5.0V



B: Product Picture

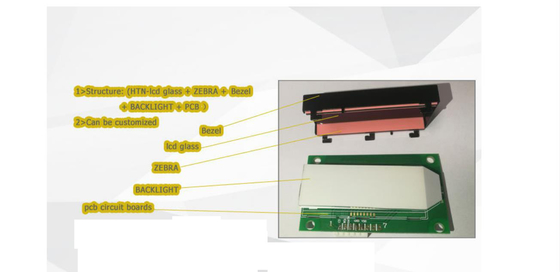

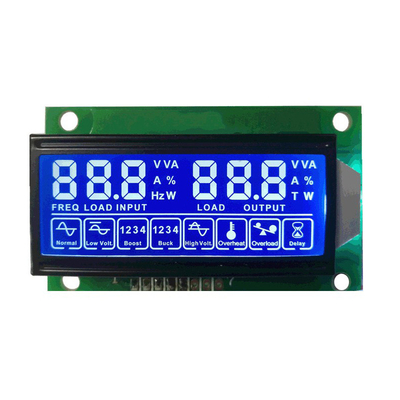

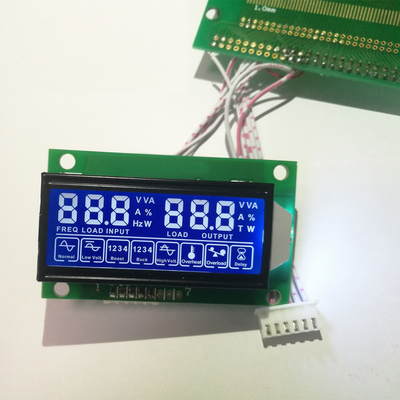

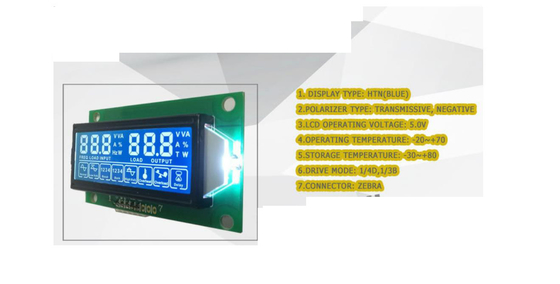

2.2  Inch HTN Segment Lcd Display Module,  Driving Voltage 1/4D,1/3B ZEBRA Connecting 02.2  Inch HTN Segment Lcd Display Module,  Driving Voltage 1/4D,1/3B ZEBRA Connecting 12.2  Inch HTN Segment Lcd Display Module,  Driving Voltage 1/4D,1/3B ZEBRA Connecting 22.2  Inch HTN Segment Lcd Display Module,  Driving Voltage 1/4D,1/3B ZEBRA Connecting 3

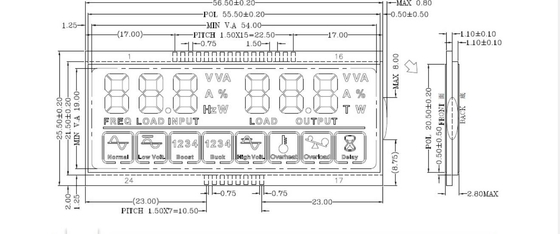

C: Drawing
