1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC ST7567,1/65Duty,1/9Bias

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX12864-237
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Mode FSTN LCD Name LCD Display
Drive IC ST7567 Dots 128X64
ASSEMBLY TYPE COG+FPC Drive Method 1/65Duty,1/9Bias
High Light

1.18 inch FSTN Lcd Display Module

,

FSTN Lcd Display Module 128x64

,

1/65Duty Dot Matrix Lcd Display Module

Leave a Message
Product Description

ESHX12864-237   is FSTN  dot maxtrix  lcd display 128X64 dots, 1/65 duty,1/9Bias, 12:00 clock,driving IC ST7567 ,assembly type COG+FPC,Operating Temp: '-20°C~70°C ,storage Temp -30℃~+80℃



A: Product Parameter

Part No: ESHX12864-237
display MODE 1.18 INCH FSTN, POSITIVE/reflective
Display dots 128X64
OUTLINE SIZE 28*28*1.7mm
AA SIZE 25.6*22.6mm
Driving condition 1/65Duty,1/9Bias
assembly type GOG+FPC+IC
Operating temperature -20~70
View Angle 12:00
IC ST7567


B:Product Picture

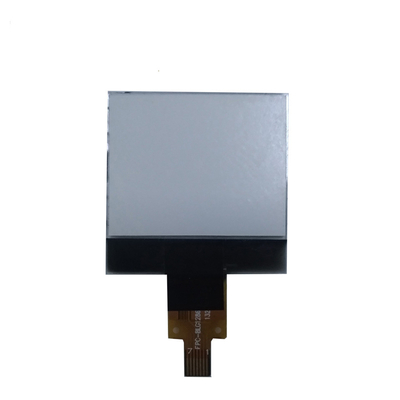

1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC  ST7567,1/65Duty,1/9Bias 0

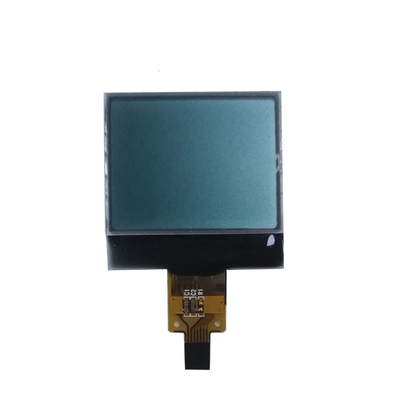

1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC  ST7567,1/65Duty,1/9Bias 1

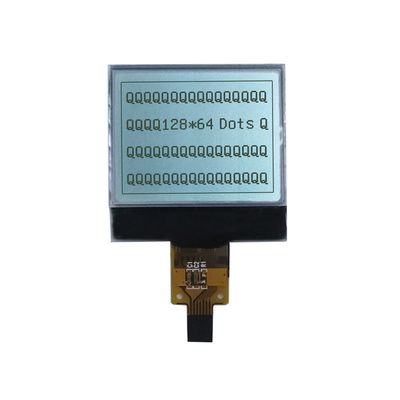

1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC  ST7567,1/65Duty,1/9Bias 2

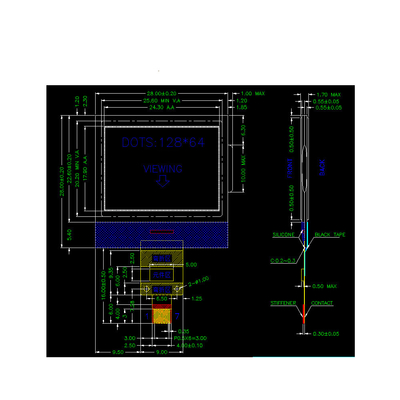

C:Drawing

1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC  ST7567,1/65Duty,1/9Bias 3



D: LCD Product Knowledge




LCD  Advantages:



Tooling charge and unit price are much cheaper than TFT and oled.



LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

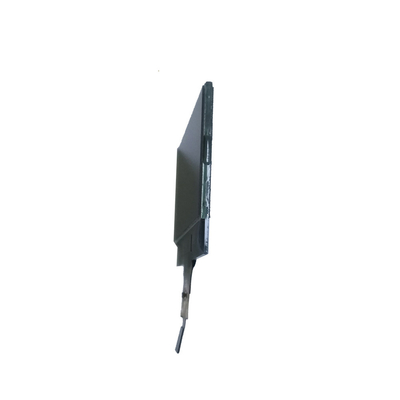

1.18 Inch FSTN Lcd Display Module 128x64 Dots Driving IC  ST7567,1/65Duty,1/9Bias 4
