2.76 Inch Round TFT Display With HDMI Board 480x480 Resolution HDMI Interface 450 C/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX27601H
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT LCD With HDMI BOARD Name Round TFT Display
Size 2.76" Resolution 480x480
Brightness 450cd/m2 Drive IC ST7701S
View Angle Free View Angle Interface HDMI
High Light

TFT Display With HDMI Board

,

2.76 Inch Round TFT Display

,

480x480 TFT Round Display

Leave a Message
Product Description

ESHX14GMO4O-04  is 2.76  inch round TFT display , 480x480  Resolution, 40 pins 3SPI+18RGB , brightness is 300 cd/M2 TFT lcd module and lcd Module Driver IC is ST7701S




A:Product Parameter

LCD Number
ESHX27601H
product size 2.76 inch round TFT with HDMI board
view angle free
resolution 480x480
display mode IPS
interface HDMI
outline size 73x77.59x2.29
active area 70.13x70.13
Operating Temp: -20-70
brightness 450c/d
driving IC ST7701S



B:Product Picture

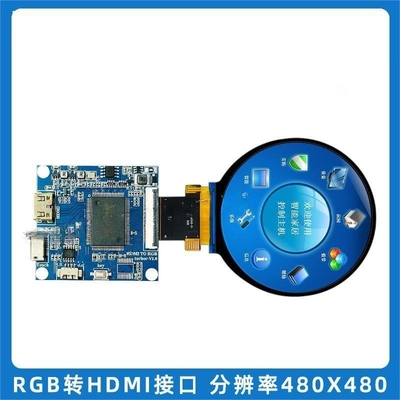

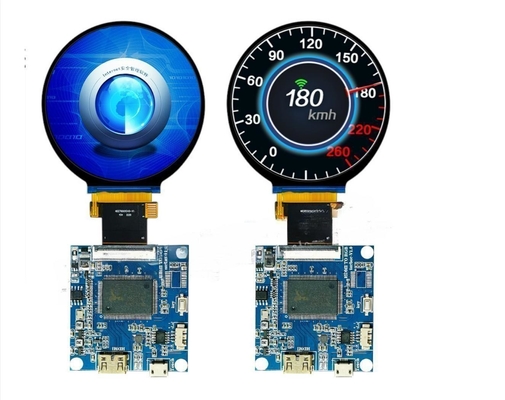

2.76 Inch Round TFT Display With HDMI Board  480x480 Resolution HDMI Interface 450 C/D 02.76 Inch Round TFT Display With HDMI Board  480x480 Resolution HDMI Interface 450 C/D 12.76 Inch Round TFT Display With HDMI Board  480x480 Resolution HDMI Interface 450 C/D 2



C: Drawing

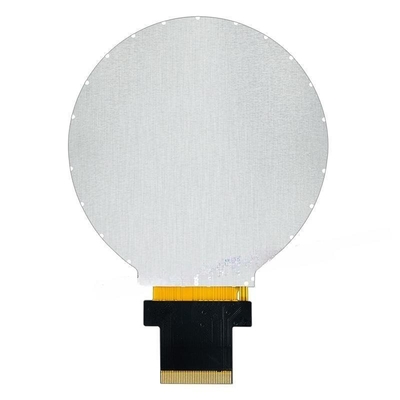

2.76 Inch Round TFT Display With HDMI Board  480x480 Resolution HDMI Interface 450 C/D 3

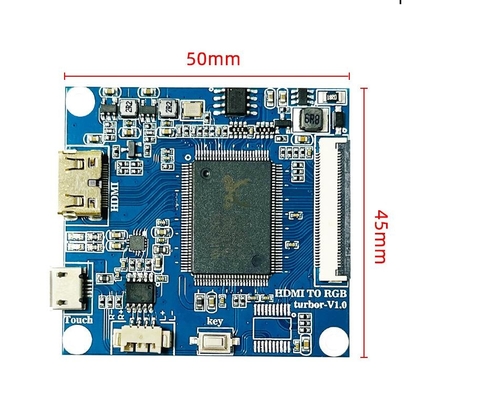

2.76 Inch Round TFT Display With HDMI Board  480x480 Resolution HDMI Interface 450 C/D 4
