1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent

  • 1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent
  • 1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent
  • 1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent
  • 1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent
Place of Origin Japan
Brand Name Sharp
Certification ISO14001/ISO9001/IATF16949
Model Number LS010B7DH04
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Sunlight Readable Name MEMORY Lcd Module
Size 1.0" Resolution 128*128
Brightness 100 Drive IC TBD
View Angle ALL Interface 10 PINS SPI
Highlight

Dot Matrix 1.0Inch LCD Module

,

SPI Interface Dot Matrix LCD Module

,

Dot Matrix 128x128 LCD Module
Leave a Message
Product Description
Reflective active-matrix with slightly transmissive type memory liquid crystal display module
with 128 x128 panel which uses CG silicon thin film transistor.
The devices in this publication are designed for use in general electronic equipment designs, such as:
・Personal computers ・Office automation ・Telecommunication equipment
・Test and measurement equipment ・Industrial control
・Audio visual and multimedia equipment ・Consumer electronics

LS010B7DH04(LD20501).pdf


A: Product Parameter

Part No: LS010B7DH04
Panel size  1.0 inch mono TFT
LCD type IPS
Module Size
22.08(W)×25.78(H)×0.741(D)
Display Area
18.56(H) x 18.56(V)
Number of Dots 128*128
View angle ALL
Module Driver IC TBD
CTP Driver IC NO
Interface Pins 10 PINS SPI
LED Numbers WHITOUT
Luminance 100cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP without

B:Product Picture

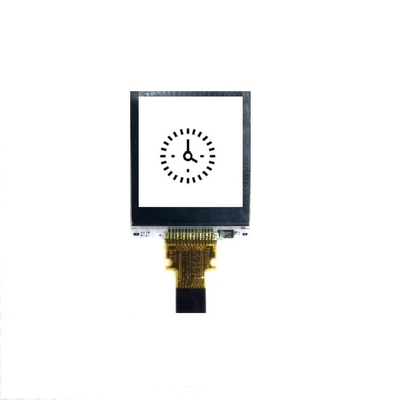

1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 0

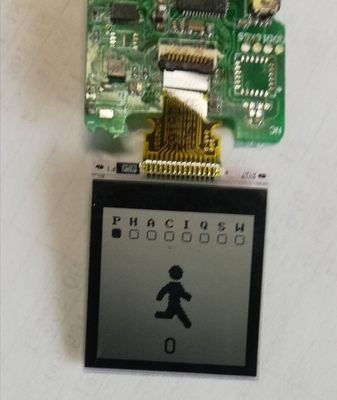

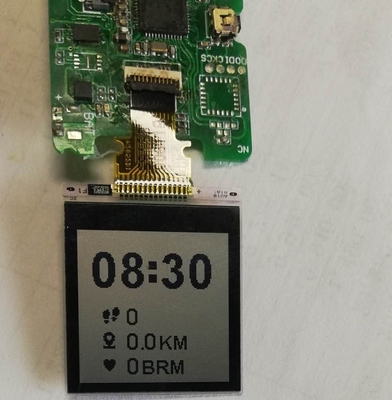

1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 11.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 2





C: Drawing


1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 3



D:TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 4



TFT structure  as below

1.0 Inch MEMORY Dot Matrix LCD Module , 128x128 10 PINS SPI Interface Half Transparent 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: Mono LCD Display Characteristics



1.Display Type: MONO LCD is a type of liquid crystal display that can only produce images in a single color, typically black and white or grayscale.



2.Pixel Structure: MONO LCDs have a simple pixel structure with a single light-modulating element per pixel, as opposed to the more complex RGB (Red-Green-Blue) pixel structure of color LCDs.



3.Contrast and Brightness: MONO LCDs generally have higher contrast ratios and can achieve higher brightness levels compared to color LCDs, as they do not require color filters or backlighting.



4.Power Consumption: MONO LCDs typically have lower power consumption compared to color LCDs, making them suitable for battery-powered applications.



5.Response Time: MONO LCDs often have faster response times than color LCDs, leading to better performance for fast-moving or dynamic content.



6.Cost: MONO LCDs are generally less expensive to manufacture than color LCDs, making them a more cost-effective solution for certain applications.



7.Applications: MONO LCDs are commonly used in devices that require simple, low-cost, and efficient display solutions, such as calculators, watches, electronic books (e-readers), and some industrial control panels.



8.Limitations: MONO LCDs are limited to displaying images and text in a single color, which can be a drawback for applications that require more vibrant or complex visual information.



I:Are there any disadvantages to using MONO LCD technology in industrial control panels?



1.Limited Visual Information:

2.Reduced Clarity and Visibility:

3.Compatibility with Graphics-Intensive Applications:

4.Potential Ergonomic Challenges:
