7 Inch UART TFT Display With Touch Panel 800×480 10PINS Uart Interface
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX7003LH80CG48 |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 200K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | TFT Module | Name | Uart Tft Display |
|---|---|---|---|
| Size | 7" | Resolution | 800×480 |
| Brightness | 300cd/m2 | Interface | TTL |
| High Light | 7 Inch UART TFT Display,UART TFT Display touch panel,uart tft lcd 800×480 |
||
Product Description
ESHX7003LH80CG48 is 7 inch Uart tft display with RTP , 800 x480 resolution 10 pins TTL interface brightenss is 300 nit, ESHX7003LH80CG48 has below feature
- Cortex-M4 MCU and 2D TFT graphic display accelerator
- 7.0-inch, 800*480 Pixels resolution, 16.7MColors, IPS-TFT-LCD
- Resistive touch screen.
A: Product Parameter
| Part No: | ESHX7003LH80CG48 |
| TFT size | 7 inch with RTP |
| lcd type | Uart display |
| Resolution | 800×480 |
| outline Size(mm) | 190.5mm (W)×105.4mm (H)×13.0mm |
| Display Area(mm) | 155.08mm (W)×86.92mm (H) |
| Serial mode | UART: ON=TTL/CMOS; OFF=RS232 |
| Touch panel | RTP |
| brightness | 300 c/d |
| FLash space | 128M bytes |
| interface | 10 pins uart |
| lCM interface | RGB |
| user interface | 10Pin_1.0mm latching socket for power supply and serial communication |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio filesRewrite cycle: over 100,000 tim |
| view angle | 70°/70°/50°/70° |

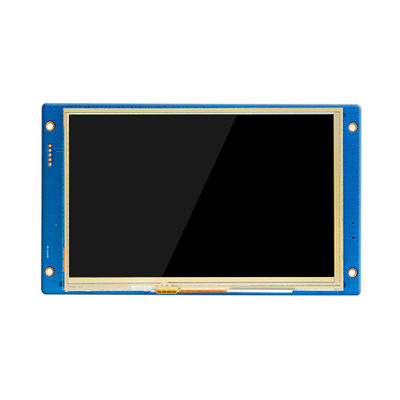

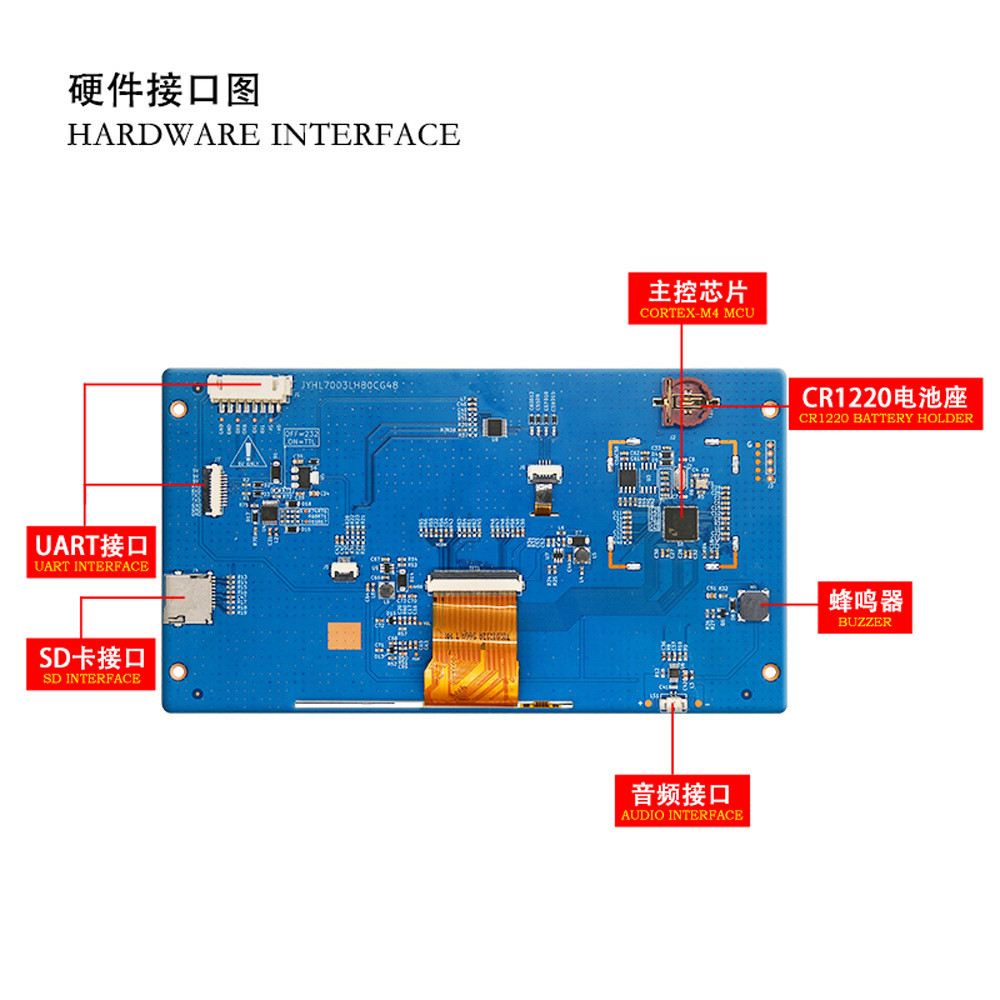

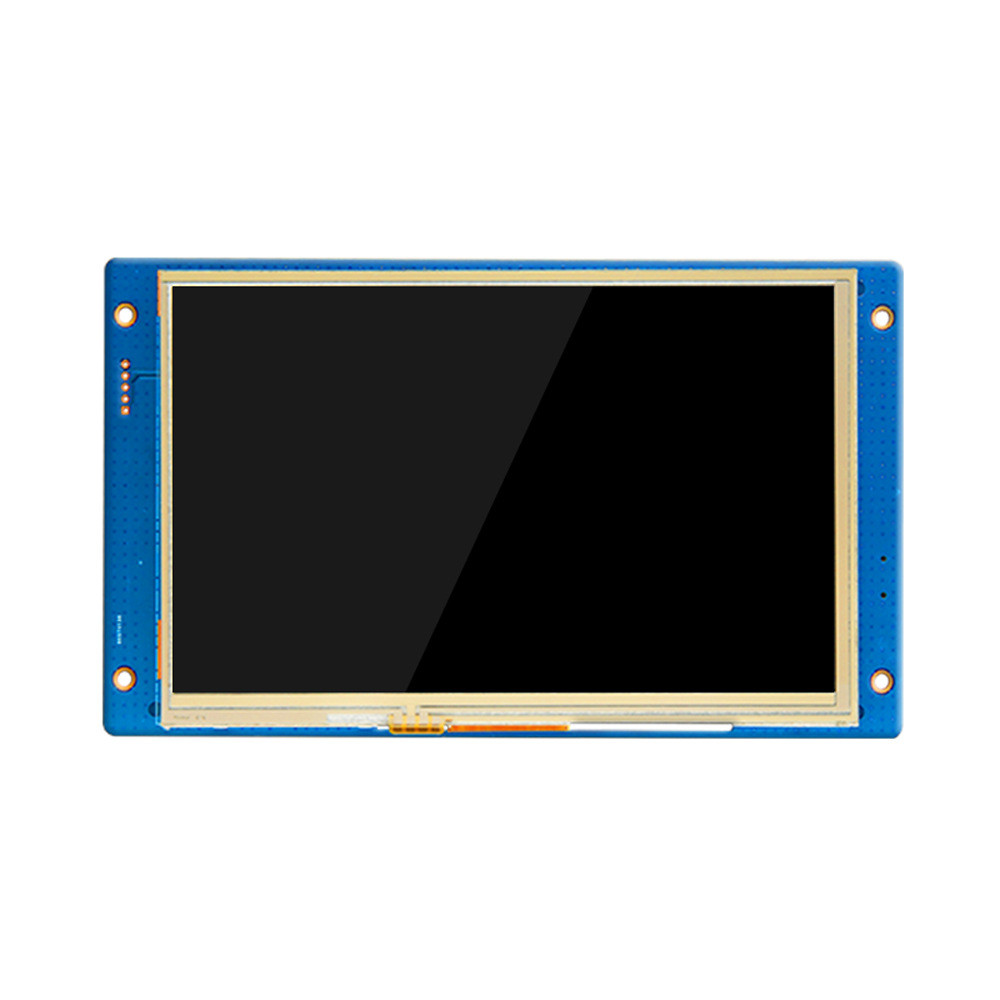

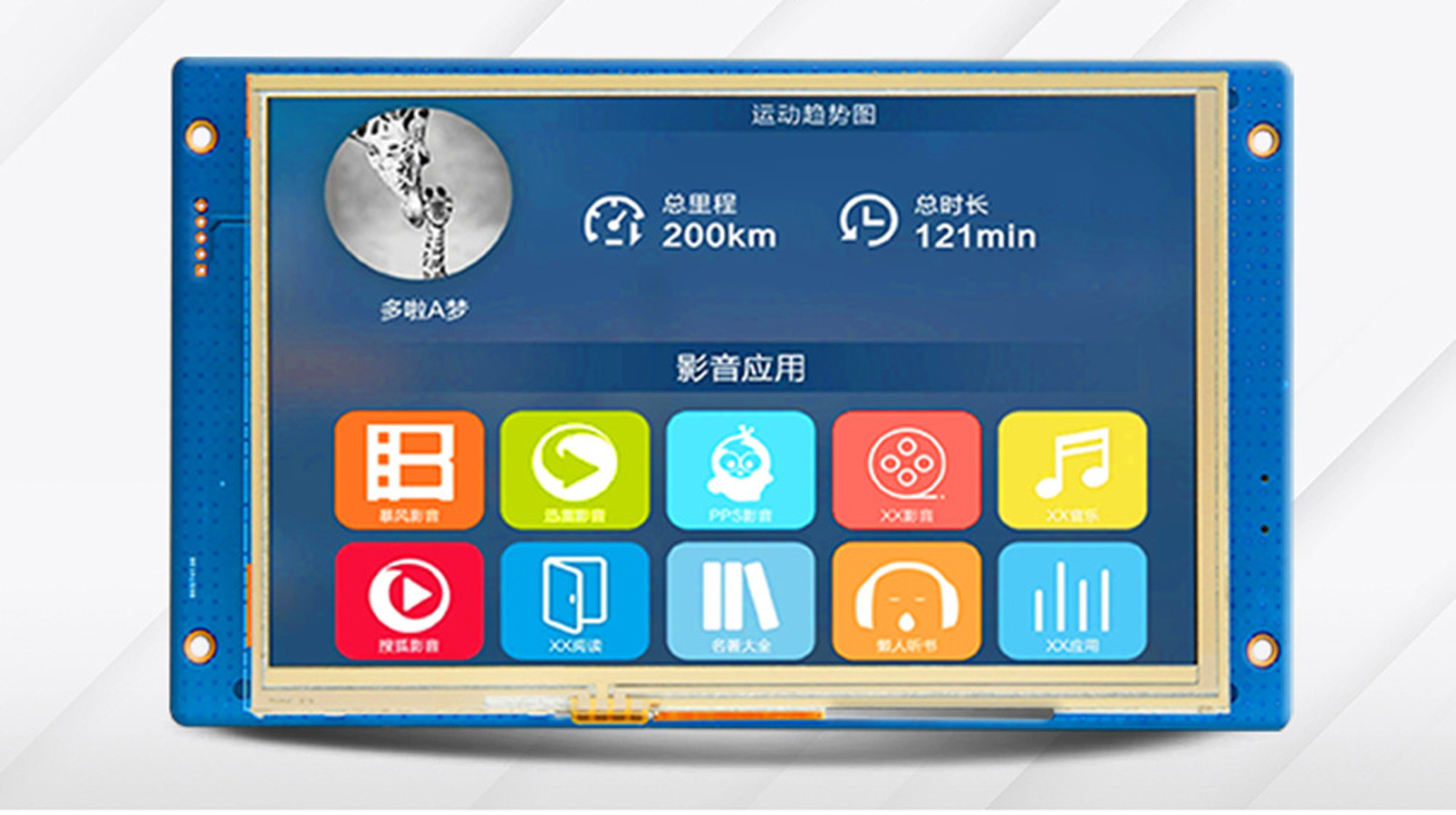

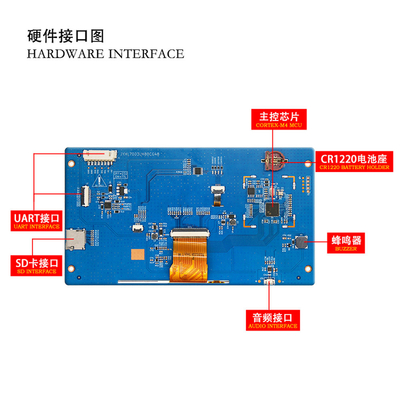

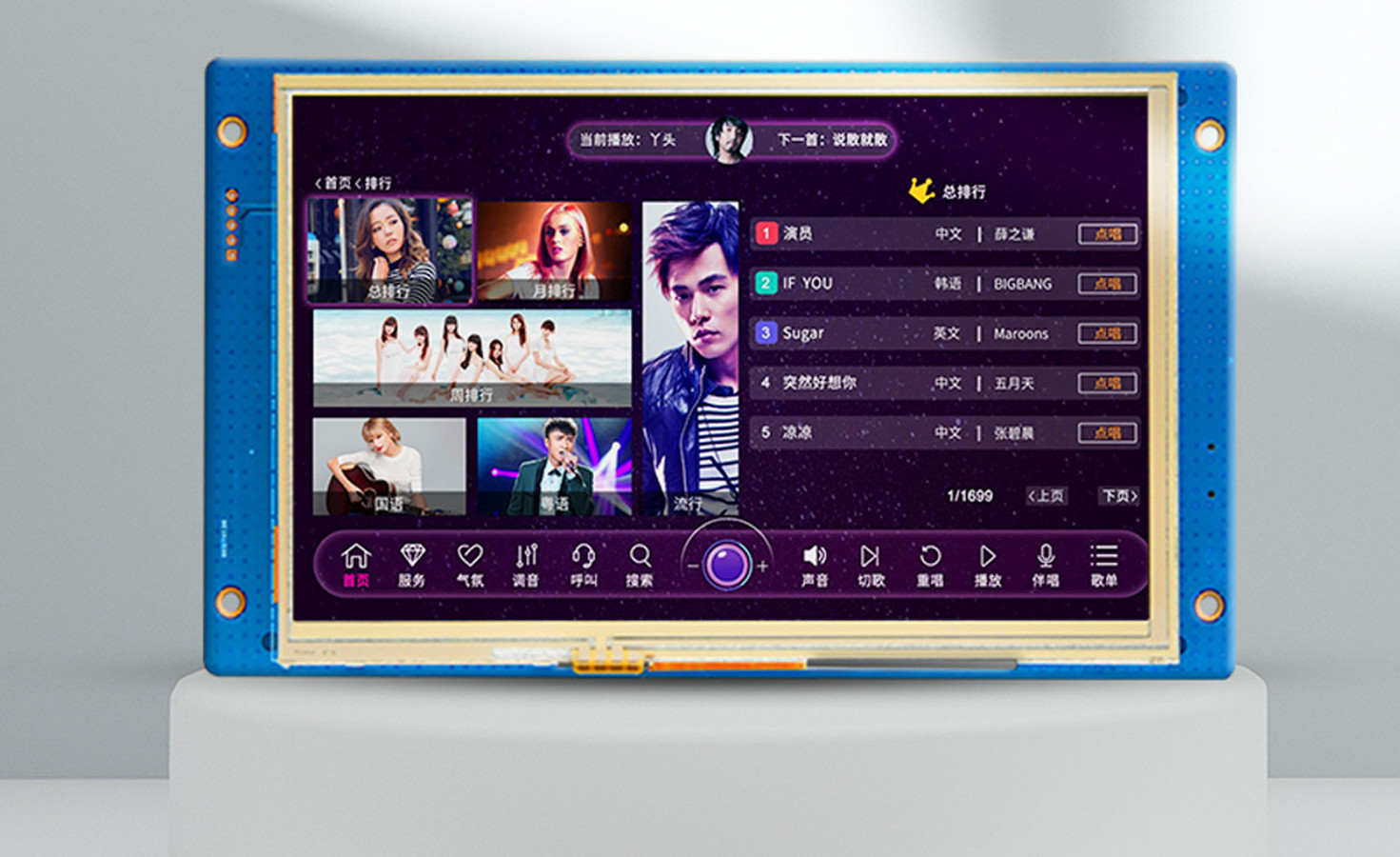

B: Product Picture
C:Drawing
--------------------
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
