192x48 Dot Matrix LCD Module DFSTN , Transflective Positive ST7525 Driving

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX19248-00
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Mode DFSTN Lcd Name Graphics LCD Modules
Drive IC ST7525 Dots 192X48
ASSEMBLY TYPE COG+FPC Drive Method 1/64 Duty,1/9 Bias,VOP=9.3V
High Light

192x48 Dot Matrix LCD Module


dot matrix lcd module dfstn


ST7525 matrix lcd display

Leave a Message
Product Description

ESHX19248-00  is DFSTN/ TRANSFLECTIVE/POSITIVE  lcd panels, 192X48 dots 1/64 duty,1/9 bias,VOP=9.3V,  view angle is 6:00 CLOCK,driving IC is  ST7525, 10 pins with white backlight,assembly type is COG+FPC


A:Product Parameter

LCD Number ESHX19248-00
DOTS 192X48
View angle 6:00 CLOCK
MODULE SIZE(MM) 84x32 mm
active area(mm) 80X22MM
Drive method 1/64 duty,1/9 bias,VOP=9.3V
Operating Temp: -20~70
drive IC ST7525
Backlight color white, 3pcs

B:Product Picture

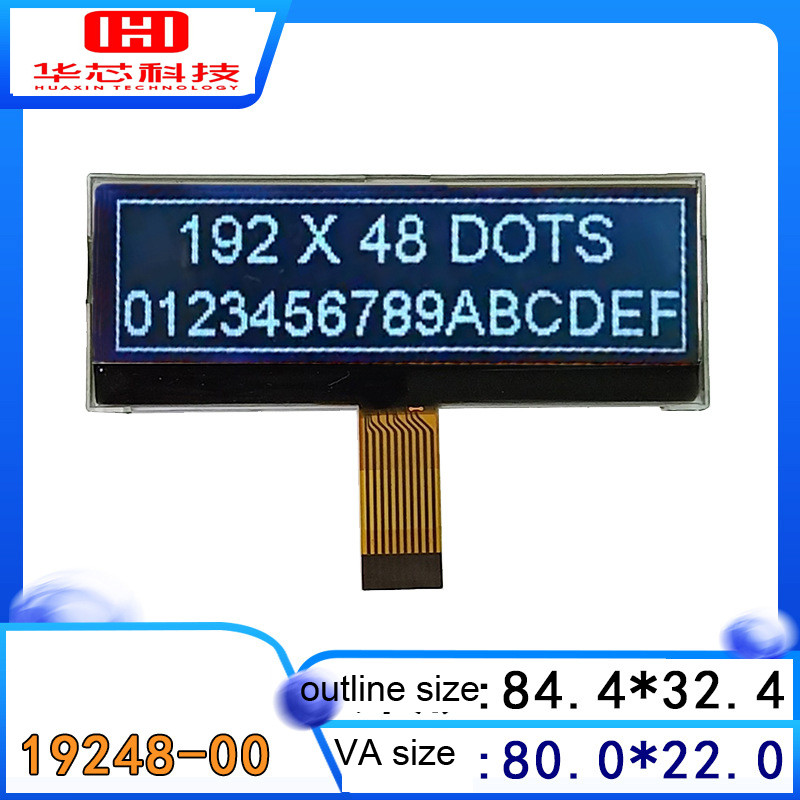

192x48 Dot Matrix LCD Module DFSTN , Transflective Positive ST7525 Driving 0

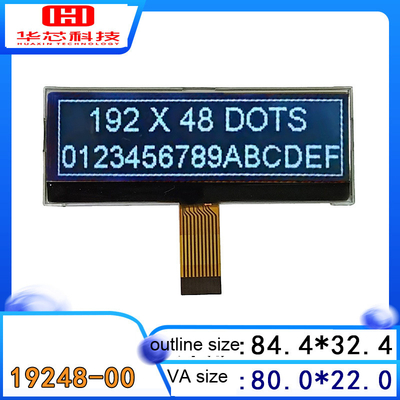

192x48 Dot Matrix LCD Module DFSTN , Transflective Positive ST7525 Driving 1

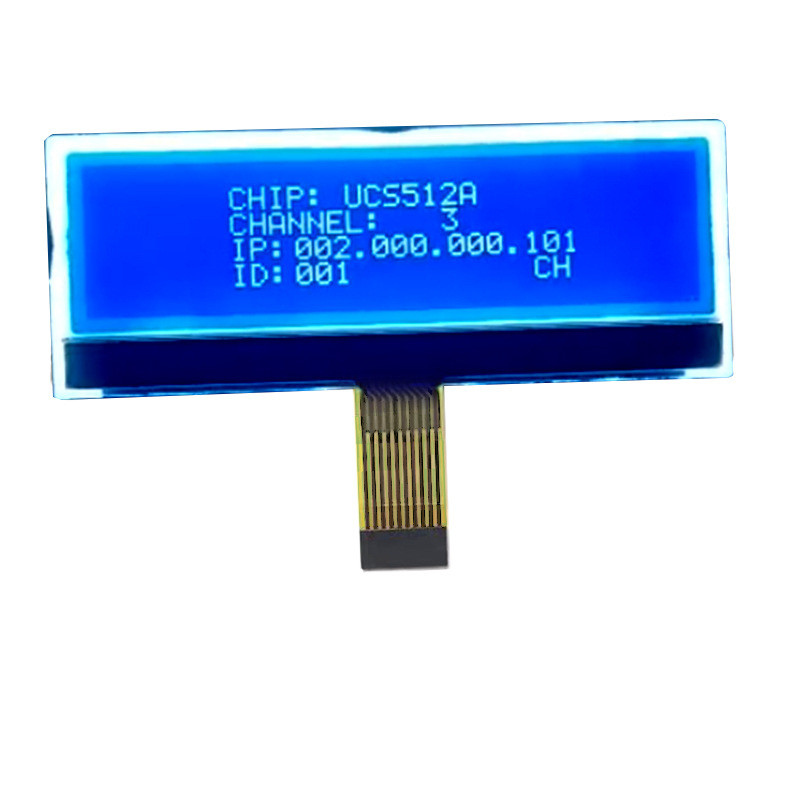

192x48 Dot Matrix LCD Module DFSTN , Transflective Positive ST7525 Driving 2
