Reflective HTN Character LCD Display, 20x4 Large Size Dot Matrix 6h Angle

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX22077MPHA
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Mode HTN,REFLECTIVE,POSITIVE Name Character Mono Lcd Modules
DUTY 1/4 BIAS 1/3
VOP 3.0V
High Light

HTN Character LCD Display

,

reflective Character LCD Display

,

dot matrix lcd module 20x4

You can tick the products you need and communicate with us in the message board.
DISPLAY TPYE HTN
DISPLAY MODE POSITIVE
POLARIZA MODE TRANSMISSIVE
VIEW DIRECTION 6:00
DUTY 1/4
BAIS 1/3
VOP 3.0
Leave a Message
DISPLAY TPYE HTN
Product Description

ESHX22077MPHA is HTN  character LCD, driving method is 1/4 duty,1/3 bias,VOP=3.0V, display mode is REFLECTIVE,POSITVE,ASSEMBLY TYPE is LCD+PIN,27PINS, view angle is 6:00

HTN,REFLECTIVE,POSITIVE,6H,1/4DUTY,1/3BAIS,3.0V



A:Product Parameter

LCD Number ESHX22077MPHA
display modeF HTN/POSITIVE/REFLECTIVE
DOTS -
View angle 6:00 CLOCK
MODULE SIZE(MM) 37*50mm
active area(mm) 34*43MM
Drive method 1/4 duty,1/3 bias,VOP=3.0V
Operating Temp: -20+70
drive IC -
Backlight color -
PIN 'QTY 27PINS
ASSEMBLY TYPE LCD+PIN



B: Product Picture

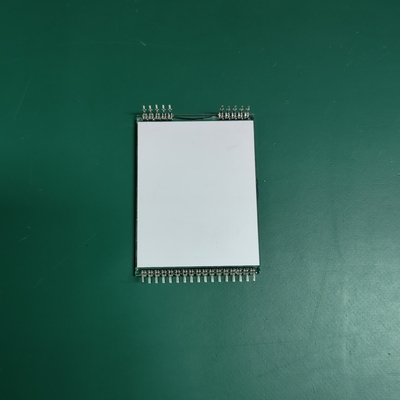

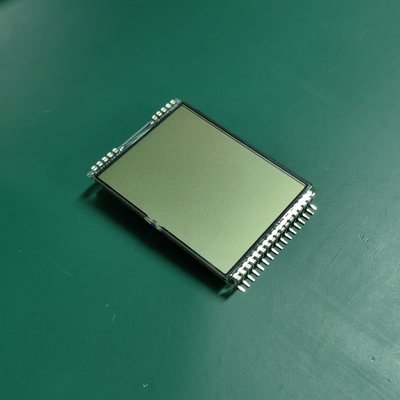

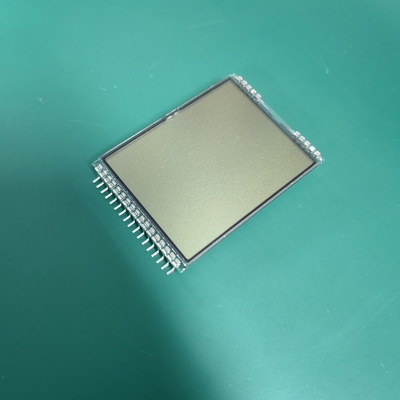

Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 0Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 1Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 2Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 3Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 4

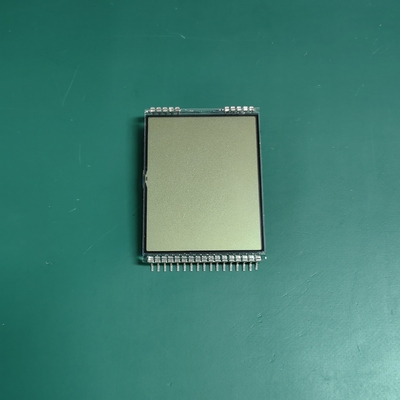

C:Drawing

Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 5



D: LCD Product Knowledge


LCD advantage



Tooling charge and unit price are much cheaper than TFT and oled.



LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

Reflective HTN Character LCD Display,  20x4 Large Size Dot Matrix 6h Angle 6



E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: Mono LCD Display Characteristics



1.Display Type: MONO LCD is a type of liquid crystal display that can only produce images in a single color, typically black and white or grayscale.



2.Pixel Structure: MONO LCDs have a simple pixel structure with a single light-modulating element per pixel, as opposed to the more complex RGB (Red-Green-Blue) pixel structure of color LCDs.



3.Contrast and Brightness: MONO LCDs generally have higher contrast ratios and can achieve higher brightness levels compared to color LCDs, as they do not require color filters or backlighting.



4.Power Consumption: MONO LCDs typically have lower power consumption compared to color LCDs, making them suitable for battery-powered applications.



5.Response Time: MONO LCDs often have faster response times than color LCDs, leading to better performance for fast-moving or dynamic content.



6.Cost: MONO LCDs are generally less expensive to manufacture than color LCDs, making them a more cost-effective solution for certain applications.



7.Applications: MONO LCDs are commonly used in devices that require simple, low-cost, and efficient display solutions, such as calculators, watches, electronic books (e-readers), and some industrial control panels.



8.Limitations: MONO LCDs are limited to displaying images and text in a single color, which can be a drawback for applications that require more vibrant or complex visual information.



I:Are there any disadvantages to using MONO LCD technology in industrial control panels?



1.Limited Visual Information:

2.Reduced Clarity and Visibility:

3.Compatibility with Graphics-Intensive Applications:

4.Potential Ergonomic Challenges:
