6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX21037MBTC
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Mode TN,TRANSMISSIVE,POSITIVE Name Character Mono Lcd Modules
DUTY 1/4 BIAS 1/3
VOP 3.6V
High Light

6h dot matrix lcd display module


3.6v dot matrix lcd display module


transmissive tn lcd display

You can tick the products you need and communicate with us in the message board.
DUTY 1/4
BAIS 1/3
VOP 3.6
Leave a Message
Product Description

ESHX21037MBTC is TN  character LCD, driving method is 1/4 duty,1/3 bias,VOP=3.6V, display mode is TRANSMISSIVE,POSITVE,ASSEMBLY TYPE is LCD+HEATSEAL, view

angle is 6:00

  for datasheet, you can download from this linkESHX21037MBTC.pdf



A: Product Parameter


LCD Number ESHX21037MBTC
View angle 6:00 CLOCK
MODULE SIZE(MM) 117.5*80mm
active area(mm) 112*77MM
Drive method 1/4 duty,1/3 bias,VOP=3.6V
Operating Temp: 0-55
drive IC -
Backlight color -


B:Product Picture

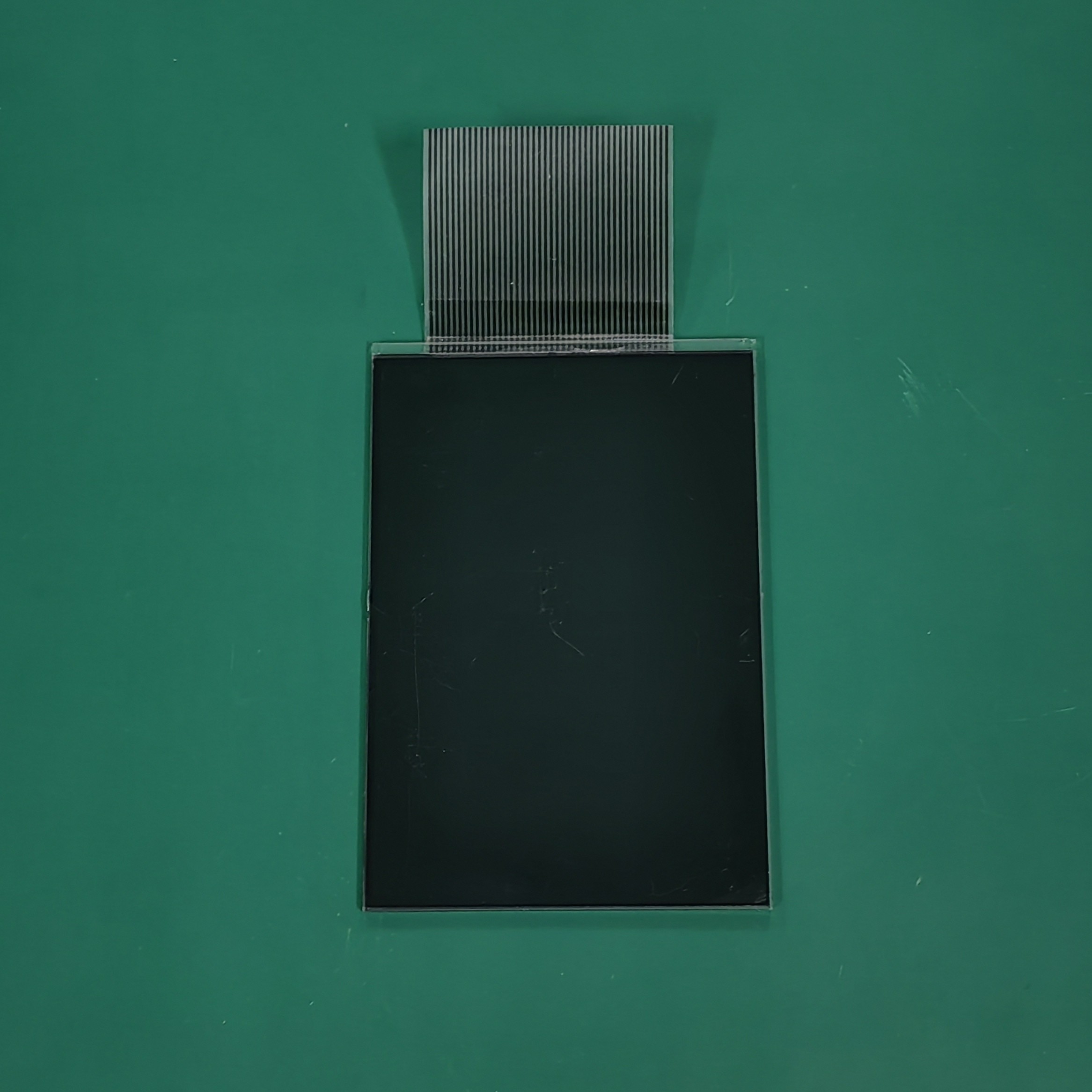

6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display 0

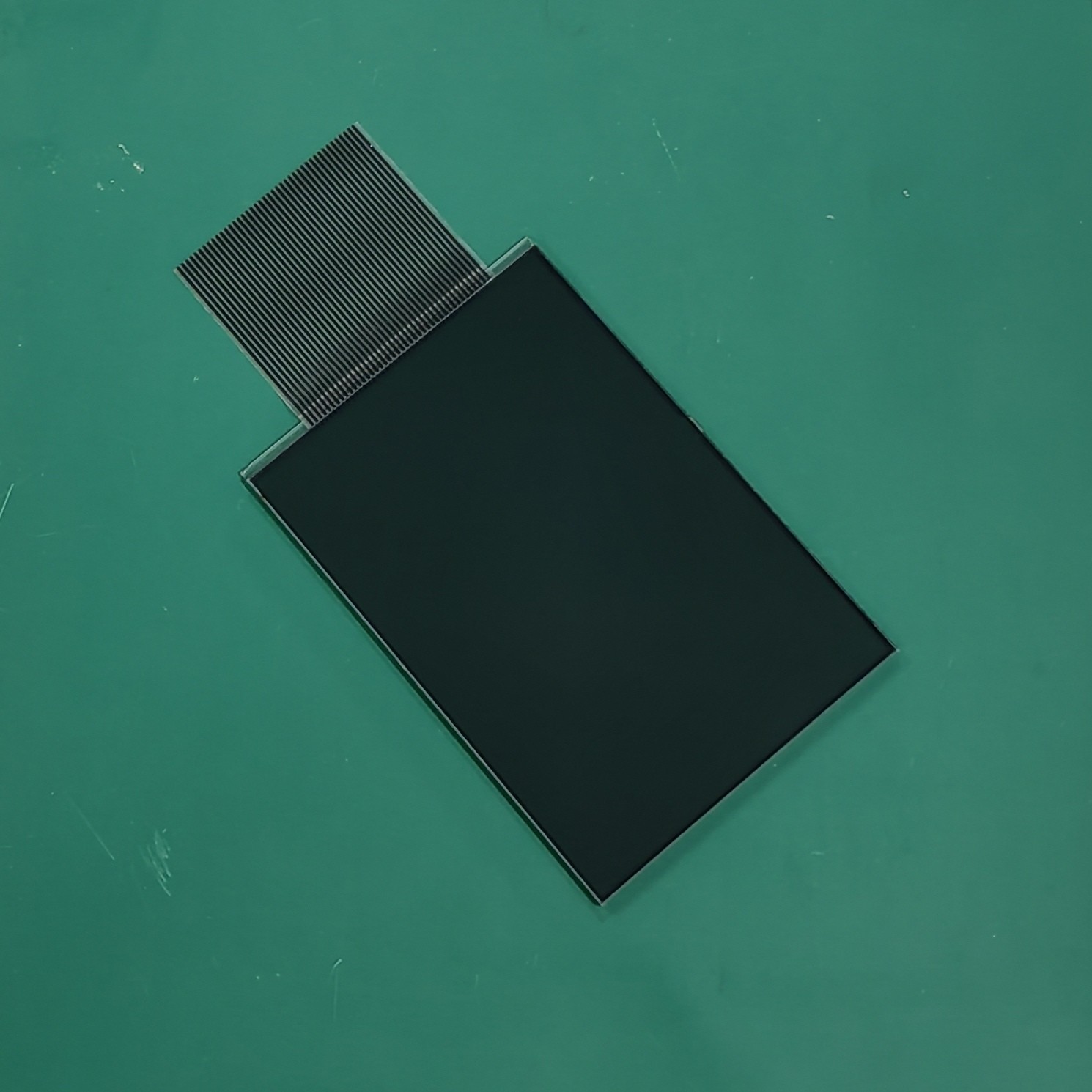

6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display 1

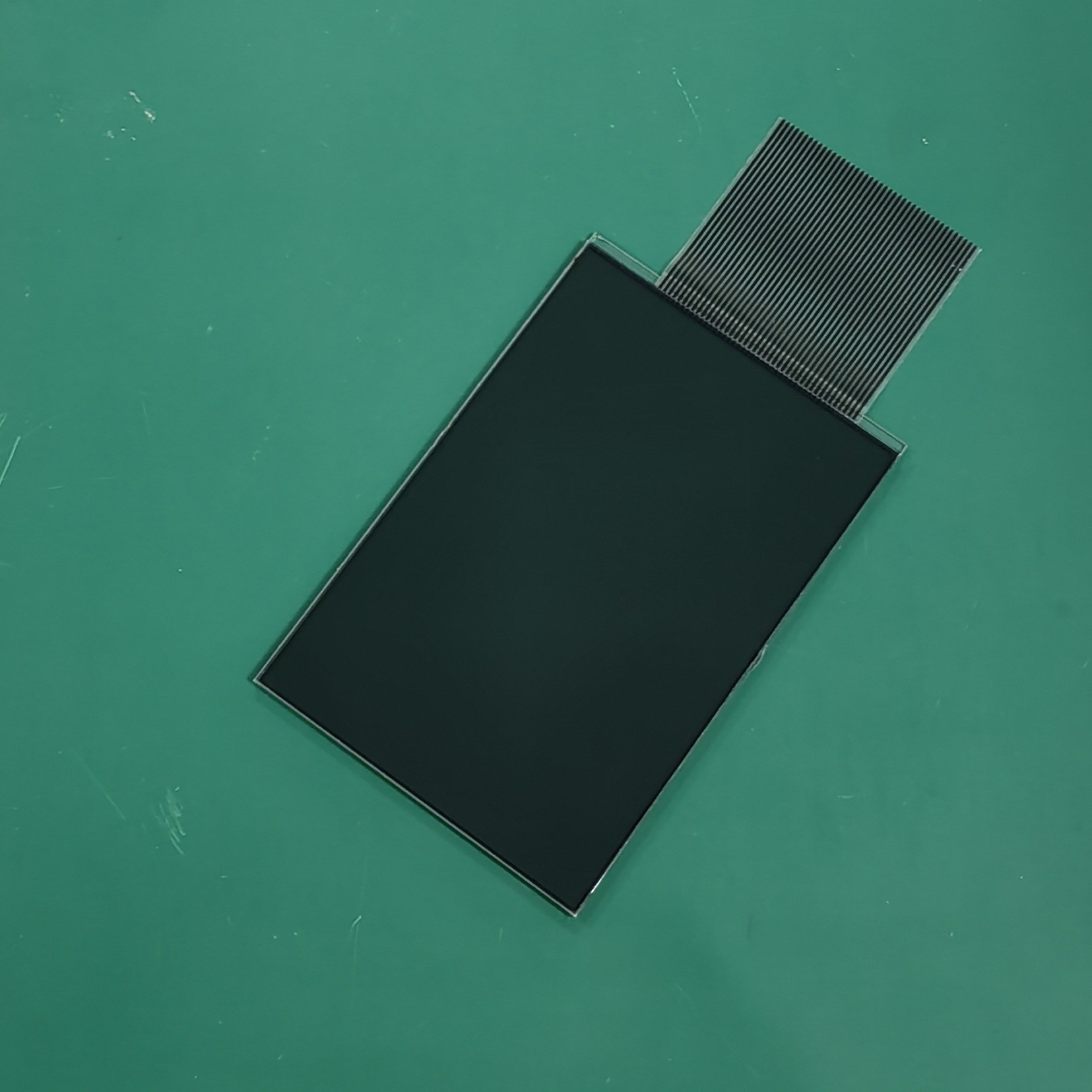

6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display 2


C: Drawing

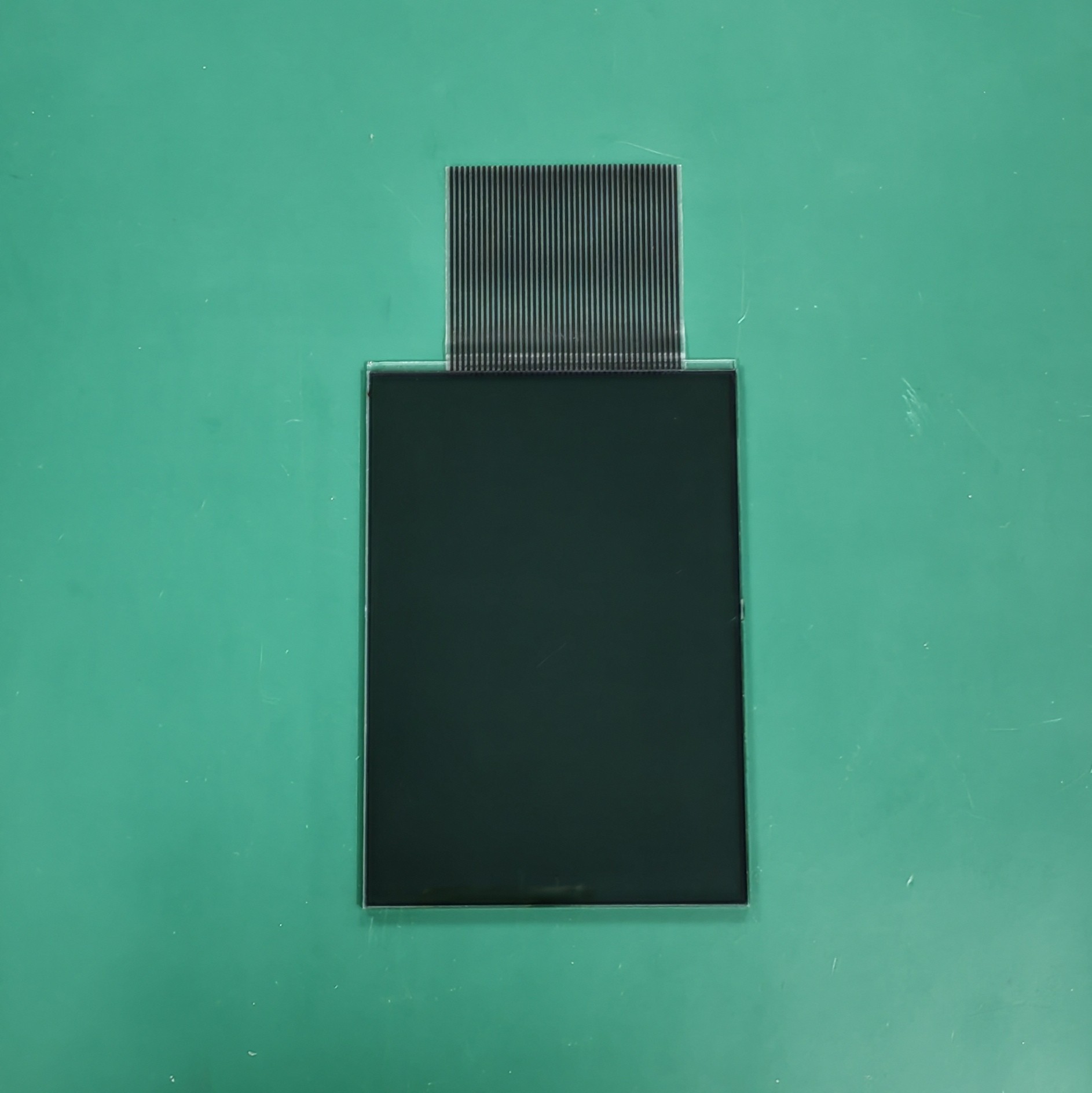

6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display 3


D: LCD Product Knowledge

LCD advantage

Tooling charge and unit price are much cheaper than TFT and oled.


LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

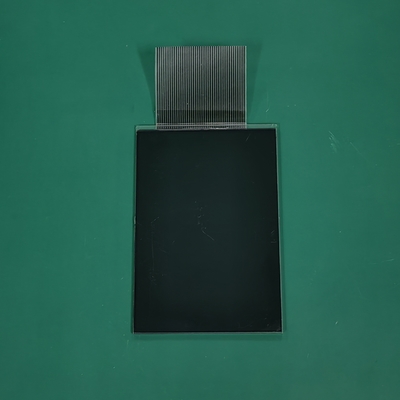

6h 3.6v Dot Matrix LCD Display Module Character Transmissive TN LCD Display 4
