1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX145RAN10A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Display Name Round TFT Display
Size 1.45" Resolution 412X412
Brightness 450cd/m2 Drive IC SPD2010
View Angle Free View Angle Interface QSPI
High Light

1.45 inch round lcd display module

,

round lcd display module 412x412

,

450 CD/M2 round tft

Leave a Message
Product Description

ESHX145RAN10A is  1.45 inch round TFT display , 412x412 Resolution, 24 pins QSPI interface, brightness is 450 cd/M2 TFT lcd  and lcd Module Driver IC is SPD2010 and applied for  watch/bracelet



A: Product Parameter

ITEM specification
Model Number ESHX145RAN10A
size 1.45 inch ROUND TFT
LCD Type IPS
Number of pixels 412X412
Active area 36.96X26.96MM
OutlineSize(W*H*T) 39.36X41.53X1.63
Viewing direction free view angle
LCM Driver IC SPD2010
LCM interface QSPI interface
PIN number 24pins
LED number 6pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance 450c/d

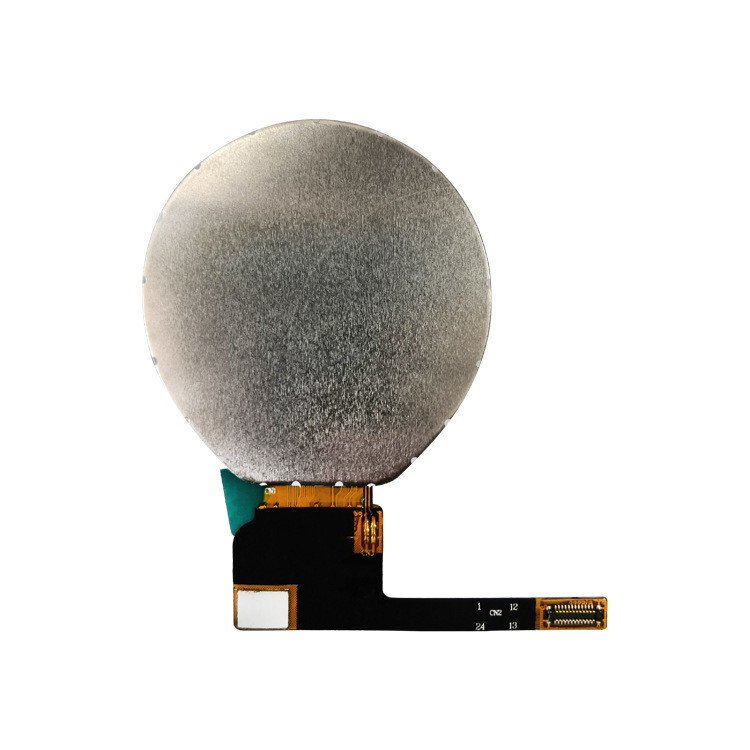

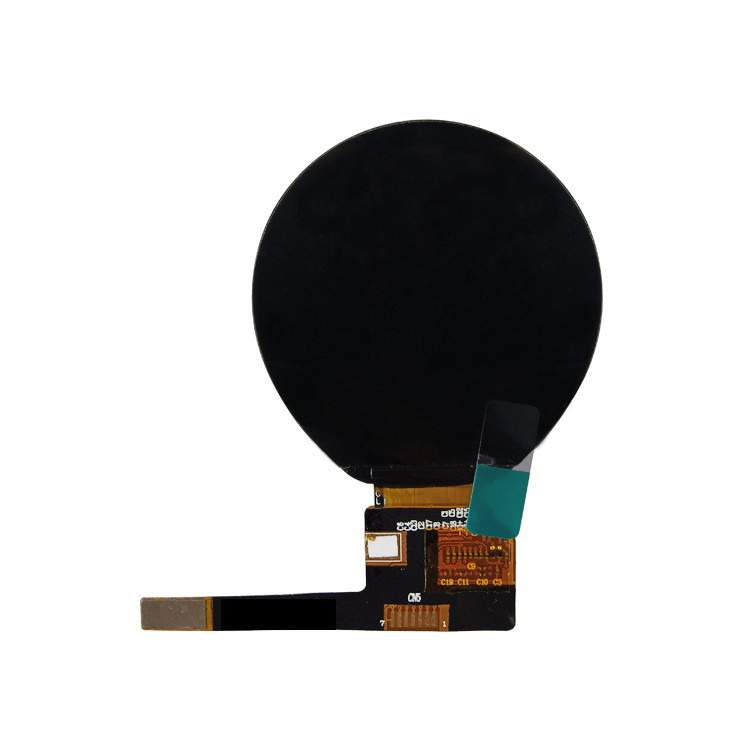

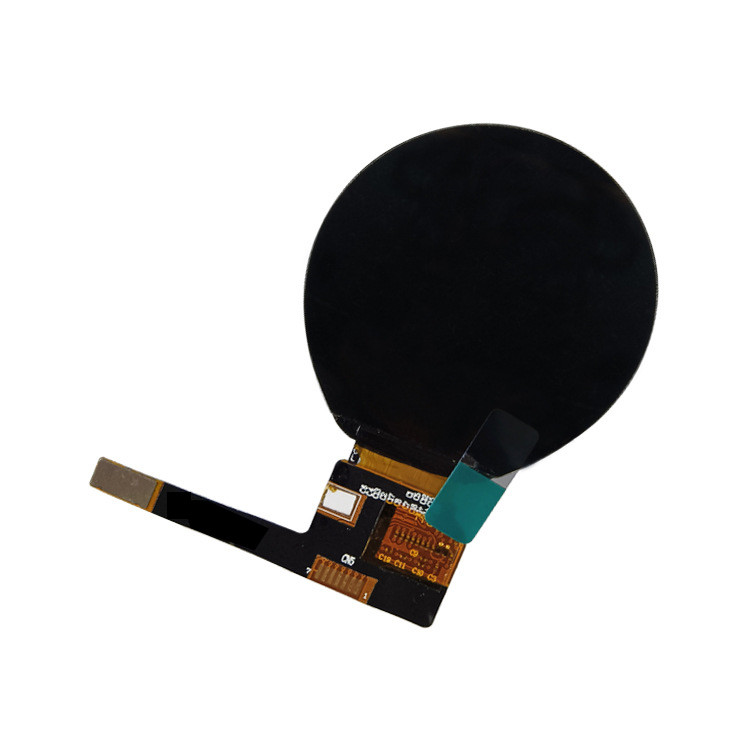

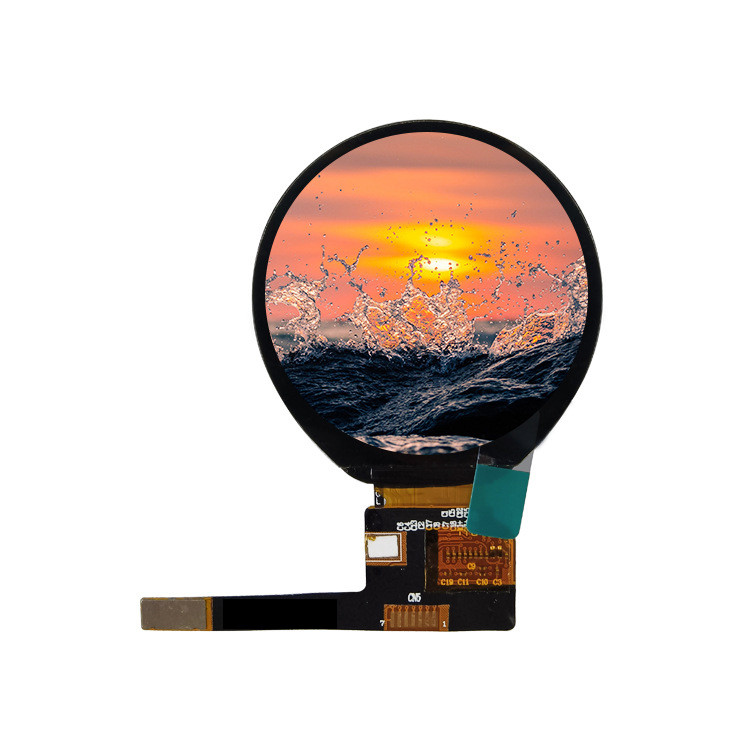

B:Product Picture

1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 0

1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 1


1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 2


C: Drawing



1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 3


1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 4
1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 5


D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 6



TFT structure  as below

1.45 Inch Round LCD Display Module 412x412 QSPI Interface 450 CD/M2 7
