1.32 Inch Round TFT Display 360x360 QSPI Interface 450CD/M2 Circular TFT

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX132R-IC55
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Module Name Round TFT Display
Size 3.6" Resolution 544*506
Brightness 1000cd/m2 Highlights High Brightness And Round Shape And Wide Temperature
Drive IC ST72566 View Angle Free View Angle
High Light

1.32 inch Round TFT Display

,

Round TFT Display 360x360

,

450CD/M2 circular tft

Leave a Message
Product Description

ESHX132R-IC55 is  1.32 inch round TFT display , 360x360 Resolution, QSPI interface, brightness is 450 cd/M2 TFT lcd module and lcd Module Driver IC is GC9C01 and applied for  watch/bracelet

dawing download , pls refer to this link ESHX132R-IC55 drawing.pdf


A:Product Parameter

Part No: ESHX132R-IC55
Panel size 1.32 inch round TFT
LCD type IPS
Module Size 35.98X38.54X1.56MM
Display Area 33.48
Number of Dots 360*360
View angle all
Module Driver IC GC9C01
Interface Pins QSPI
Luminance 450cd/m2
Operating Temp -30~80
Storage Temp -30~85
Remark watch/bracelet



B:Product Picture

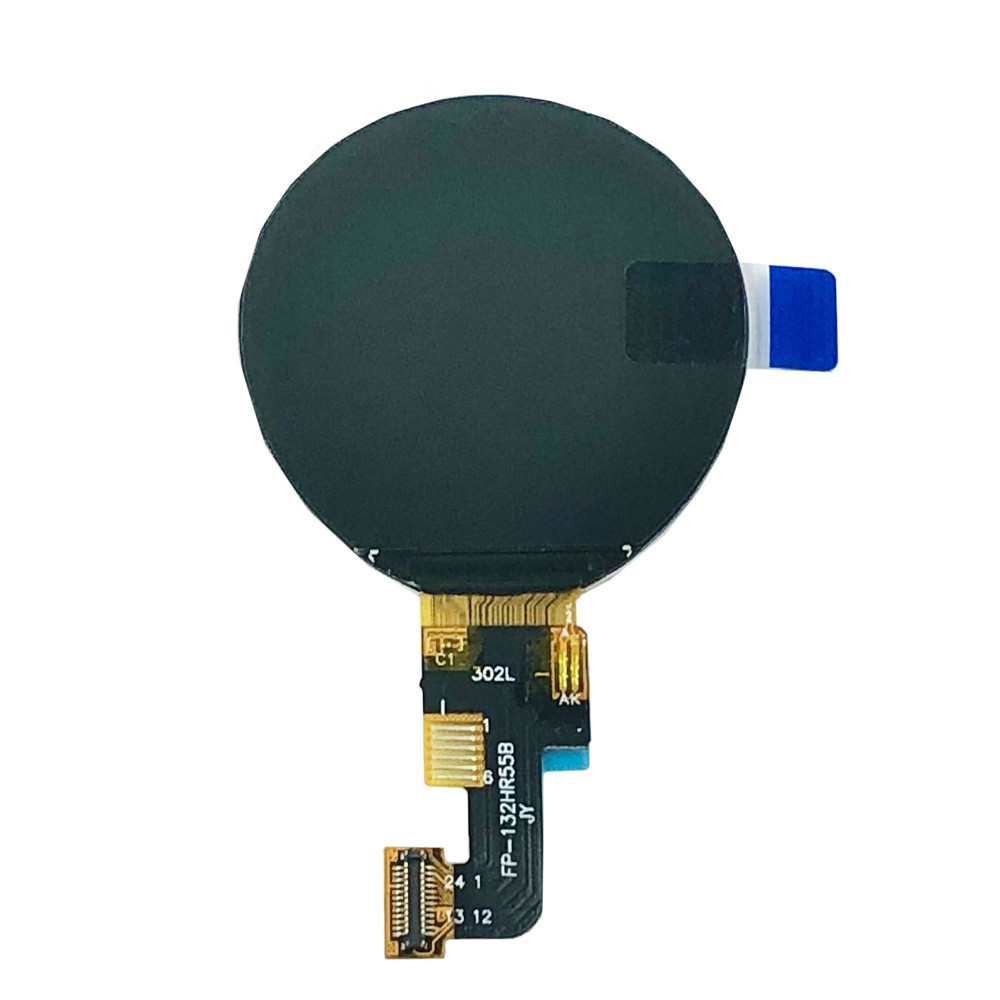

1.32 Inch Round TFT Display 360x360 QSPI Interface 450CD/M2 Circular TFT 0

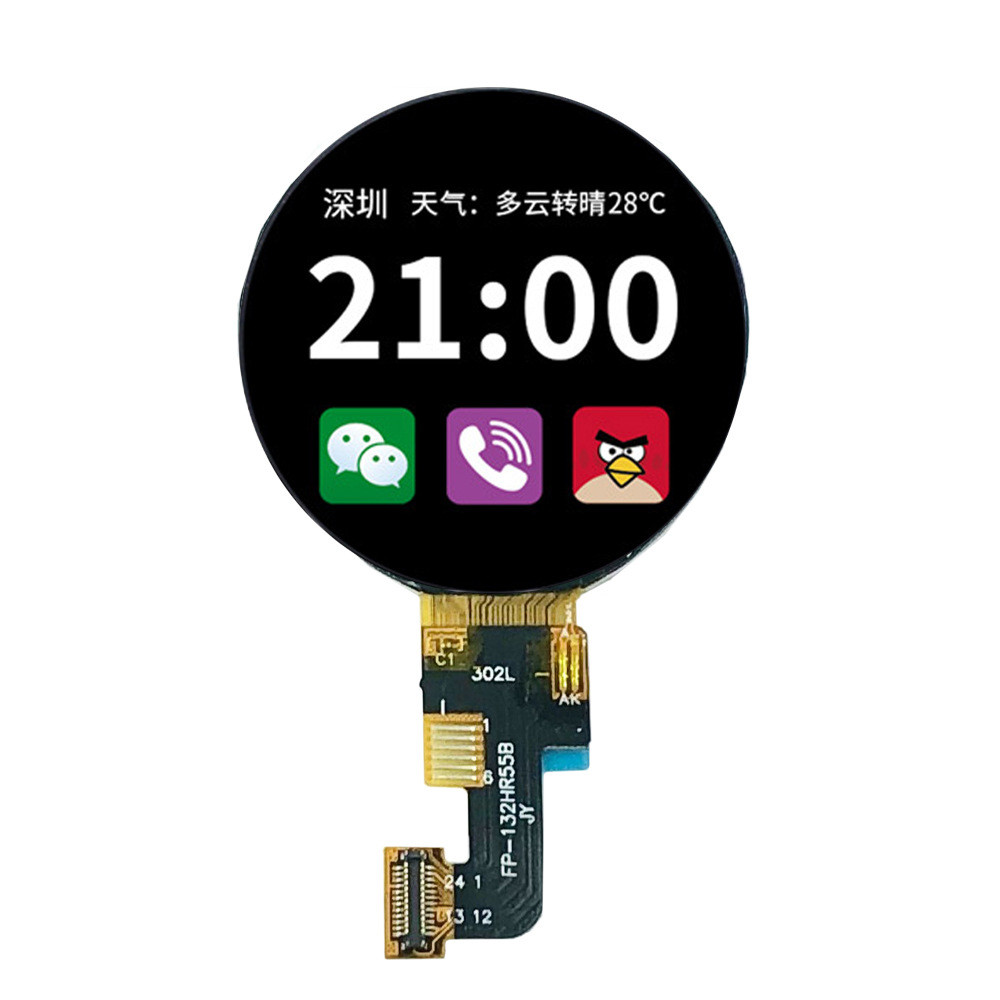

1.32 Inch Round TFT Display 360x360 QSPI Interface 450CD/M2 Circular TFT 1

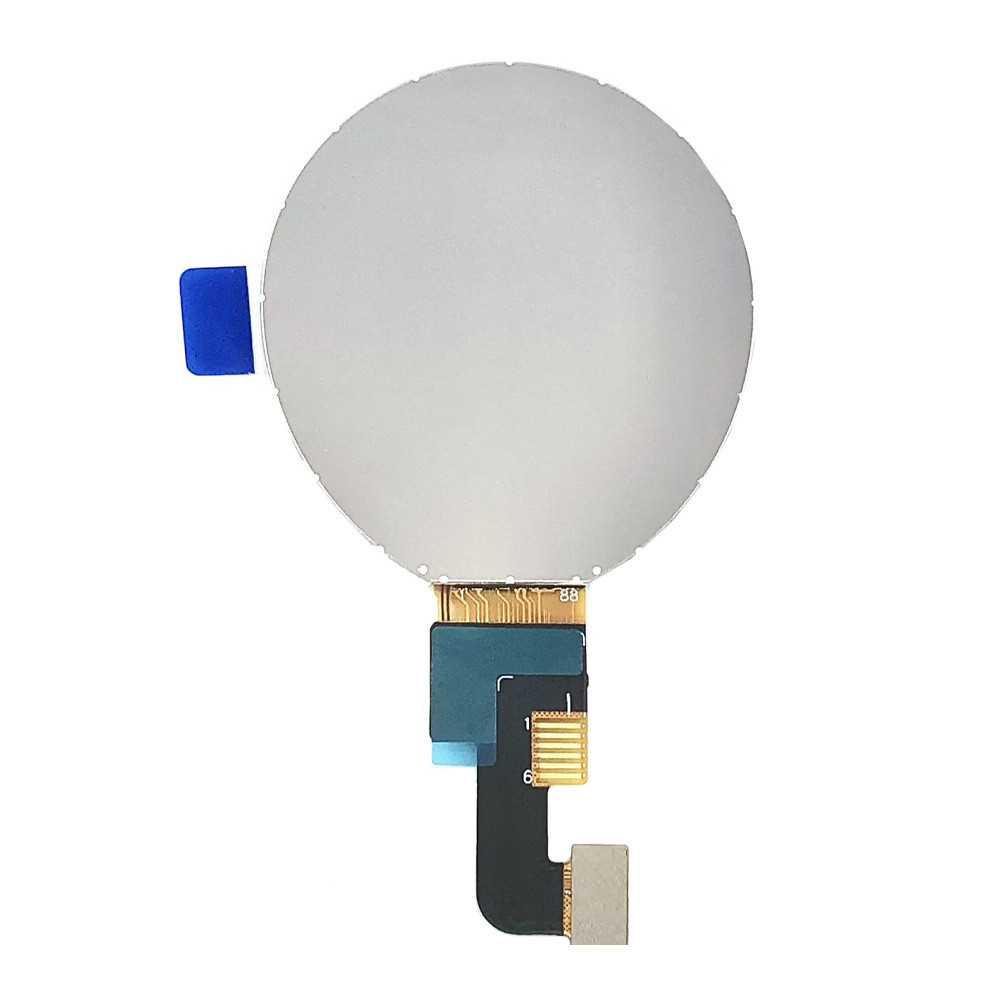

1.32 Inch Round TFT Display 360x360 QSPI Interface 450CD/M2 Circular TFT 2


C:Drawing

 1.32 Inch Round TFT Display 360x360 QSPI Interface 450CD/M2 Circular TFT 3
