3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX036BWV8644ANT
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Display Name Round TFT Display
Size 3.6" Resolution 544*506
Brightness 1000cd/m2 Highlights High Brightness And Round Shape And Wide Temperature
Drive IC ST72566 View Angle Free View Angle
High Light

3.6 inch Round TFT Display

,

RGB round tft lcd display

,

1000 CD/M2 round tft lcd display

Leave a Message
Product Description

ESHX036BWV8644ANT is  3.6 inch round TFT display which is automotive spec, 544x506 Resolution, RGB interface, high brightness is1000 cd/M2 lcd display, view angle is free and wide temperature,Operating Temp is -30~80


A: Product Parameter

Part No: ESHX036BWV8644ANT
Panel size 3.6 inch round TFT
LCD type IPS
Module Size 98.36*94.37MM
Display Area 89.76*80.79MM
Number of Dots 544*506
View angle ALL
Module Driver IC ST72566
Interface Pins RGB
Luminance 1000 CD/M2
Operating Temp -30~80
Storage Temp -30~85
Remark automotive SPECIFICATION


B:Product Picture

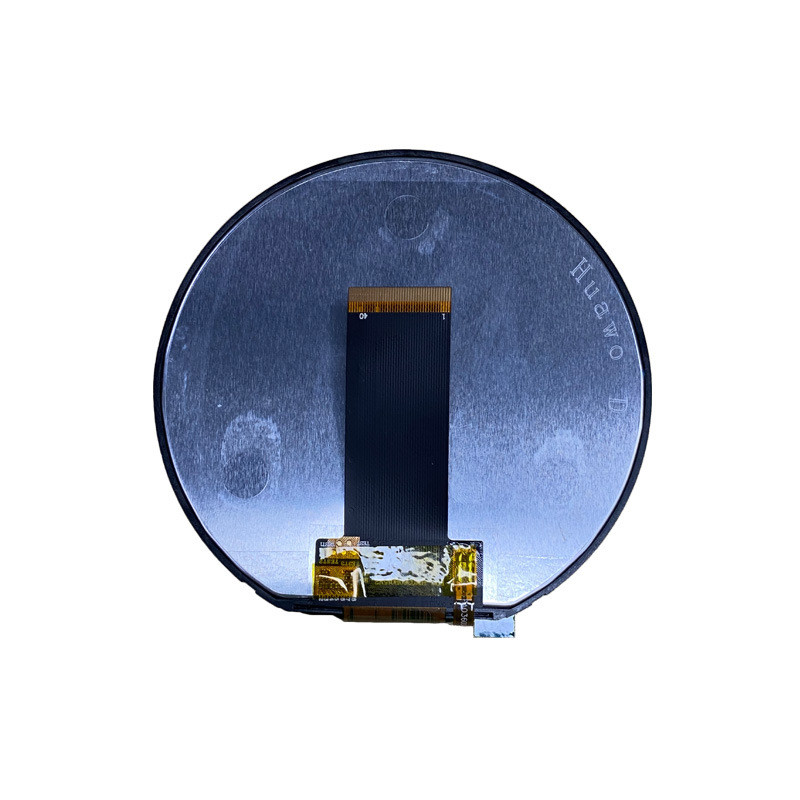

3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 0

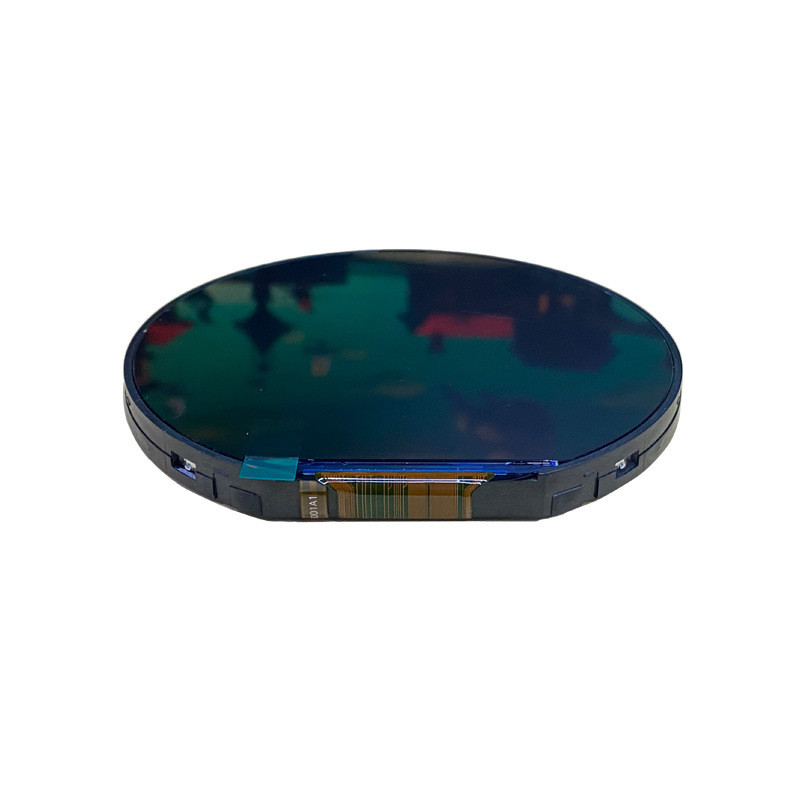

3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 1

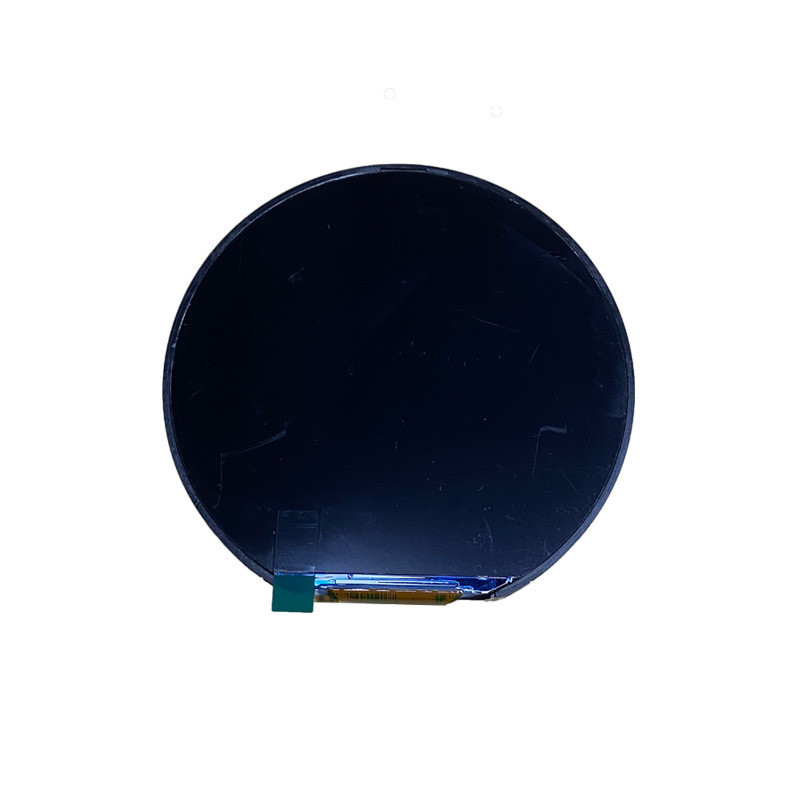

3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 2
C: Drawing



3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 3


D: TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 4



TFT structure  as below

3.6 Inch Round TFT Display LCD 544x506 RGB Interface 1000 CD/M2 5
