2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2

  • 2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2
  • 2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2
  • 2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2
  • 2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX028-30MB-A1
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Module Name Round TFT Display
Size 2.8" Resolution 480*480
Brightness 300cd/m2 Interface 30PINS MIPI
Drive IC ST7701SN View Angle Free View Angle
Leave a Message
Product Description

2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2

Detail  datasheet pls lowload from this link ESHX028-30MB-A1.pdf
A. Product Parameter

Part No: ESHX028-30MB-A1
Panel size 2.8 inch round TFT
LCD type IPS
Module Size 73.03X76.48*2.3MM
Display Area 70.128X70.128MM
Number of Dots 480*480
View angle ALL
Module Driver IC ST7701SN
CTP Driver IC
Interface Pins 30PINS MIPI
LED Numbers 4LEDS
Luminance 300CD/M2
Operating Temp -20~70
Storage Temp -30~80
with or without TP




B.Product Picture

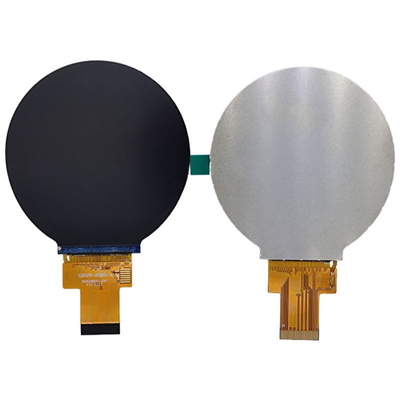

2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2 0

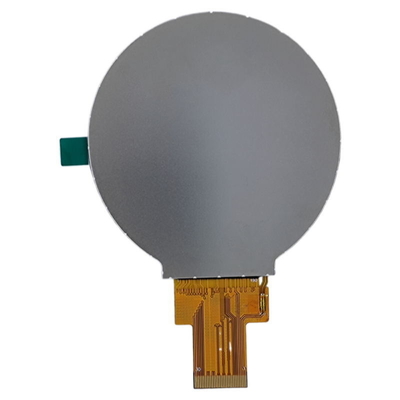

2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2 1

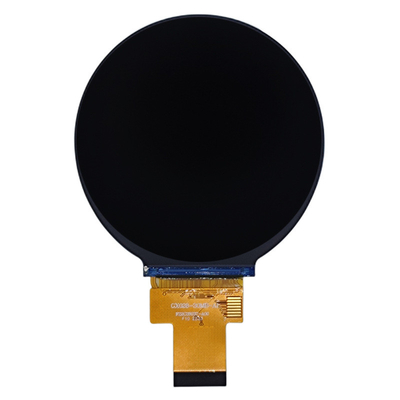

2.8 inch Round TFT Display module , 480x480 Resolution, 30 PINS MIPI interface,300CD/M2 2
